No part of this publication may be copied and/or published by photocopying or any other means whatsoever, without prior written permission from Stienen BE (www.stienen.com). We do not accept any liability for the contents of this manual and explicitly waive all implicit guarantees of merchantability or fitness for a certain use.
Please read all information and instructions carefully before using the product. Symbols mark warnings, important notes, tips, etc. in this manual. Stienen has compiled this manual with all due care. If you find any errors, please let us know. 1.1 Symbols and definitions Risk of injury by dangerous electric shock.
The EU has set up systems for the separate collection of waste electrical and electronic equipment and batteries (Directive 20212/19/EU). If you do not dispose of the device properly, you risk a fine. Electrical and electronic equipment must be collected separately at the end of its life. KLC-100-G-EN02000...

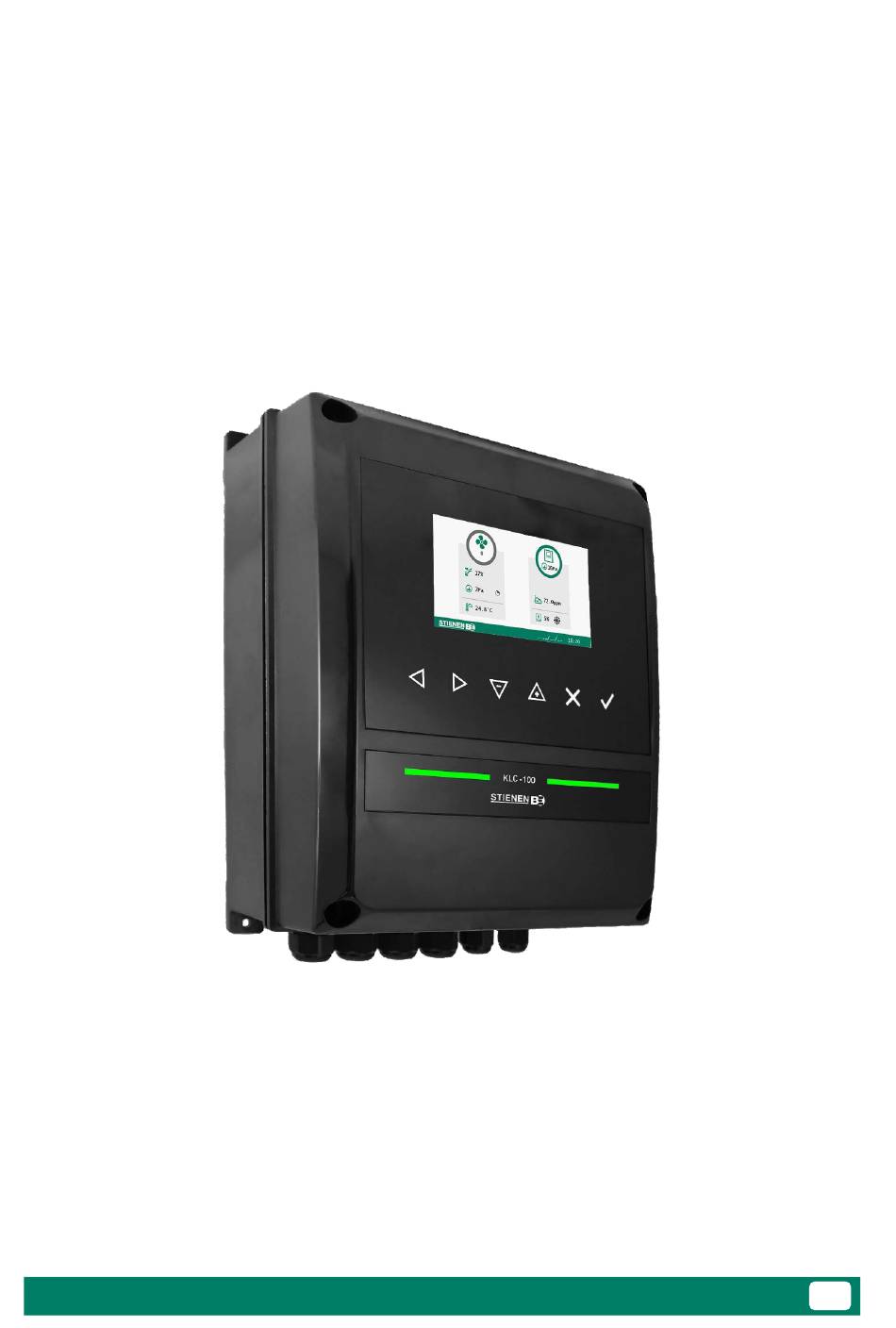

3. Operation Operation 3.1 Central control functions The KLC-100 measures and controls the central functions in the house: central air inlet, central exhaust, central heating and NH . The KLC-100 has two integrated differential pressure sensors for the central air channel and for a possible central air inlet on pressure.
USB memory key. 3.7 LED bar Green, constantly on no alarm Yellow, constantly on Alarm, alarm delay time not yet elapsed Red, constantly on alarm regularly flashing main alarm disabled irregularly flashing alarm temporarily disabled KLC-100-G-EN02000...
Info, date & time, device number, software Settings for central cooling version, activate controls, system settings access code Central ventilation Ammonia (NH Min./Max. ventilation, bandwidth and curve Ammonia measurements Central inlet valve Timer Ventilation based on inlet valves side wall Settings for the time switch KLC-100-G-EN02000...
Ventilation too high Ventilation too low Ventilation is 0% sensor 1 defective sensor 1 too high sensor 1 too low sensor 2 defective sensor 2 too high sensor 2 too low RH sensor defective RH too high RH too low KLC-100-G-EN02000...
To alarm overview Central cooling Outside temperature Central ventilation Pressure measurement (R2) Thermo-differential Central inlet valve Ammonia measurement Relative humidity 4.4 Central ventilation Central ventilation alarm Alarm pressure control central ventilation Current pressure (R1) Minimum alarm limit Maximum alarm limit KLC-100-G-EN02000...
Absolute alarm limit (relative to setpoint temperature) 4.8 Pressure measurement (R2) With a central air inlet valve based on pressure, the menu item Pressure measurement is omitted. Alarm pressure measurement Current pressure (R2) Minimum alarm limit Maximum alarm limit KLC-100-G-EN02000...
The temperature rise in the last minute is equal to or greater than the set temperature difference; The measured temperature is above the absolute limit. The thermo-differential alarm occurs only when there is a positive difference. 4.13 Relative humidity (RH) Alarm RH measurement Minimum alarm limit Maximum alarm limit KLC-100-G-EN02000...
Position your device so that the QR code appears in the app's viewfinder. Tap the notification to open the link associated with the QR code. Follow the instructions on your smartphone. Date and time Current date Current time KLC-100-G-EN02000...
Restarting measuring fans in rooms Set and actual pressure in central air channel 6.1 Frequency converters Frequency converters (Danfoss) Current frequency Current power consumption 6.2 Step control Ventilation controlled group Activated steps (relays) step control KLC-100-G-EN02000...
Ventilation percentage Valve position at setpoint ventilation (%) ..(breakpoints 1 thru 4) (breakpoints 1 thru 4) 7.2 Based on pressure Setpoint pressure and actual pressure across the central air inlet valve Valve position KLC-100-G-EN02000...
8. Central heating Central heating Switched heating (ON/OFF) Controlled heating (heating position in %) Current water temperature Minimum water temperature Heating status = ON Heating status = OFF Heating position in % Calculated water temperature Highest heat demand from room xx KLC-100-G-EN02000...
Temperature Cooling: = ON = OFF Cooling temperature setpoint Bandwidth Minimum pulse duration 'enabled' Maximum pulse duration 'enabled' Cooling OFF, if RH exceeds setpoint. (cycle time) When the cooling is turned off manually, the colour display changes to grey. KLC-100-G-EN02000...
Timer is in manual mode Timer is switched OFF at set times (100% ON) based on schedule manual xx = Number of periods (maximum 24) Period 1 ON Period 1 OFF ..Period 24 ON Period 24 OFF KLC-100-G-EN02000...
