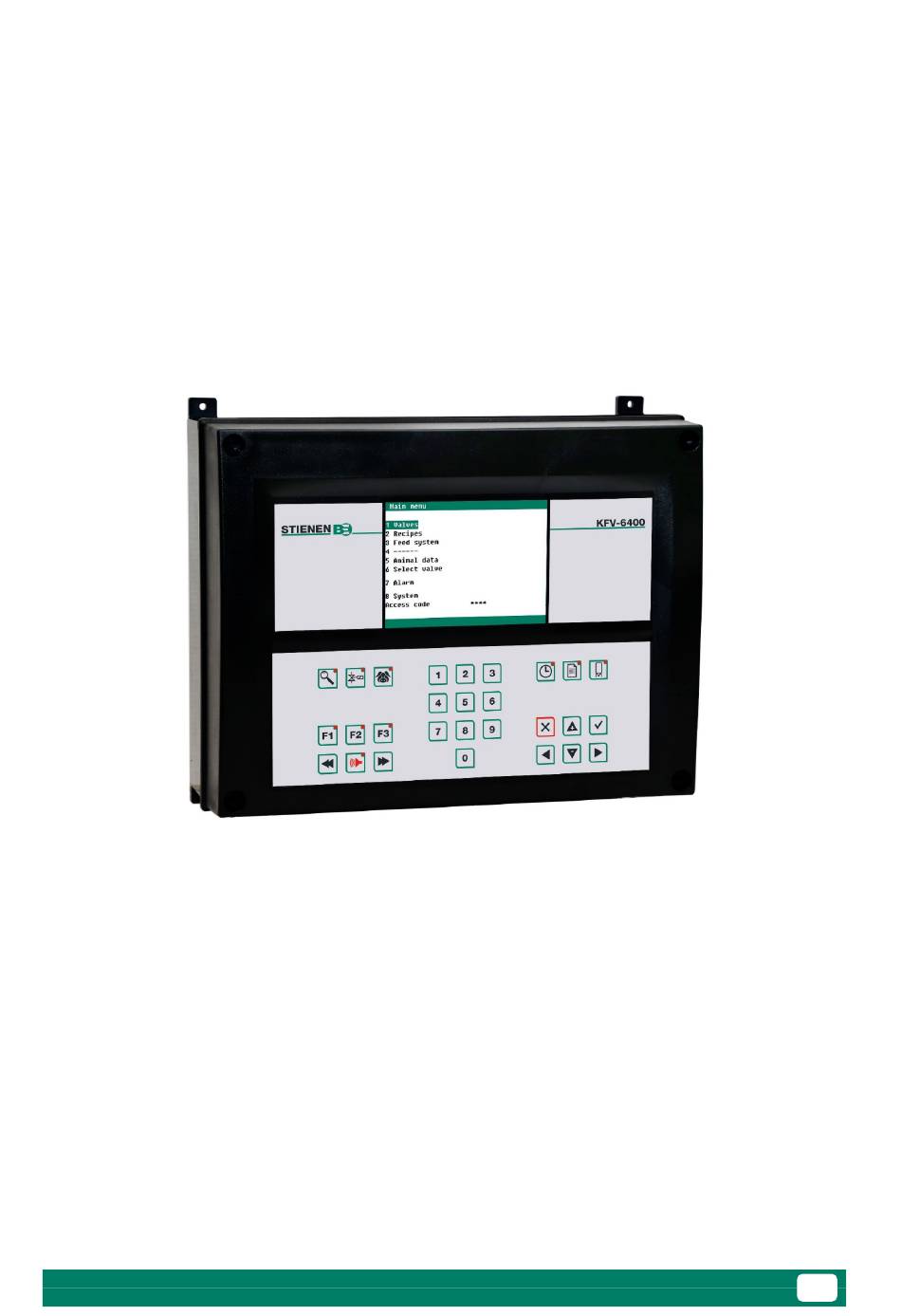

- Page 1 KFV-6400 DRY FEED COMPUTER FOR PIGS USER MANUAL KFV-6400-G-EN01541...
-
Page 2: Table Of Contents
8.8 Hammer mill ..........................27 8.9 Alarm weighing system........................28 Timers ..............................31 9.1 Setting periods ..........................31 9.2 Timer overview ..........................31 Animal data ............................32 10.1 General ............................32 10.2 Mutations and overviews ......................32 Selecting a valve............................. 34 KFV-6400-G-EN01541... - Page 3 No part of this publication may be copied and/or published by photocopying or any other means whatsoever, without prior written permission from Stienen BE (www.stienen.com). We do not accept any liability for the contents of this manual and explicitly waive all implicit guarantees of merchantability or fitness for a certain use.
-
Page 4: General Introduction
Please read all information and instructions carefully before using the product. Symbols mark warnings, important notes, tips, etc. in this manual. Stienen has compiled this manual with all due care. If you find any errors, please let us know. 1.1 Symbols and definitions Risk of injury by dangerous electric shock. -
Page 5: Safety Instructions And Warnings
The EU has set up systems for the separate collection of waste electrical and electronic equipment and batteries (Directive 20212/19/EU). If you do not dispose of the device properly, you risk a fine. Electrical and electronic equipment must be collected separately at the end of its life. KFV-6400-G-EN01541... -
Page 6: Operation
Every time a key is pressed, the screen lights up for a few seconds. In a dark pig house, settings and measurements are then clearly visible. Operate the keys with your fingertips and not with sharp objects, such as a pen or screwdriver. KFV-6400-G-EN01541... - Page 7 Selecting valve, see page 34. Shortcut to valve screen, see page 8. Shortcut to animal data, see page 32. Shortcut to timers, see page 31 Shortcut to dosage and recipes, see page 17. Shortcut to feed weighing system, see page 19. KFV-6400-G-EN01541...
-
Page 8: Programming Function Keys
30 minutes; the alarm LED will flash evenly. After 30 minutes, the main alarm automatically turns back on. If the alarm cause has not been eliminated, the alarm relay de- energizes again (alarm). No = delete alarm delay time. KFV-6400-G-EN01541... -
Page 9: Terminal Numbering
Optocoupler output (max. 35Vdc 30mA), e.g. kg-pulse output Open/close output n.a. 30-230Vac output n.a. 2-10V output n.a. Temperature sensor n.a. 0-10V input Analog input with a measurement range of 0-10V Digital input Contact and counter inputs, etc. Meteo station n.a. Pressure sensor n.a. KFV-6400-G-EN01541... -
Page 10: Main Menu And Access Code
You can set an access code (four digits) to prevent unauthorized persons from changing settings. Your installer can set up to six access codes for you. You can set a separate access code for the status screen. If you only set an access code for the status screen, it applies to all user screens. KFV-6400-G-EN01541... -
Page 11: Valves
(grams per animal) by entering a positive or negative number at Dosage correction. The entire curve can be increased or decreased by this value. A temporary correction of the curve is usually implemented if, for example due to illness, the feed intake should be temporarily adjusted. +00g = no correction. KFV-6400-G-EN01541... - Page 12 If the KFV-16 feed weigher has been installed and the calculated dosage is smaller than the Minimum portion size set on the KFV-16, dosing will not start and dosing by the KFV-6400 is immediately ready. Today The current feed amount transported to the selected valve so far.
-
Page 13: Starting A Feeding Cycle Manually
If feed supplements are used, they will be administered proportionately during the manual operation, unless: During portion = no • During period = no (see screens 1431 . . 1434) or • Feed supplements = off (see screen 14). • KFV-6400-G-EN01541... -
Page 14: Aborting A Feeding Cycle Manually
Change the Period action to abort (screen 32). The (manual) feeding session will be aborted. Turn the Fill Method back to on Do not forget this, otherwise it will not be fed. The hand is now back behind valve x. A new manual feeding cycle can be started, if required. KFV-6400-G-EN01541... -
Page 15: Status Valve
If you want to use the feed dosage curve that goes with the recipe, fill in yes at Dosage curve. If the dosage curve is on, the Dosage correction will be viewed and you can correct the dosage, if necessary. KFV-6400-G-EN01541... - Page 16 0 within the number of days set. This reduction will not start until Con. has become 000. Perc. The amount of the ingredient in the recipe, expressed as a percentage. Since the percentages shown in the Perc. column are rounded values, these can differ approx. 0.1% from the actual calculated percentages. KFV-6400-G-EN01541...
- Page 17 If an ingredient has been filled in at During ingredient and the ingredient is not part of the dosage or the ingredient has run out, no supplements will be added, not even if an alternative ingredient has been filled in. In case of supply alarm, the dispensers (adding feed supplements) do not stop. KFV-6400-G-EN01541...
- Page 18 The start time of the feeding period, see: Feed line x, page 22. Ready Time at which the calculated period dosage has been reached. The amount fed in grams per animal, appears only if management is activated. KFV-6400-G-EN01541...
- Page 19 2 will be 60 kg, etc. If, at the beginning of the feeding cycle, it is established that the amount to be fed cannot be achieved in the number of periods set, a Dosage too low alarm will be generated as early as at the start of the first feeding period. KFV-6400-G-EN01541...
-
Page 20: Recipes
Dosage (g/a) Dosage curve on. The daily amount of feed per animal is calculated from these curve settings depending on the animals’ age (day number). Ingredient x The dosage ratios of the various ingredients are set here (for each breakpoint). KFV-6400-G-EN01541... -
Page 21: Mix Recipe
Start day setting for the ingredient. Start day Enter the first day on which the alternative ingredient may be chosen when the original ingredient has run out here. KFV-6400-G-EN01541... -
Page 22: Feeding System
Mixer feed sensor (feed => mixer full). ← Current mixer status. ← Mixer alarm status, see also the alarm codes on page 36. ← Restart weigher (no, restart, abort). ← An alternative ingredient is fed instead of the original ingredient (see the corresponding recipe). KFV-16 KFV-6400-G-EN01541... -
Page 23: Alternative Ingredients
Filling in yes and clicking on the link (≥) deletes the alternative ingredients. Press the key to immediately return to the previous screen. 7.3 Filling Method Fill method = local Fill method = demand Fill method = manual KFV-6400-G-EN01541... - Page 24 The feed demand is set to no for all valves. clear The active period is aborted and all feed measurements are deleted. The feed weigher immediately breaks its cycle. Make sure that no feed is left in the feeding system in this situation. KFV-6400-G-EN01541...
-
Page 25: Feed Lines
Ready. The ready times for the valves listed will be filled. See also Partition period, page 15. Feed timers no = All feed demands are processed (24/7) Yes = Only a feed demand that is within the period set will be processed KFV-6400-G-EN01541... -
Page 26: Current Recipe
Partition period, page 15). In case of a manual feed cycle, the Dosage calculated text is followed by the symbol. Today The feed amount that has currently been transported to the valve stated. Status valve Current valve status: open or closed. KFV-6400-G-EN01541... -
Page 27: En Route
The active valves are listed under Valve. Segment The active segments for each valve are listed under Segments. This is followed by the Distance till ready. If this time is 0m00s, the valve will be removed from the overview. KFV-6400-G-EN01541... -
Page 28: Silos
If you do not fill in a sequence and a silo gets blocked, the Invalid silo alarm will be displayed. Always fill in the search order. This table is stored in the memory. KFV-6400-G-EN01541... -
Page 29: Silo Mix Remainder
Feeding from a blocked silo is not possible. You have to set an alternative ingredient (feed type) to continue feeding. The blocked status will be cancelled, if: the status is manually changed the status manually changed to free or empty. KFV-6400-G-EN01541... -
Page 30: Silo Filled
The supply auger start percentage is fixed at 40%. After the switch-on delay time has elapsed, the supply auger is controlled to 100%. 0% = supply auger off. Cur. status hammer mill The current hammer mill status. Hammer mill motor The current motor operation percentage and current power consumption. KFV-6400-G-EN01541... -
Page 31: Alarm Weighing System
PFB-35/70 KFV-16 Alarm If the alarm is switched off, the KFV-6400 will no longer respond to alarms from the feed weigher. The main alarm on the feed weigher is also switched off (the “alarm” LED on the feed weigher flashes). - Page 32 The KFV-6400 takes over control of the alarm key of the feed weigher, which basically means that you can no longer switch the alarm on the feed weigher on or off. You can only still do this on the KFV-6400 dry feed computer then.
- Page 33 Delay time of the minimum sensor. The delay time prevents the hammer mill from switching on and off each time the minimum sensor briefly sees no feed. Alarm status shows the alarm cause. For safety, always turn on all alarms. KFV-6400-G-EN01541...
-
Page 34: Timers
The times of timers 2 to 12 can be set in a similar manner. 9.2 Timer overview A graphic overview of the timers is displayed on the screen. Only the on/off times of the timers which have been activated are shown. KFV-6400-G-EN01541... -
Page 35: Animal Data
An overview of the daily mortality, the daily number of animals removed (out) and the daily number of animals (of the last 2 days and today) added (in) is shown. Overview of present animals Overview of the remaining number of animals (of the previous 2 days and today) is shown per day. KFV-6400-G-EN01541... - Page 36 The entry date is filled in automatically if New entry is set to Yes. New entry If Yes is entered for New entry: The table of lost animals will be erased; The entry date will be filled; Feed dosing will be started (if a feeding cycle is active). KFV-6400-G-EN01541...
-
Page 37: Selecting A Valve
The options are: Number, Name or Select valve; • Press • Select the relevant valve; • Press again to confirm your selection; the cursor will automatically go to the link ≥; • Press again. The data of the valve selected will appear on the display. • KFV-6400-G-EN01541... -
Page 38: Alarm
12.3 External alarms Switching the external alarms on / off. Your installer can change the names of the external alarms into any name of your choice (max. 15 characters). KFV-6400-G-EN01541... -
Page 39: Communication Alarm
12. Alarm 12.4 Communication alarm Enabling and disabling the communication alarm. A communication alarm can only occur with a KFV-6400 set as the main station. If the main station does not receive data from a device in the same communication loop, a communication alarm occurs. - Page 40 Capacity silo too low KFV-16: The calculated dosage is greater than the maximum amount of feed that fits in the silo. Adjust the amount to be dosed. Compressor The compressor pressure is too low. Check that the compressor is on. KFV-6400-G-EN01541...
- Page 41 (i.e. must go up). Check the mixing percentages. Invalid module 0 Faulty bottom PCB, contact the supplier of the KFV-6400. Invalid period x The times set for a timer must be ascending and the difference between Begin and End must be at least 1 minute.
- Page 42 Never forget to switch the alarm back on when you have switched it off for troubleshooting. Preferably use the off function for troubleshooting. Installation errors such as Output already assigned, Faulty output type, Input already assigned, etc. have to be solved before putting the system into operation. KFV-6400-G-EN01541...
-
Page 43: System
13. System System 13.1 General Device Device type name, KFV-6400. Type Device type number: 185 = KFV-6400. Software version Software program version number. Software date Software program date. ENG, NLD, DEU, FRA, SPA Set the interface language for the screens here. Set the language to ENG for this manual. -
Page 44: Remote Control
= when changing a setting, the cursor is placed on the digit which is the furthest to the left. No = when changing a setting, the cursor is placed on the digit which is the furthest to the right. KFV-6400-G-EN01541...
