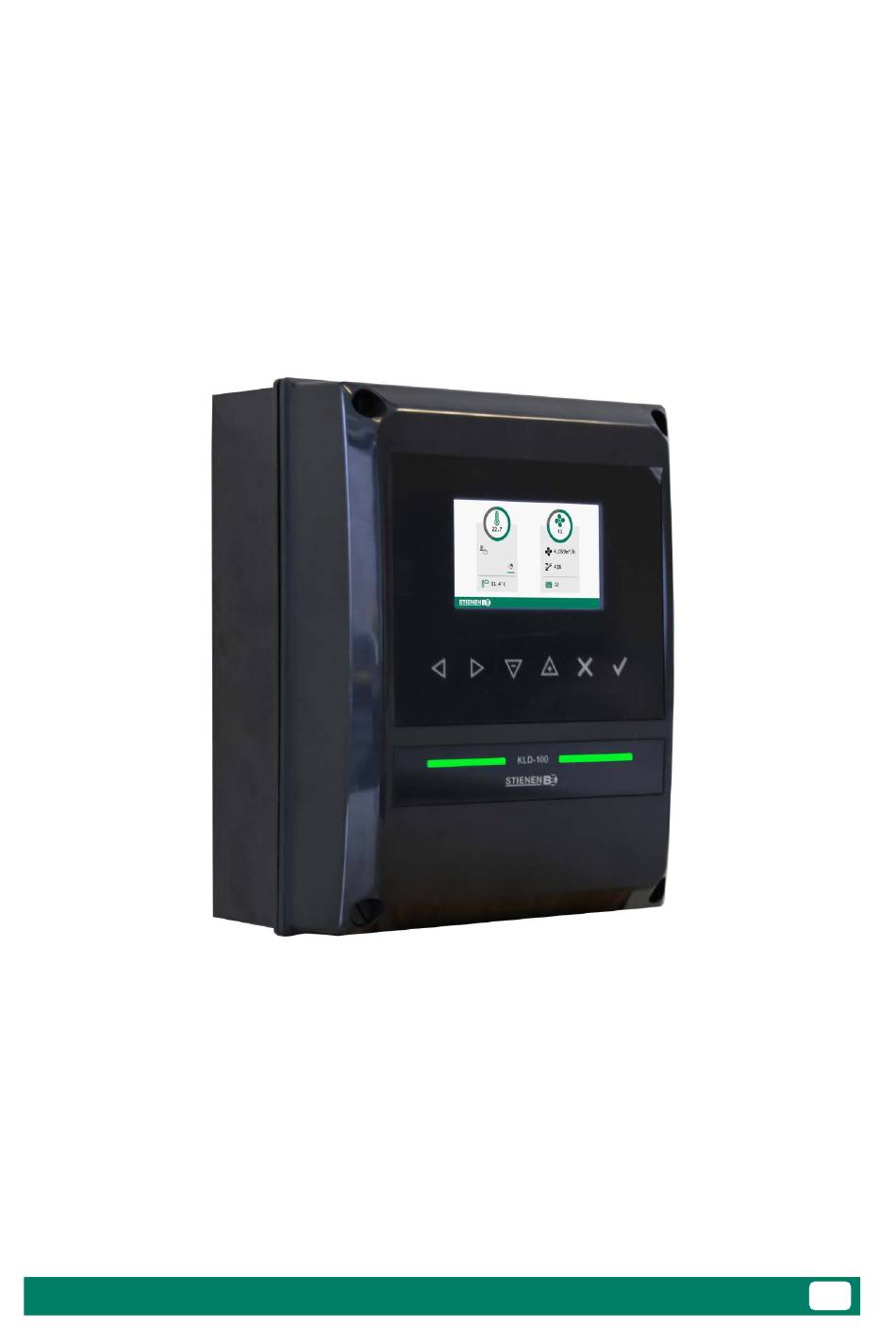

- Page 1 KLD-100 ROOM COMPUTER KLD-100 USER MANUAL KLD-100-G-EN02000...
-
Page 2: Table Of Contents
No part of this publication may be copied and/or published by photocopying or any other means whatsoever, without prior written permission from Stienen BE (www.stienen.com). We do not accept any liability for the contents of this manual and explicitly waive all implicit guarantees of merchantability or fitness for a certain use. -
Page 3: General Introduction
Please read all information and instructions carefully before using the product. Symbols mark warnings, important notes, tips, etc. in this manual. Stienen has compiled this manual with all due care. If you find any errors, please let us know. 1.1 Symbols and definitions Risk of injury by dangerous electric shock. -
Page 4: Safety Instructions And Warnings
The EU has set up systems for the separate collection of waste electrical and electronic equipment and batteries (Directive 20212/19/EU). If you do not dispose of the device properly, you risk a fine. Electrical and electronic equipment must be collected separately at the end of its life. KLD-100-G-EN02000... -
Page 5: Operation
Outside temperature Room ventilation in m Day number Air inlet position 3.2 Status bar No alarm Alarm Room is out of operation Room number xx The date and time appear in the status bar next to the room number. KLD-100-G-EN02000... -
Page 6: Changing Setting / Pop-Up Window
(Enter key) 3 times in quick succession. Clearing screen number: press again 3 times in quick succession. Insert a USB stick into the USB port of the LCCPU board. Press the keys successively to save the screenshot in USB memory key. KLD-100-G-EN02000... -
Page 7: Led Bar
Info, date & time, device number, Settings room heating, floor heating and software version, activate controls, inlet heating system settings access code Device Cooling Setting the device in/out operation, curve Cooling settings day numbers Ventilation Timer Min./Max. ventilation, bandwidth and Timer settings curve KLD-100-G-EN02000... -
Page 8: Alarm
Ventilation too high Ventilation too low Ventilation is 0% Device address is missing Wrong bottom PCB Module 0 not found AQC valve capacity unknown or measuring fan defective. Jumper J1/J2 of the LCCPU board are NOT in top position. KLD-100-G-EN02000... -
Page 9: Temperature Alarms
If the alarm is disabled, the icon colour changes to grey. Outside temperature alarm Outside temperature alarm Outside temperature alarm enabled Outside temperature alarm disabled Current outside temperature No outside temperature received via the Outside temperature sensor defective communication loop. KLD-100-G-EN02000... -
Page 10: Ventilation Alarm
The measured temperature is above the absolute limit. The thermo differential alarm is generated only if there is a positive difference. 4.4 Ventilation alarm Ventilation alarm The minimum and maximum alarm limits are determined from the calculated ventilation. KLD-100-G-EN02000... -
Page 11: Heating Alarms
Maximum alarm limit Absolute alarm limit Temperature above absolute Temperature too low Temperature too high alarm limit The minimum and maximum alarm limits are relative to the setpoint floor temperature. If the alarm is disabled, the screen colour changes to grey. KLD-100-G-EN02000... -
Page 12: System
1. Open the QR code app. 2. Position your device so that the QR code appears in the app's viewfinder. 3. Tap the notification to open the link associated with the QR code. Follow the instructions on your smartphone. Date and time Date Time KLD-100-G-EN02000... -
Page 13: Device
Room heating = adjustable (does not affect ventilation) 6.2 Curve (day numbers) The day numbers apply to all curves. Current day number Day number of breakpoints 1 to 7 Number of breakpoints The day numbers apply to all curves KLD-100-G-EN02000... -
Page 14: Ventilation
Calculated minimum ventilation from curve Calculated maximum ventilation from curve room temperature Curve . . . breakpoints 1 to 7 Minimum ventilation at Maximum ventilation at ..points 1 to 7 breakpoints 1 to 7 break KLD-100-G-EN02000... -
Page 15: Air Inlet Valve
Thanks to the characteristic curve, a better relation between valve position and air flow can be obtained. Inlet valve position Average ventilation . . . Ventilation percentage . . . Air inlet position at ventilation (breakpoints 1 to 4) percentage setpoint (breakpoints 1 to 4) KLD-100-G-EN02000... -
Page 16: Heating
(breakpoints 1 to 7) Current day number in curve Calculated setpoint room heating temperature. When the heating is turned off manually, the screen colour changes to grey. Inlet heating Current temperature ( Current heating position ( Controlled heating On/Off heating KLD-100-G-EN02000... - Page 17 Maximum Fire Strength Curve Curve Floor heating temperature . . . (breakpoints 1 to 7) Current day number in curve Calculated setpoint floor heating temperature When the floor heating is switched off manually, the screen colour changes to grey. KLD-100-G-EN02000...
-
Page 18: Cooling
Maximum pulse duration ‘enabled’ (cycle time) Curve Curve . . . Cooling temperature (breakpoints 1 to 7) Current day number in curve Calculated setpoint cooling temperature When the cooling is switched off manually, the icon colour changes to grey. KLD-100-G-EN02000... -
Page 19: Timer
Timer switches on automatically Timer in manual mode (100% on) Timer switched off at the set times On schedule, manual, on/off Number of periods (max. 24) Period 1 On Period 1 Off ..Period 24 On Period 24 Off KLD-100-G-EN02000...
