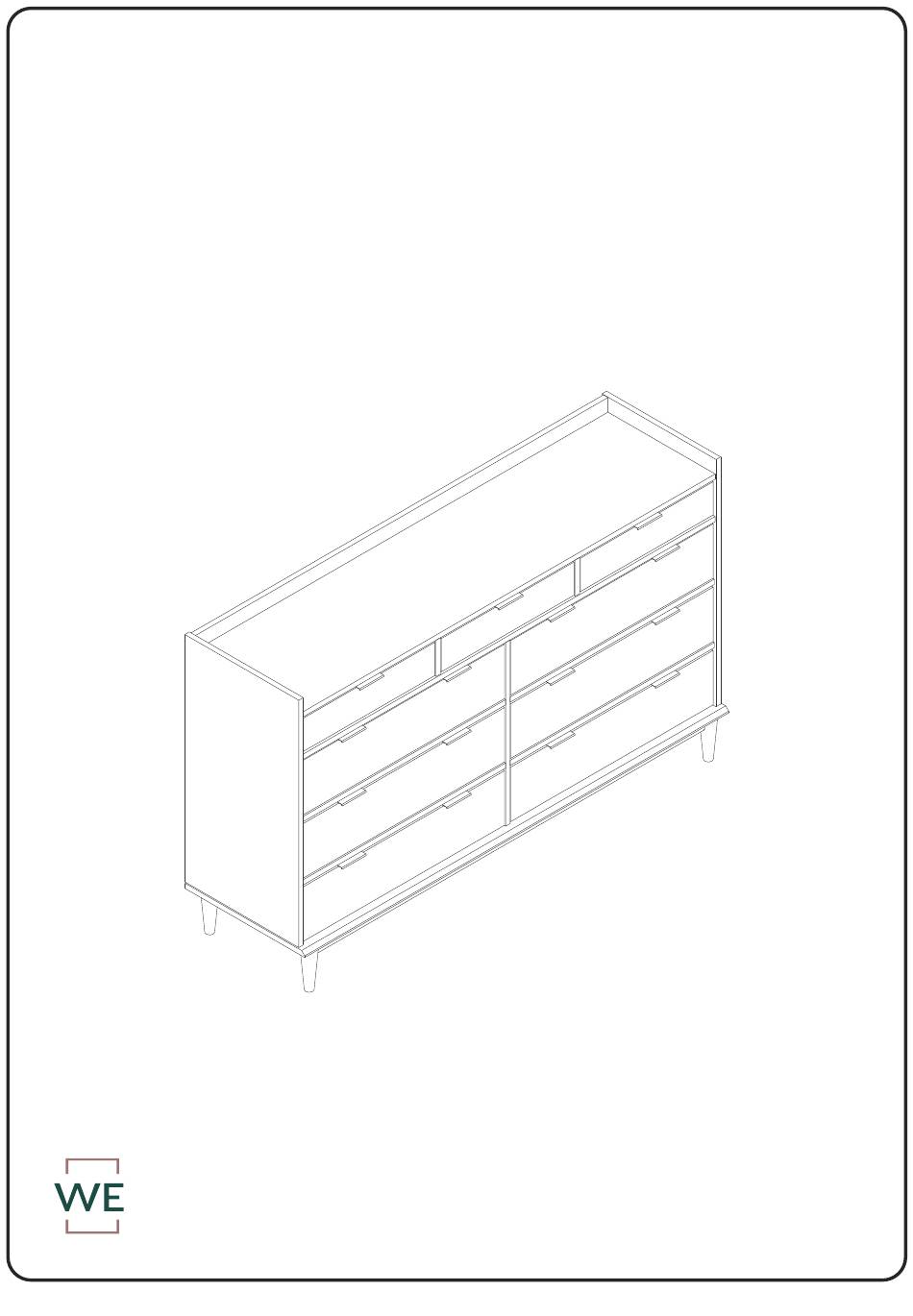

- Page 1 Item: BR9DRLEEDR-T Assembly Instructions Please visit our website for the most current instructions, assembly tips, to report damage or request parts. www.walkeredison.com Revised 08/2024 - V2 Copyright © 2018, by Walker Edison Furniture Co., LLC, All rights reserved.
-
Page 2: General Assembly Guidelines
General Assembly Guidelines Ensure that all parts and hardware are available before beginning assembly. Follow each step carefully to ensure the proper assembly of this product. III. Two people are recommended for ease in the assembly of this product. IV. The three main types of hardware used to assemble this product are wood dowels, screws and bolts. -
Page 3: Parts List
Parts List The side drawer with WARNING LABEL, should be mou ted in highest drawer. Description Description Description Part # Part # Part # Top panel 0 pc 0 pcs 0 pc Drawer back Central foot Left side panel 0 pc 0 pc 0 pc Front rail... -
Page 4: Hardware List
Hardware List 84 pcs Ø8*30mm Wood dowel 18 pcs Ø8*40mm Wood dowel 54 pcs Ø10*20mm Wood dowel 30 pcs Ø3,0*12mm Screw 05 pcs Ø3,5*20mm Screw 54 pcs Screw Ø4,0*25mm 55 pcs Ø4,0*30mm Screw 25 pcs Ø4,0*40mm Screw 08 pcs Ø4,5*50mm Screw 15 pcs Handle... - Page 5 Step 1 Attention to the dowel size: Ø10*20mm Insert wood dowel (C) into part 17. Ø10*20mm Step 2 Insert wood dowel (A) into parts 01, 02, 03, 14, 15, 16, 18, 19, 34, 35, 36, 46 and 47. Ø8*30mm...
- Page 6 Step 3 Secure parts 17 to part 02, 03, 16 and 18 with screw (F) and phillips screwdriver. Ø4,0*25mm...
- Page 7 Step 4 1 - Ensure cam bolt is installed straight and not at an angle. 2 - Tighten cam bolt until shoulder on cam bolt is flush. Do not over-tighten. Screw cam bolts (K) into parts 01, 02, 03, 08 and 16 with a phillips screwdriver.
- Page 8 Step 5 Secure part 19 to part 01 with screw (G) and phillips screwdriver. Ø4,0*30mm Step 6 Align the opening in cam lock to the cam bolt and press into opening. Using a screwdriver, rotate the cam lock until it engages with the cam bolt and locks in place (anywhere between 90 - 180 degrees).
- Page 9 Step 7 Secure part 15 to part 16 with screw (H) Ø4,0*40mm and phillips screwdriver in the pre holes. Step 8 Secure part 15 to part 18 with screw (H) and phillips screwdriver Ø4,0*40mm...
- Page 10 Step 9 Secure part 14 to part 16. Insert cam locks (L) into part 14, and tighten with a phillips screwdriver. Ø15*11mm Step 10 Secure parts 01, 14, 15 and 19 to part 02. Insert cam locks (L) into parts 01, 14, 15, 19 and tighten with a phillips screwdriver. Ø15*11mm P.10...
- Page 11 Step 11 Secure parts 01, 14, 15 and 19 to part 03. Insert cam locks (L) into parts 01, 14, 15, 19 and tighten with a phillips screwdriver. Ø15*11mm Step 12 Ø7,0*50mm Attach part 22 to part 04 with bolt (P) and hex key (Q). P.11...
- Page 12 Step 13 Secure part 04 to parts 02, 03 and 16 with screw (H) and phillips Ø4,0*40mm screwdriver. Step 14 Secure part 34 to parts 36, with screw (I) and phillips screwdriver. Ø4,5*50mm P.12...
- Page 13 Step 15 Secure part 36 to part 35, with screw (I) and screwdriver. Ø4,5*50mm Step 16 Secure part 36 to part 35, with screw (I) and screwdriver. Ø4,5*50mm P.13...
- Page 14 Step 17 Secure parts 34 and 35 to part 04 with screw (G) and phillips screwdriver. Ø4,0*40mm Step 18 Secure back panel 21 to parts 02 and 03 as shown above with Ø3,5*20mm screw (E) and phillips screwdriver. Secure back panel 21 to part 16 with screw (G) and phillips screwdriver.
- Page 15 Step 19 Name and address of the supplier and date of production Secure back panel up 20 as Ø8,0*8mm shown above with nails (R) and hammer. Step 20 Secure part 05 and 06 to part 08. Secure part 05 and 07 to part 08. Insert cam locks (L) into parts 05, 06, 07 and tighten with a phillips screwdriver.
- Page 16 Step 21 Insert parts 09 and 10 between parts 05, 06 and 07. Secure part 10 with screw (G) and phillips screwdriver. Ø4,0*30mm Step 22 Ø3,0*12mm Secure handle (J) with screw (D) and phillips screwdriver, in the pre-drilled holes on the drawer front 08. P.16...
- Page 17 Step 23 Secure parts 46 and 47 to part 23 with screw (G) and phillips screwdriver. Insert parts 48 and 45 between parts 46 and 47. Secure part 45 with screw (G) and phillips screwdriver. Ø4,0*30mm Step 24 Ø3,0*12mm Secure handle (J) with screw (D) and phillips screwdriver in the pre-drilled holes on the drawer front 23.
- Page 18 Step 25 Ø8*30mm Insert wood dowel (A) into part 17 to be the stop of the drawer. Step 26 The assembled drawer with this warning must be placed on top of the unit. Insert wood dowel (B) on the inside of all drawers, with the drawer inside the unit, after having passed the wood dowel that is in the drawer slide.
- Page 19 Step 27 WARNING Serious or fatal injuries can occur from furniture tipping over. To prevent the furniture from tipping over we recommend that it is permanently fixed to the wall. Wall anchor and hardware are included with this product. Please make sure hardware is suitable for your walls before installing, as differente wall materials may require different types of anchors.
- Page 20 Step 28 Assembly Complete! P.20...
