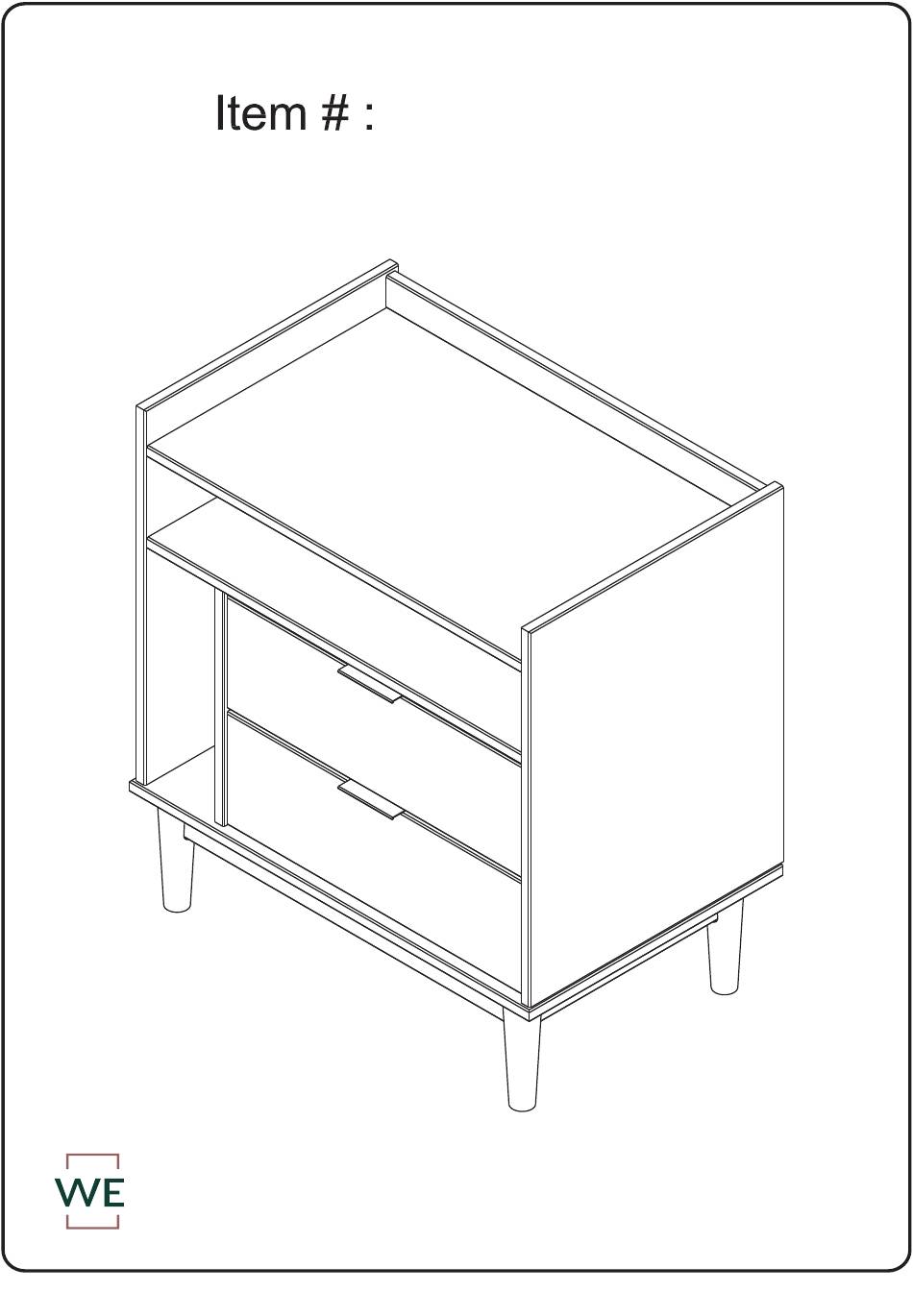

- Page 1 BR2DRLEENS Assembly Instructions Please visit our website for the most current instructions, assembly tips, to report damage or request parts. www.walkeredison.com Revised 11/2021 Copyright © 2018, by Walker Edison Furniture Co., LLC, All rights reserved.
-
Page 2: General Assembly Guidelines
General Assembly Guidelines Ensure that all parts and hardware are available before beginning assembly. Follow each step carefully to ensure the proper assembly of this product. III. Two people are recommended for ease in the assembly of this product. The three main types of hardware used to assemble this product are wood dowels, screws and bolts. -
Page 3: Parts List
Parts List Description Description Part# Part# Bottom side crossbeam Top panel 0 pcs 0 pcs Base panel 01 pcs 0 pcs Drawer runner 01 pcs Right side panel 01 pcs Back Panel 0 pcs Left side panel 0 pcs Drawer Right Side 0 pcs 01 pcs Middle panel... -
Page 4: Hardware List
Hardware List Ø8*20mm Wooden dowel 08 pcs Ø8*30mm Wooden dowel 46 pcs Screw 04 pcs Ø3,0*12mm Ø4,0*25mm Screw 08 pcs Ø4,0*30mm Screw 45 pcs Ø4,0*40mm Screw 14 pcs Screw 04 pcs Ø7,0*70mm Hex Key 01 pc Glue 01 pc Handle 02 pcs Plastic cap 02 pcs... - Page 5 Step 1 Ø8*20mm Insert ooden dowel ( ) and glue (I) into part ( Please assemble on Ø8*30mm a clean soft surface Insert ooden dowel ( ) B and glue (I) into to avoid damage. part (1), (3), (4), (5), (8), (9), (19), and (20). Step 2 Secure part (1) and (8) to part (3), attach part (1) to part (3) with screw (E) Ø4,0*30mm...
- Page 6 Step 3 Secure part (1) and (8) to part (4), attach part (1) to part (4) with screw (E) and screwdriver (not included) Ø4,0*30mm Step 4 Drawers can be fitted left hand or right hand. Assembly instruction shows drawers in the right side Secure part ( ) to part ( ), with screw ( ) and screwdriver (not included).
- Page 7 Step 5 Secure part ( ) to part ( s 16 ), with screw ( ) and screwdriver (not included). Ø4,0*40mm Step 6 Secure part ( ) to part ( s 16 ), with screw ( ) and screwdriver (not included). Ø4,0*40mm Step 7 Secure part (10) to parts (16),...
- Page 8 Step 8 Ø 7,0 7 * 0mm Secure part (2) to part (16) with screw (G) and hex key (H) Step 9 Please assemble on a clean soft surface to avoid damage. Secure part ( ) to part ( ), 3 (4) and (5) with screw ( ) and screwdriver (not included).
- Page 9 Step 10 Secure part s (9) and (10) to part (2) with screw (E) and screwdriver (not included). Ø4,0*30mm Step 11 Secure part ( ) to part ( ) with screw ( ) and screwdriver (not included). Ø4,0*30mm...
- Page 10 Step 12 Secure part ( s 13 ) to part ( ) and ( ) with screw (D) and screwdriver (not included). Ø4,0*25mm Step 13 Insert ooden dowel ( ) into part ( to be the stop of the drawer. Ø8*30mm P.10...
- Page 11 Step 14 Secure part (8) to part (3) and (4) with screw (E) and screwdriver (not included). Ø4,0*30mm Step 15 Name and address of the supplier and date of production. Secure back panel (1 ) 4 as shown at above view to body with nails ( ) nd hammer (not included).
- Page 12 Step 16 Secure part (20) and (19) to part (6) with screw (E) and screwdriver (not included). Insert part (23) and (21) between parts (19) and (20). Secure part (21) with screw (E) and screwdriver (not included). Ø4,0*30mm Step 17 Ø3,0*12mm Secure handle (J) with screw (C) and screwdriver (not included), in the pre holes on the drawer front.
- Page 13 Step 18 Drawer Stop Make sure dowel is flush with panel. Insert wood dowel ( ) on the inside of all drawers while drawer is inside the unit after having passed the dowel added the drawer runner. Ø8*30mm Step 19 There are colors options for the caps, choose the cap according to the color...
- Page 14 Step 20 There are colors options for the slaps , choose the slap according to the color of your item. Insert the slap hole M ( ) into the niche Step 21 Assembly Complete! P.14...
