Phoenix Gold ZD Series Manual
Plug & play 2-way speaker upgrade kit
Hide thumbs
Also See for ZD Series:
- Manual (13 pages) ,
- Quick start manual (8 pages) ,
- User manual (8 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Phoenix Gold ZD Series
Summary of Contents for Phoenix Gold ZD Series

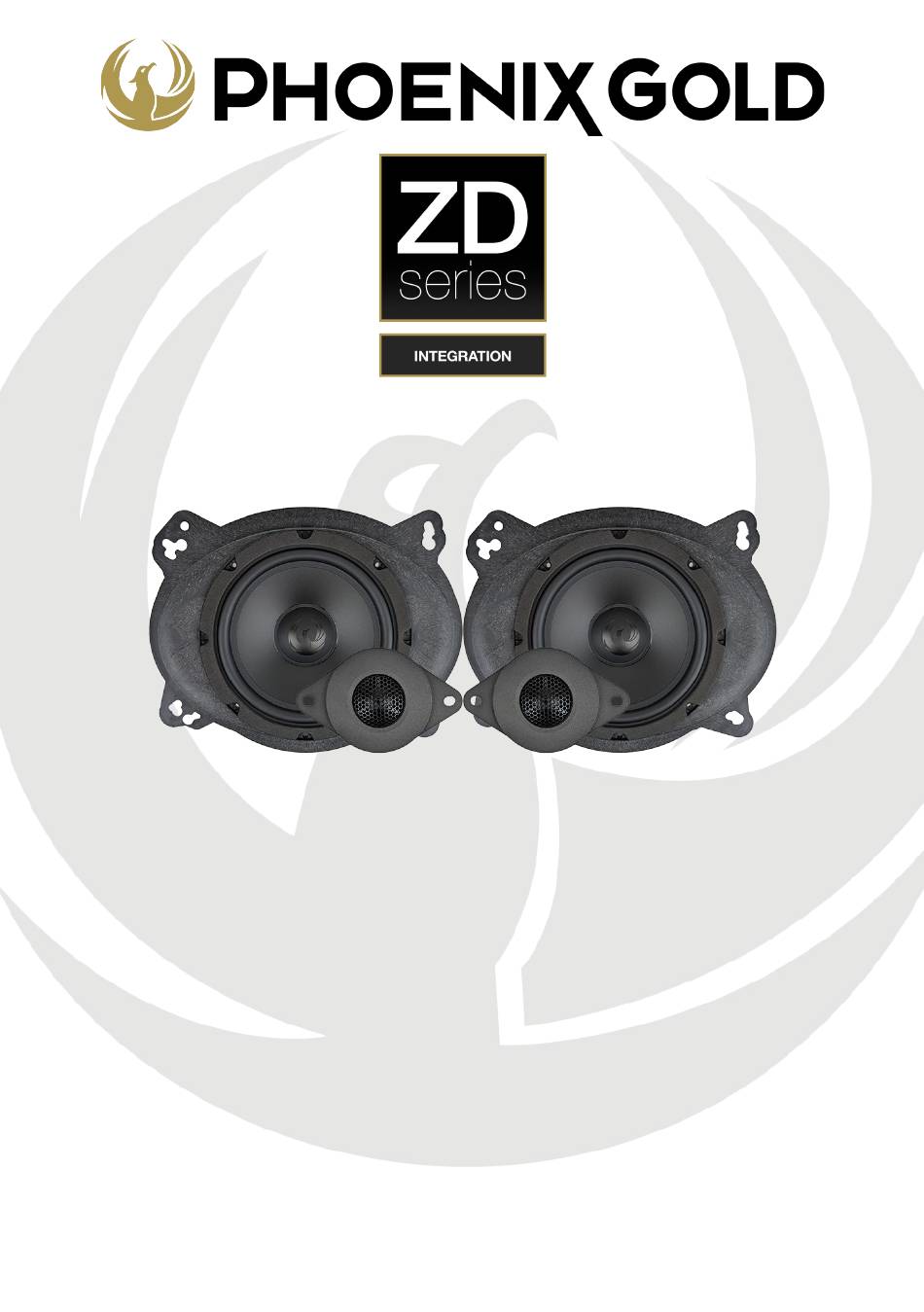

- Page 1 ZDSKSU1 Plug & Play 2-Way Speaker Upgrade Kit 160W MAX POWER 80W RMS...
- Page 2 2x Speakers 2x Adapter Rings 2x Tweeters 2x Tweeter Adapters 2x Bottom Plates 2x Speaker Harness 2x Tweeter Harness 2x ZZF-LP4000 2x ZZF-HP4000-6...
- Page 3 Quick Start Guide Screw the speaker into the speaker adapter. Connect the ZZF-LP4000 filter to the speaker. Connect the speaker connector to the ZZF-LP4000 filter.
- Page 4 Quick Start Guide Put the tweeter into the tweeter adapter. Attach the bottom plate to the back of the tweeter adapter. Connect the ZZF-HP4000-6 filter to the tweeter. Connect the tweeter harness to ZZF-HP4000-6 filter.
-
Page 5: Specifications
Specifications Speaker Type: 2-Way Speaker Kit Speaker Size: 6.5” (165mm) / 1” (25mm) Frequency Response: 60Hz - 20kHz Power Handling (RMS): Power Handling (MAX): 160W Impedance: 4Ω Sensitivity: 89dB (1W/1m) 62Hz Qts: 0.593 Crossover: Inline Crossovers 1” (25mm) Voice Coil Polypropylene cone with rubber surround... - Page 6 Fitment List Make Model Year Fitment Subaru Crosstrek 2022 → (GU) Front Doors Subaru Forester 2014 - 2018 (SJ) Front Doors See the latest updated compatibility list in the PG ZD Fitment List...
- Page 7 Phoenix Gold Product Warranty LIMITED WARRANTY ON SPEAKERS Phoenix Gold warrants this product to be free of defects in materials and workmanship for a period of one (1) years from the original date of purchase. This warranty is not transferable and applies only to the original purchaser from an authorized Phoenix Gold dealer.
