Phoenix Gold ZD Series Quick Start Manual

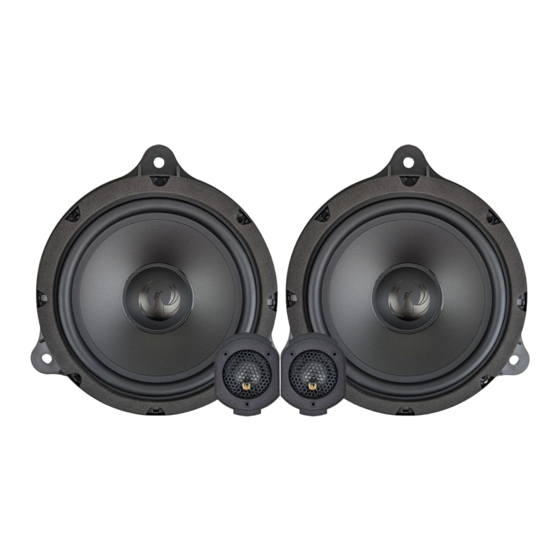

Plug & play 2-way speaker upgrade kit
Hide thumbs Also See for ZD Series:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
ZDSKR1
Plug & Play 2-Way Speaker Upgrade Kit
150W MAX POWER
75W RMS

Advertisement

loading
Need help?

Need help?

Do you have a question about the ZD Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Phoenix Gold ZD Series

Summary of Contents for Phoenix Gold ZD Series

  • Page 1 ZDSKR1 Plug & Play 2-Way Speaker Upgrade Kit 150W MAX POWER 75W RMS...
  • Page 2 2x Speakers 2x Adapter Rings 2x Tweeters 2x Tweeter Adapters 2x Bottom Plates 2x Speaker Harness 2x Tweeter Harness 2x ZZF-LP4000 2x ZZF-HP5000-6...
  • Page 3 Quick Start Guide Screw the speaker into the speaker adapter. Connect the ZZF-LP4000 filter to the speaker. Connect the speaker connector to the ZZF-LP4000 filter.
  • Page 4 Quick Start Guide Put the tweeter into the tweeter adapter. Attach the bottom plate to the back of the tweeter adapter. Connect the ZZF-HP5000-6 filter to the tweeter. Connect the tweeter harness to the ZZF-HP5000-6 filter.

  • Page 5: Specifications

    Specifications Speaker Type: 2-Way Speaker Kit Speaker Size: 6.5” (165mm) / 0.78” Frequency Response: 60Hz - 20kHz Power Handling (RMS): Power Handling (MAX): 150W Impedance: 4Ω Sensitivity: 89dB (1W/1m) 62Hz Qts: 0.593 Crossover: Inline Crossovers 1” (25mm) Voice Coil Polypropylene cone with rubber surround...
  • Page 6 Fitment List Make Model Year Fitment Renault Captur 2013 - 2017 (J87) Front Doors Renault Captur 2017 - 2019 (J87) (Facelift) Front Doors Renault Captur 2019 - 2024 (J5) Front Doors Renault Captur 2024 → (J5) (Facelift) Front Doors Renault Clio 2012 - 2019 (IV) Front Doors...
  • Page 7 Fitment List Make Model Year Fitment Renault Trafic 2014 - 2019 (X82) Front Doors Renault Trafic 2019 → (X82) (Facelift) Front Doors Renault Twingo 2014 - 2019 (III) Front Doors Renault Twingo 2019 → (III) (Facelift) Front Doors Renault 2012 - 2020 (I) Front Doors Renault 2020...
  • Page 8 Phoenix Gold Product Warranty LIMITED WARRANTY ON SPEAKERS Phoenix Gold warrants this product to be free of defects in materials and workmanship for a period of one (1) years from the original date of purchase. This warranty is not transferable and applies only to the original purchaser from an authorized Phoenix Gold dealer.

This manual is also suitable for:

Zdskr1
