Phoenix Gold ZD Series Manual
Plug & play 2-way speaker upgrade kit
Hide thumbs
Also See for ZD Series:
- Manual (13 pages) ,
- Quick start manual (8 pages) ,
- User manual (8 pages)
Advertisement
Quick Links
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Phoenix Gold ZD Series
Summary of Contents for Phoenix Gold ZD Series

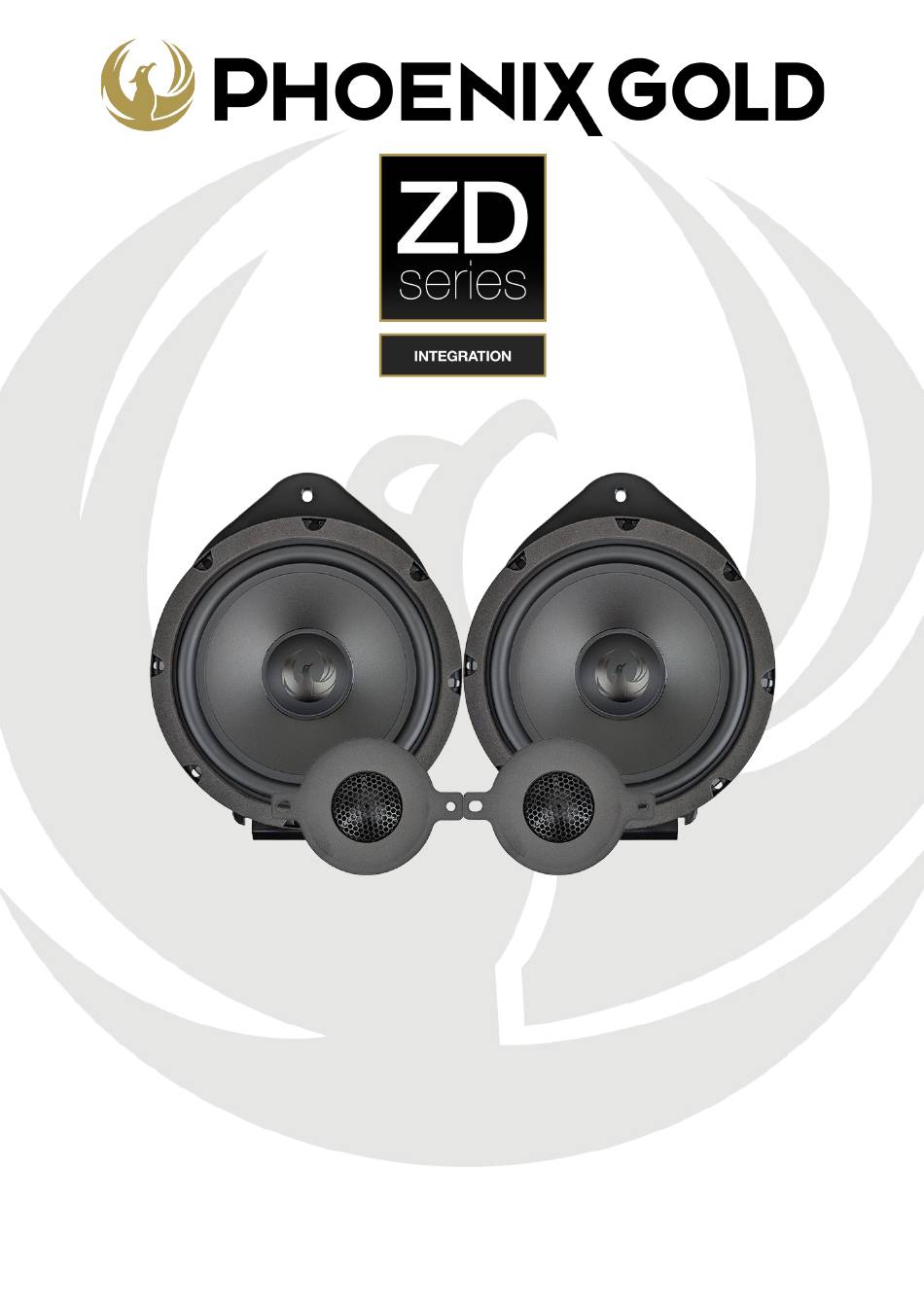

- Page 1 ZDSKO1 Plug & Play 2-Way Speaker Upgrade Kit 160W MAX POWER 80W RMS...
- Page 2 2x Speakers 2x Adapter Rings 2x Tweeters 2x Tweeter Adapters 2x Bottom Plates 2x Speaker Harness 2x Tweeter Harness 2x ZZF-LP4000 2x ZZF-HP4000-6...
- Page 3 1x Fast Glue 2x PG Badges...
- Page 4 Quick Start Guide Screw the speaker into the speaker adapter. Connect the ZZF-LP4000 filter to the speaker. Connect the speaker connector to the ZZF-LP4000 filter.
- Page 5 Quick Start Guide Put the tweeter into the tweeter adapter. *If the vehicle does not use the tweeter adapter, then use the fast glue to mount the tweeter in place instead. Attach the bottom plate to the back of the tweeter adapter. Connect the ZZF-HP4000-6 filter to the tweeter.
-
Page 6: Specifications
Specifications Speaker Type: 2-Way Speaker Kit Speaker Size: 6.5” (165mm) / 1” (25mm) Frequency Response: 60Hz - 20kHz Power Handling (RMS): Power Handling (MAX): 160W Impedance: 4Ω Sensitivity: 89dB (1W/1m) 62Hz Qts: 0.593 Crossover: Inline Crossovers 1” (25mm) Voice Coil Polypropylene cone with rubber surround... - Page 7 Fitment List Make Model Year Fitment Sound System: 6.5” OEM Speaker, None Buick Envision 2014 - 2019 (I) Front Doors BOSE Sound System 6.5” OEM Speaker, None Buick Envision 2019 - 2021 (I) (Facelift) Front Doors BOSE Sound System Chevrolet Camaro 2010 - 2015 (V) Front Doors...
- Page 8 Fitment List Make Model Year Fitment Sound System: Opel Insignia B 2017 - 2020 (Z18) Front Doors All Sound Systems Opel Insignia B 2020 - 2022 (Z18) (Facelift) Front Doors All Sound Systems Opel Karl 2015 - 2019 Front Doors All Sound Systems Opel Meriva B...
- Page 9 Phoenix Gold Product Warranty LIMITED WARRANTY ON SPEAKERS Phoenix Gold warrants this product to be free of defects in materials and workmanship for a period of one (1) years from the original date of purchase. This warranty is not transferable and applies only to the original purchaser from an authorized Phoenix Gold dealer.
