Phoenix Gold ZD Series Manual

Plug & play 2-way coaxial speaker upgrade kit
Hide thumbs Also See for ZD Series:

Advertisement

Quick Links

ZDSKFO2
Plug & Play 2-Way Coaxial Speaker Upgrade Kit
100W MAX POWER
50W RMS

Advertisement

loading
Need help?

Need help?

Do you have a question about the ZD Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Phoenix Gold ZD Series

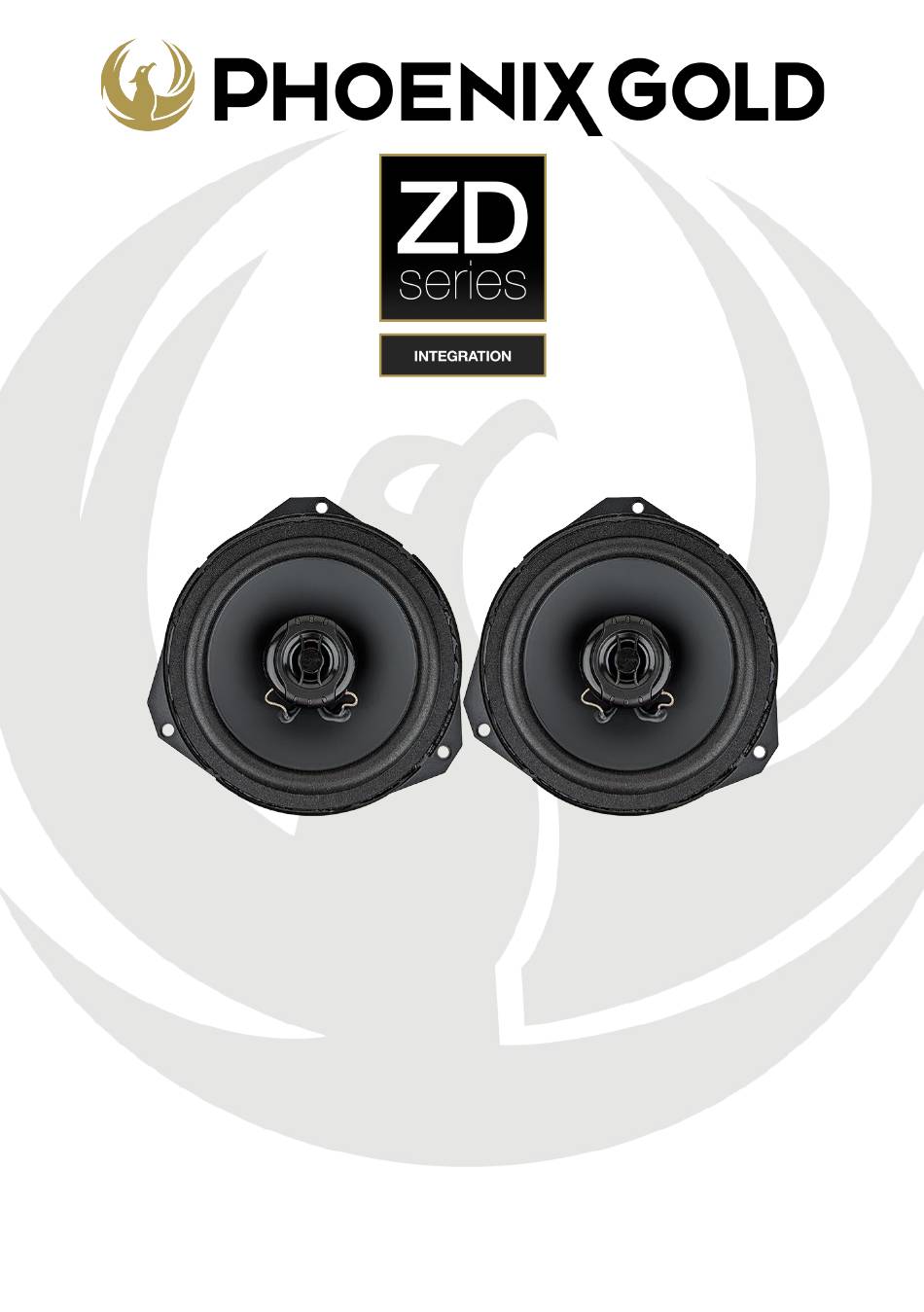

  • Page 1 ZDSKFO2 Plug & Play 2-Way Coaxial Speaker Upgrade Kit 100W MAX POWER 50W RMS...
  • Page 2 2x Speaker 2x Adapter Ring 2x Speaker Harness 2x PG Badge...
  • Page 3 Quick Start Guide Screw the speaker into the speaker adapter. Connect the speaker harness to the speaker. Install the speaker in the vehicle.
  • Page 4: Specifications

    Specifications Speaker Type: 2-Way Coaxial Speaker Speaker Size: 6.5” (165mm) Frequency Response: 70Hz - 20kHz Power Handling (RMS): Power Handling (MAX): 100W Impedance: 4Ω Sensitivity: 88.6dB (1W/1m) 68.2Hz Crossover: Inline Crossovers 0.75” (19mm) Mylar Balanced Dome Tweeter 1” (25mm) Voice Coil Triple Laminated Cone...
  • Page 5 Fitment List Make Model Year Fitment Alfa Romeo Giulia 2016 - 2019 (952) Front + Rear Doors Alfa Romeo Giulia 2019 - 2023 (952) (Facelift) Front + Rear Doors Alfa Romeo Giulietta 2010 - 2014 (I) Front + Rear Doors Alfa Romeo Giulietta 2014 - 2016 (I) (Facelift)
  • Page 6 Fitment List Make Model Year Fitment Fiat Abarth 500 2008 - 2016 (I) Front Doors Fiat Abarth 500 2016 → (I) (Facelift) Front Doors Fiat Abarth 500e 2023 → (I) Front Doors Fiat Linea 2007 - 2013 (323) Front Doors Fiat Linea 2014 - 2018 (323) (Facelift)
  • Page 7 Fitment List Make Model Year Fitment Opel Signum 2003 - 2005 (I) Front + Rear Doors Opel Signum 2005 - 2008 (I) (Facelift) Front + Rear Doors Opel Vectra 2002 - 2005 (C) Front + Rear Doors Opel Vectra 2006 - 2009 (C) (Facelift) Front + Rear Doors Opel Zafira...
  • Page 8 Phoenix Gold Product Warranty LIMITED WARRANTY ON SPEAKERS Phoenix Gold warrants this product to be free of defects in materials and workmanship for a period of one (1) years from the original date of purchase. This warranty is not transferable and applies only to the original purchaser from an authorized Phoenix Gold dealer.

This manual is also suitable for:

Zdskfo2
