Phoenix Gold ZD Series Manual

Plug & play 2-way speaker upgrade kit
Hide thumbs Also See for ZD Series:
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
ZTSCSK1
Plug & Play 2-Way Speaker Upgrade Kit
190W MAX POWER
95W RMS

Advertisement

loading
Need help?

Need help?

Do you have a question about the ZD Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Phoenix Gold ZD Series

Summary of Contents for Phoenix Gold ZD Series

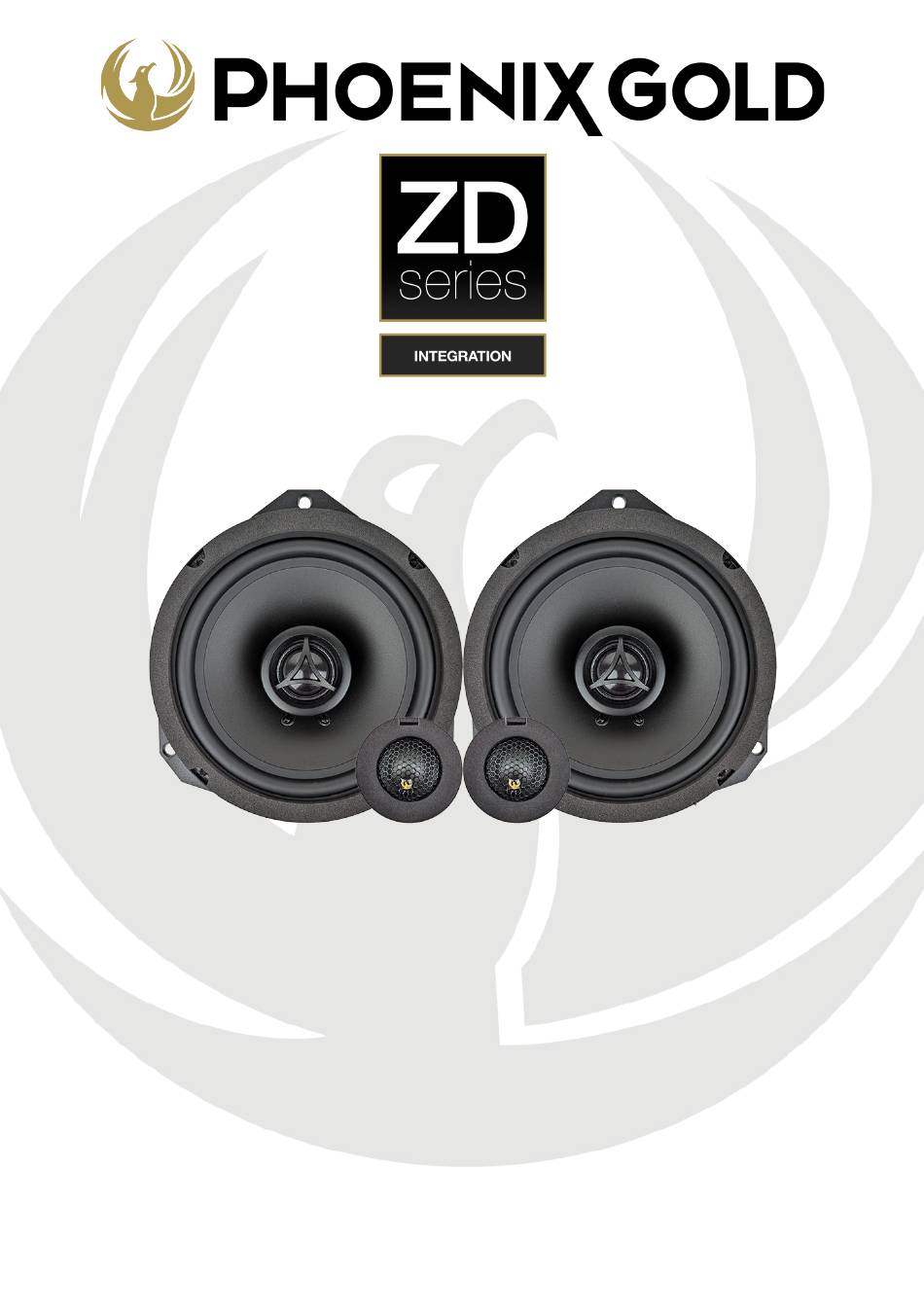

  • Page 1 ZTSCSK1 Plug & Play 2-Way Speaker Upgrade Kit 190W MAX POWER 95W RMS...
  • Page 2 2x Speakers 2x Adapter Rings 2x Tweeters 2x Tweeter Adapters 2x Bottom Plates 2x Speaker Harness 2x Tweeter Harness 2x ZZF-LP4000 2x ZZF-HP4000-6...
  • Page 3 2x ZZF-HP5000-6 2x PG Badges...
  • Page 4 Quick Start Guide Screw the speaker into the speaker adapter. Connect the ZZF-LP4000 filter to the midbass speaker terminal. Connect the ZZF-HP4000-6 to the tweeter terminal. Connect the speaker harness to ZZF-LP4000 and ZZF-HP4000-6. Red Wire = ZZF-LP4000 Blue Wire = ZZF-HP4000-6...
  • Page 5 Quick Start Guide Put the tweeter into the tweeter bottom plate. Attach the tweeter adapter to the front of the tweeter in the bottom plate. Remove the OEM tweeter for the a-pillar.
  • Page 6 Quick Start Guide Install the new tweeter in the a-pillar. Connect the ZZF-LP5000-6 filter to the tweeter. Connect the tweeter harness to the ZZF-HP5000-6 filter.

  • Page 7: Specifications

    Specifications Speaker Type: 2-Way Speaker Kit Speaker Size: 6.5” (165mm) / 1” / 0.78” Frequency Response: 60Hz - 20kHz Power Handling (RMS): Power Handling (MAX): 190W Impedance: 4Ω Sensitivity: 89dB (1W/1m) 62Hz Qts: 0.593 Crossover: Inline Crossovers 1” (25mm) Voice Coil Polypropylene cone with rubber surround...
  • Page 8 Fitment List Make Model Year Fitment Scania New Generation 2016 → (Next Gen) Front Doors...
  • Page 9 Phoenix Gold Product Warranty LIMITED WARRANTY ON SPEAKERS Phoenix Gold warrants this product to be free of defects in materials and workmanship for a period of one (1) years from the original date of purchase. This warranty is not transferable and applies only to the original purchaser from an authorized Phoenix Gold dealer.

This manual is also suitable for:

Ztscsk1
