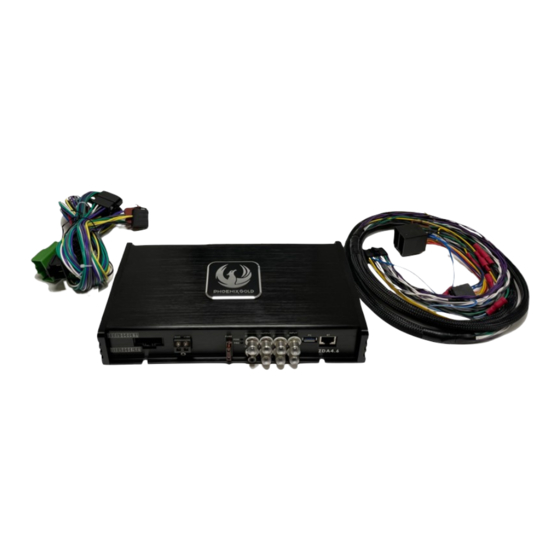

Phoenix Gold ZD Series Manual
Hide thumbs Also See for ZD Series:

Advertisement

Quick Links

ZDAPB1

Advertisement

loading
Need help?

Need help?

Do you have a question about the ZD Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Phoenix Gold ZD Series

  • Page 1 ZDAPB1...
  • Page 2 BMW 3-Series (E90/E91/E92/E93) 2005 - 2012 • E90/E91/E92/E93 • Basic Sound System • • Before installing check placement of the amplifier. If the amplifier is to be installed in the trunk a separate 5m cable i required. • If it is to be installed under the passanger seat, check that there is room.
  • Page 3 Stereo Removal 1 • Use a plastic pry tool on the outer edge of the plastic panel to pop it out.
  • Page 4 Stereo Removal 2 • The panel is now loose. Either unplug the connectors on the back of the panel or put it to the side.
  • Page 5 Stereo Removal 3 Tools required: PH2 Screwdriver • • Loosen the two screws marked with red circles. Then the stereo is loose and ready to be taken out.
  • Page 6 Stereo Removal 4 • Remove the quadlock connector and the fakra connector from the stereo.
  • Page 7: Cable Installation

    Cable Installation 1 • OBS! If there is a fiber optic cable in the original quadlock connector (the green wire and the green wire with black wire loom om) then that cable needs to be transfered to the new quadlock connector. •...
  • Page 8 Cable Installation 2 • Under the fiber optical cable the is a little lock. Use a small flat screwdriver or something tiny to loosen the connector.
  • Page 9 Cable Installation 3 • Connect the T-ISO harness.
  • Page 10 Cable Installation 4 • Connect the fiber optical cable to the new quadlock connector. • If you do not have a fiber optical cable skip to the next step.
  • Page 11 Cable Installation 5 • Connect the ISO connectors to the ZDAISOT cable harness.
  • Page 12 Cable Installation 6 • Take the ZDAISOT cable and run it behind the inner plastic panel behind the stereo.
  • Page 13 Cable Installation 7 Tools required: T20 Torx Screwdriver • • Remove the panel under the glovebox by removing the two screws. • Pull out the cable between the panels. • Continue to pull the cable either to under the passanger seat or the the trunk.
