Phoenix Gold ZD Series User Manual
8” slim active bass enclosure
Hide thumbs
Also See for ZD Series:
- Manual (13 pages) ,
- Quick start manual (8 pages) ,
- Instruction manual (3 pages)
Advertisement
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Phoenix Gold ZD Series
Summary of Contents for Phoenix Gold ZD Series

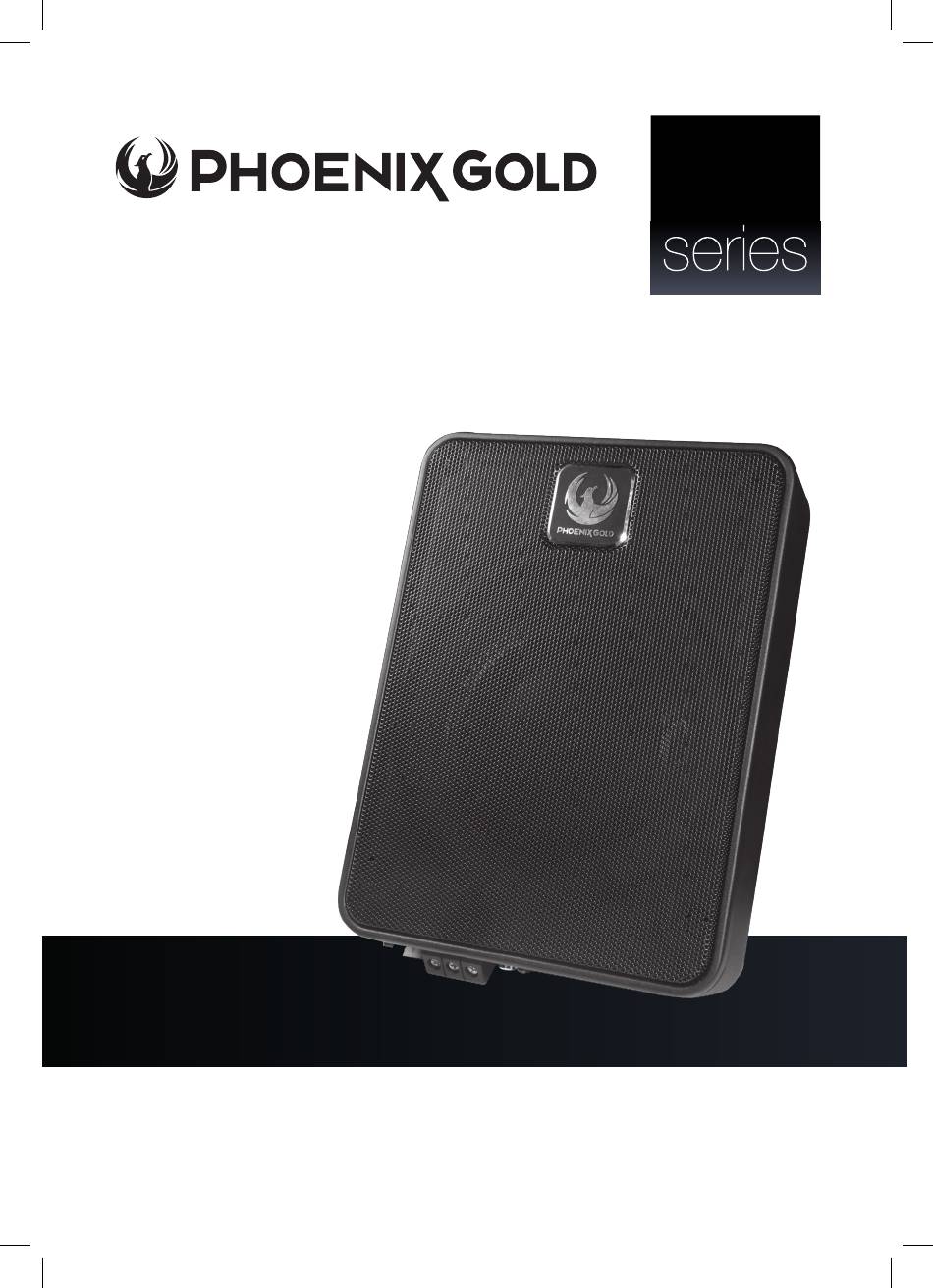

- Page 1 ZB8P 8” Slim Active Bass Enclosure User Manual...
-
Page 2: Panel Controls And Features
Note: The low pass filter frequency can be higher K.POWER INPUT TERMINAL or lower than the standard. There have +/-20% tolerance. E. BASS BOOST The BASS BOOST feature will increase the sound level in the bass frequencies. © 2024 Phoenix Gold - www.phoenixgold.com... -
Page 3: Low Level Input Wiring
Connect an empty fuse holder within 16” (40 cm) of the car battery, and run 8 gauge (or heavier) cable from this fuse to the amplifier location. Then connect the fuse holder to the “BATT+” (+ l 2V) connection on the subwoofer rear panel. © 2024 Phoenix Gold - www.phoenixgold.com... - Page 4 ZB8P - 8” SLIM ACTIVE BASS ENCLOSURE WIRING FIG 3 FIG 4 FIG 5 © 2024 Phoenix Gold - www.phoenixgold.com...
-
Page 5: Specification
300mV Low Pass Filter 50Hz-180Hz Bass Boost 0 to+ 12dB Subsonic Filter 20Hz Fuse rating Dimensions(L x W x H) mm 245 x 180 x 72 mm All specifications subject to change without notice. © 2024 Phoenix Gold - www.phoenixgold.com... -
Page 6: Troubleshooting
Use only the best quality cables, and route them away from power cables. Engine noise (alternator Check that the RCA grounds are not shorted to the vehicle chassis. whine) Check that the head unit is properly grounded. © 2024 Phoenix Gold - www.phoenixgold.com... - Page 7 ZB8P - 8” SLIM ACTIVE BASS ENCLOSURE © 2024 Phoenix Gold - www.phoenixgold.com...
- Page 8 Phoenix Gold Product Warranty Phoenix Gold warrants this product to be free of defects in materials and workmanship for a period of one (1) years from the original date of purchase. This warranty is not transferable and applies only to the original purchaser from an authorized Phoenix Gold dealer.
