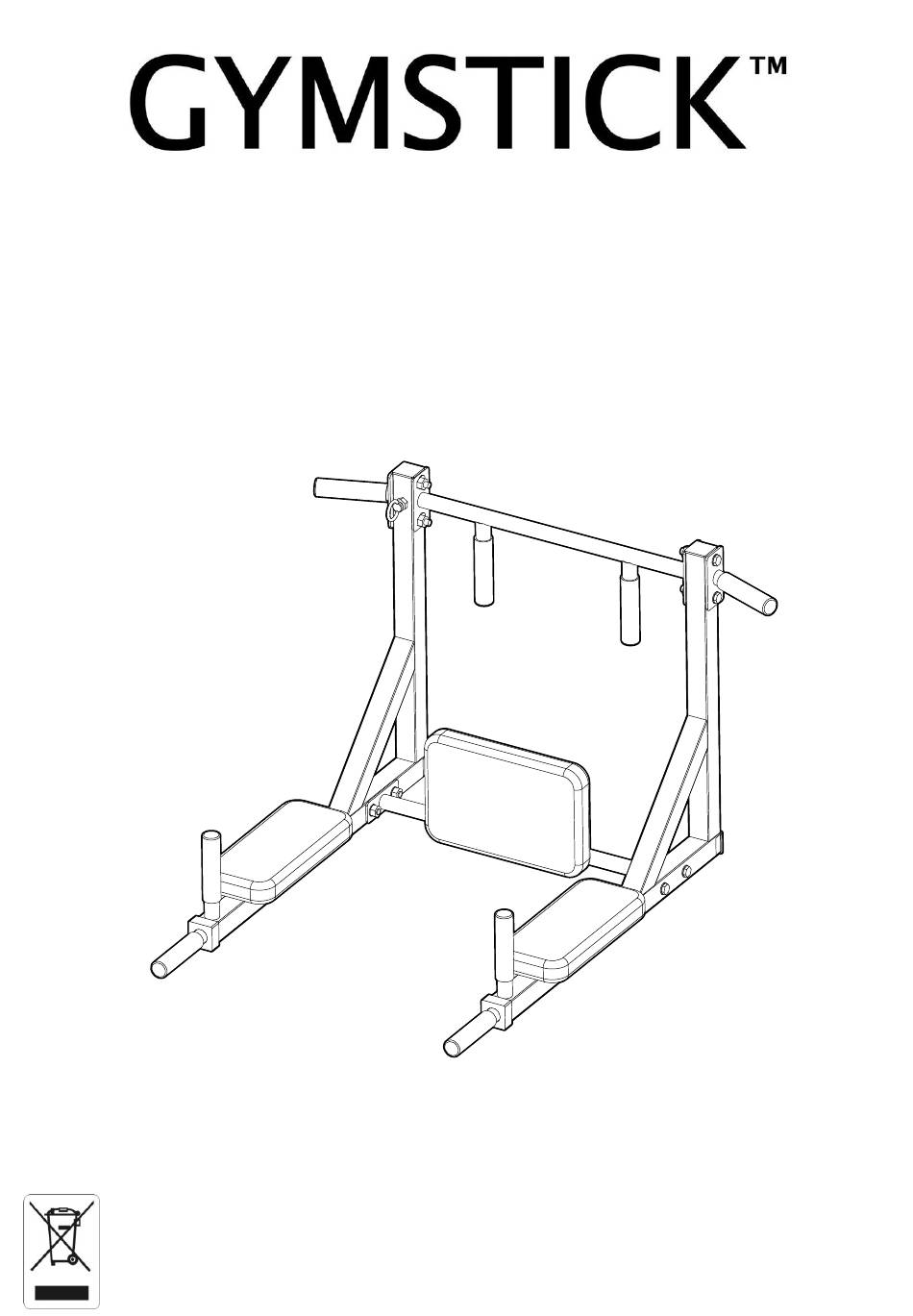

- Page 1 PULL UP & DIP RACK USER MANUAL Read all instructions carefully before operating this product. Retain this Owner’s Manual for future reference.
-
Page 2: Table Of Contents
Thank you for choosing the Gymstick Pull-Up & Dip Rack. We take great pride in producing this quality product and hope it will provide many hours of effective exercise to make you feel better, look better and enjoy life to its fullest. -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS WARNING! To reduce the risk of serious injury, read the following safety instructions before using this product. IMPORTANT! This device is intended for home use only. Keep children and pets away from this equipment at all times. This product is not a toy. Do NOT allow children to play with this product. -
Page 4: Hardware List
HARDWARE LIST Left Support Frame x 1pc Right Support Frame x 1pc Middle Handle Bar x 1pc Handle Bar Tube x 2pcs E / F Back Cushion Tube with Back Cushion Vertical Pipe x 1pc Pad x 2pcs Back Cushion x 1pc Installation Hook x 4pcs... - Page 5 HARDWARE LIST No.1 No.2 No.3 (M8x50mm) Bolt x 4pcs (M10x55mm) Bolt x 4pcs (M10x60mm) Bolt x 4pcs No.4 No.5 No.6 (M8x40mm) Bolt x 3pcs (M10x40mm) Bolt x 1pc (M8) Washer x 4pcs No.7 No.8 No.9 (M10) Washer x 16pcs (M8) Washer x 3pcs (M10) Curved Washer x 1pc No.12 No.10...
-
Page 6: Assembly Steps
ASSEMBLY STEPS COMPLETE EACH STAGE IN ORDER BEFORE ADVANCING ON TO THE NEXT. ASSEMBLE WITH NUTS AND BOLTS LOOSE AT FIRST. TIGHTEN ALL BOLTS AND NUTS AFTER COMPLETING ALL ASSEMBLY STEPS. STEP 1... - Page 7 ASSEMBLY STEPS STEP 2...
- Page 8 ASSEMBLY STEPS STEP 3...
-
Page 9: Exploded Drawing
EXPLODED DRAWING... -
Page 10: Parts List
PARTS LIST Description Description Left Support Frame Bolt (M8x50mm) Right Support Frame Bolt (M10x55mm) Middle Handle Bar Bolt (M10x60mm) Handle Bar Tube Bolt (M8x40mm) Back Cushion Tube Bolt (M10x40mm) Back Cushion Vertical Pip Washer (M8) Washer (M10) Back Cushion Washer (M8) Installation Hook Curved Washer (M10) Hollow Sleeve... -
Page 11: Implied Warranty
• Non-compliance of the operating instructions Wear parts and expendable parts are also not covered. The device is only intended for home use. The warranty does not apply to commercial use of any kind. Manufactured for: Gymstick International Oy Ratavartijankatu 11 15170 Lahti, FINLAND...
