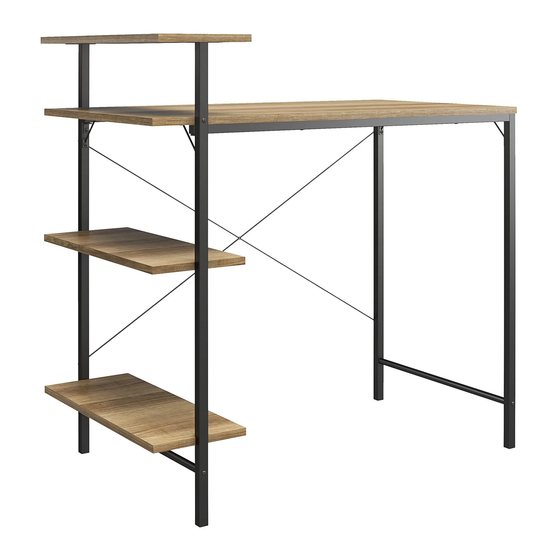

Side storage desk
Hide thumbs

Advertisement

Available languages

Available languages

Table of Contents

8104885WR
Side Storage Desk
Date of Purchase ___ / ___ / ___
Lot Number:
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Do Not Return This Product!
Contact our customer service team for help first.
Call: 1-800-489-3351 (toll free)
Monday-Friday 9am - 5pm CST
Visit: www.ameriwoodhome.com
WARNING
- Unit can tip over causing severe injury or death.
- Anchor unit to stud in wall (if instructed to).
- Do Not allow children to climb on unit.
- Put heavy items on lower shelves or drawers.
Easy
Assembly Difficulty Meter
Follow Ameriwood Home
Follow Ameriwood Home
B348104885WR00HU
Tough

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8104885WR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mainstays 8104885WR

Summary of Contents for Mainstays 8104885WR

  • Page 1 8104885WR Side Storage Desk B348104885WR00HU Date of Purchase ___ / ___ / ___ Lot Number: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Do Not Return This Product! Contact our customer service team for help first.

  • Page 2: Helpful Hints

    Contact Us! Do NOT return this product! Contact our friendly customer service team first for help. Assembly Tips Call us! 1-800-489-3351 Monday-Friday 9am - 5pm CST Visit ameriwoodhome.com Helpful Hints PEOPLE NEEDED FOR ASSEMBLY: 1-2 ESTIMATED ASSEMBLY TIME: 1 HOUR - Open your item in the area you plan to keep it to avoid excessive heavy lifting.

  • Page 3: Before You Start

    Before You Start Read through each step carefully and follow the proper order Separate and count all your parts and hardware Give yourself enough room for the assembly process Have the following tools: #2 Phillips Head Screwdriver Caution: If using a power drill or power screwdriver for screwing, please be aware to slow down and stop when screw is tight.

  • Page 4: Board Identification

    Board Identification Not actual size TOP PANEL TOP SHELF LOWER SHELF T8104885WR010HU T8104885WR020HU T8104885WR030HU QTY: 2PCS LEFT BACK LEG LEFT FRONT LEG RIGHT BACK LEG T8104885WR040HU T8104885WR050HU T8104885WR060HU ameriwoodhome.com...
  • Page 5 Board Identification Not actual size RIGHT STRENGTH TUBE LEFT STRENGTH TUBE RIGHT FRONT LEG T8104885WR090HU T8104885WR080HU T8104885WR070HU BACK TUBE FRONT TUBE T8104885WR100HU T8104885WR110HU REINFORCING BRACKET TENSION BAR T8104885WR130HU T8104885WR120HU QTY: 2 PCS ameriwoodhome.com...
  • Page 6 Board Identification Not actual size ameriwoodhome.com...

  • Page 7: Part List

    Hardware Bag Reference Number: 28104885WR0HU Part List Actual Size Ø5/32X12mm Ø1/4X60mm Ø1/4X35mm x 26 Bolt Screw bolt Bolt THU1805 THU1806 THU0901 Ø5/32X28mm Screw bolt THU0903 Not Actual Size Ø11X12mm M4X23X66mm Hex key THU2301 THU1901 ameriwoodhome.com...
  • Page 8 STEP Ø5/32X12mm --Attach the right back leg (F) and the right front leg (G) to the top panel (A) with bolts (3) as below shown. ameriwoodhome.com...
  • Page 9 STEP Ø1/4X35mm M4X23X66mm --Attach the right strength tube (I) to the right back leg (F) and the right front leg (G) with bolts (2) as below shown. ameriwoodhome.com...
  • Page 10 STEP Ø5/32X30mm Ø5/32X12mm --Attach the back tube (J) and the front tube (K) to the top panel (A) with bolts (4) as below shown. --Attach the front tube (K) to the right front leg (G) with bolt (3) as below shown. --Attach the back tube (J) to the right back leg (F) with bolt (3) as below shown.
  • Page 11 STEP Ø1/4X35mm M4X23X66mm --Attach the left strength tube (H) to the left back leg (D) and the left front leg (E) with bolts (2) as below shown. ameriwoodhome.com...
  • Page 12 STEP Ø11X9.2mm Ø1/4X60mm M4X23X66mm --Attach the left front leg (E) to the top panel (A) with bolts (1) and nuts (5) as below shown. ameriwoodhome.com...
  • Page 13 STEP Ø5/32X12mm x 10 --Attach the lower shelves (C) to the left back leg (D) and the left front leg (E) with bolts (3) as below shown. --Attach the back tube (J) and the front tube (K) to the left back leg (D) and the left front leg (E) with bolts (3) as below shown.
  • Page 14 STEP Ø5/32X12mm --Attach the top shelf (B) to the left back leg (D) and the left front leg (E) with bolts (3) as below shown. --Attach the reinforcing bracket (M) to the left back leg (D) and the top panel (A) with bolts (3) as below shown. ameriwoodhome.com...
  • Page 15 STEP Ø11X9.2mm Ø5/32X12mm Ø1/4X60mm M4X23X66mm --Attach the left back leg (D) to the top panel (A) with bolts (1) and nuts (5) as below shown. --Attach the tension bars (L) to the left back leg (D) and the right back leg (F) with bolts (3) as below shown. --Attach the reinforcing bracket (M) to the left front leg (E) and the top panel (A) with bolts (3) as below shown.

  • Page 16: Maximum Loads

    Maximum Loads This unit has been designed to support the maximum loads shown. Exceeding these load limits could cause sagging, instability, product collapse, and/or serious injury. 50lbs/ 23kg 15lbs/ 7kg 15lbs/ 7kg 15lbs/ 7kg Certificate of Conformity 1. This certificate applies to the Dorel Home Furnishings, Inc. product identified by this instruction manual. 2.
  • Page 17 Register your product to receive the following: * New trend details - sneak peek on what's new * Surveys - have a voice within our community * Exclusive deals and discount codes * Quick and easy replacement part service To register your product, visit ameriwoodhome.com Visit your local retailer's website, rate your purchased product and leave us some feedback! We would like to extend a big "Thank You"...
  • Page 18 Español Cubierta Delantera Este libro de instrucciones contiene información IMPORTANTE de seguridad. Por favor lea y manténgalo para referencia en el futuro. No Regrese este producto! Comuniquese con nuestro amistoso equipo de servicio al cliente para obtener ayuda. Llamenos al: 1-800-489-3351 (Gratis) Lunes - Viernes 9am - 5pm CST Visitar: www.ameriwoodhome.com PRECAUCION Este mueble puede volcarse y causar graves heridas y/o muerte.
  • Page 19 Español Lista de Piezas (Página 7) Identificación de los Paneles (Página 4,5) Tamaño real Este no es el tamaño real Este no es el tamaño real (1) Peron (A) PANEL SUPERIOR Tuerca (B) ESTANTE SUPERIOR (2) Perno Llave en L (C) REPISA INFERIOR (3) Perno (D) PATA TRASERA IZQUIERDA...
  • Page 20 Español Paso 1: -- Ate la pata trasera derecha (F) y la pata frontal derecha (G) al panel superior (A) con pernos (3) como se muestra abajo. Paso 2: -- Ate el tubo derecho de soporte (I) a la pata trasera derecha (F) y la pata frontal derecha (G) con pernos (2) como se muestra abajo.
  • Page 21 Español Página 16 CARGA MAXIMA Esta unidad ha sido diseñada para soportar la carga máxima anotada. El exceder estos límites puede causar inestabilidad, colapsarse y/o causar serias lesiones. ADVERTENCIA: Riesgo de lesiones a las personas - no coloque un televisor sobre muebles. Este mueble no está...
  • Page 22 Français Couverture Avant CE LIVRET D'INSTRUCTION CONTIENT DES INFORMATIONS IMPORTANTES SUR LA SÉCURITÉ. VEUILLEZ LIRE ET GARDER POUR UNE RÉFÉRENCE FUTURE Ne retournez pas ce produit! Contactez notre équipe de service à la clientèle amicale d'abord pour obtenir de l'aide. Appelez-nous: (sans frais) du Lundi au Vendredi de 9h à...
  • Page 23 Français Identification des matériaux (Page 4,5) Liste des pièces (Page 7) Pas de taille réelle Pas de taille réelle Taille réelle (1) Boulon ÉCROU (A) PANNEAU SUPÉRIEUR (2) Boulon CLÉ HEXAGONALE (B) ÉTAGÈRE SUPÉRIEURE (3) Boulon (C) TABLETTE INFÉRIEUR (4) Boulon (D) PATTE ARRIÈRE GAUCHE (E) GAUCHE AVANT LEG (F) PATTE ARRIÈRE DROITE...
  • Page 24 Français Étape 1: --Fixez la patte arrière droite (F) et la patte avant droite (G) au panneau supérieur (A) avec les boulons (3) comme montré ci-dessous. Étape 2: --Fixez le tube de renforcement droit (I) à la patte arrière droite (F) et à la patte avant droite (G) avec les boulons (2) comme montré...
  • Page 25 Français --Fixez les barres de tension (L) à la patte arrière gauche (D) et à la patte arrière droite (F) avec les boulons (3) comme illustré ci-dessous. --Fixez le support de renforcement (M) à la patte avant gauche (E) et au panneau supérieur (A) avec les boulons (3) comme illustré...
