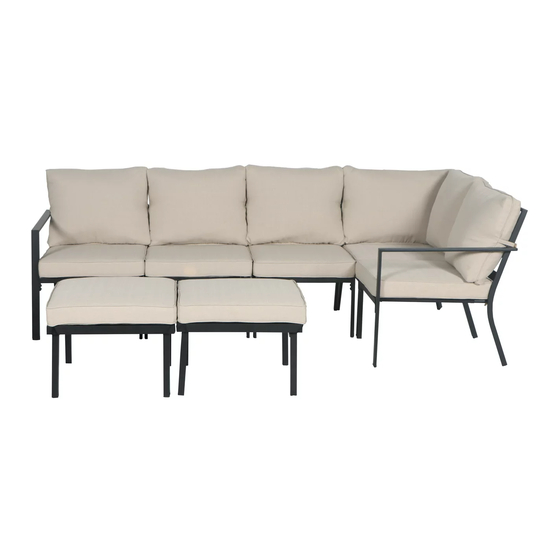

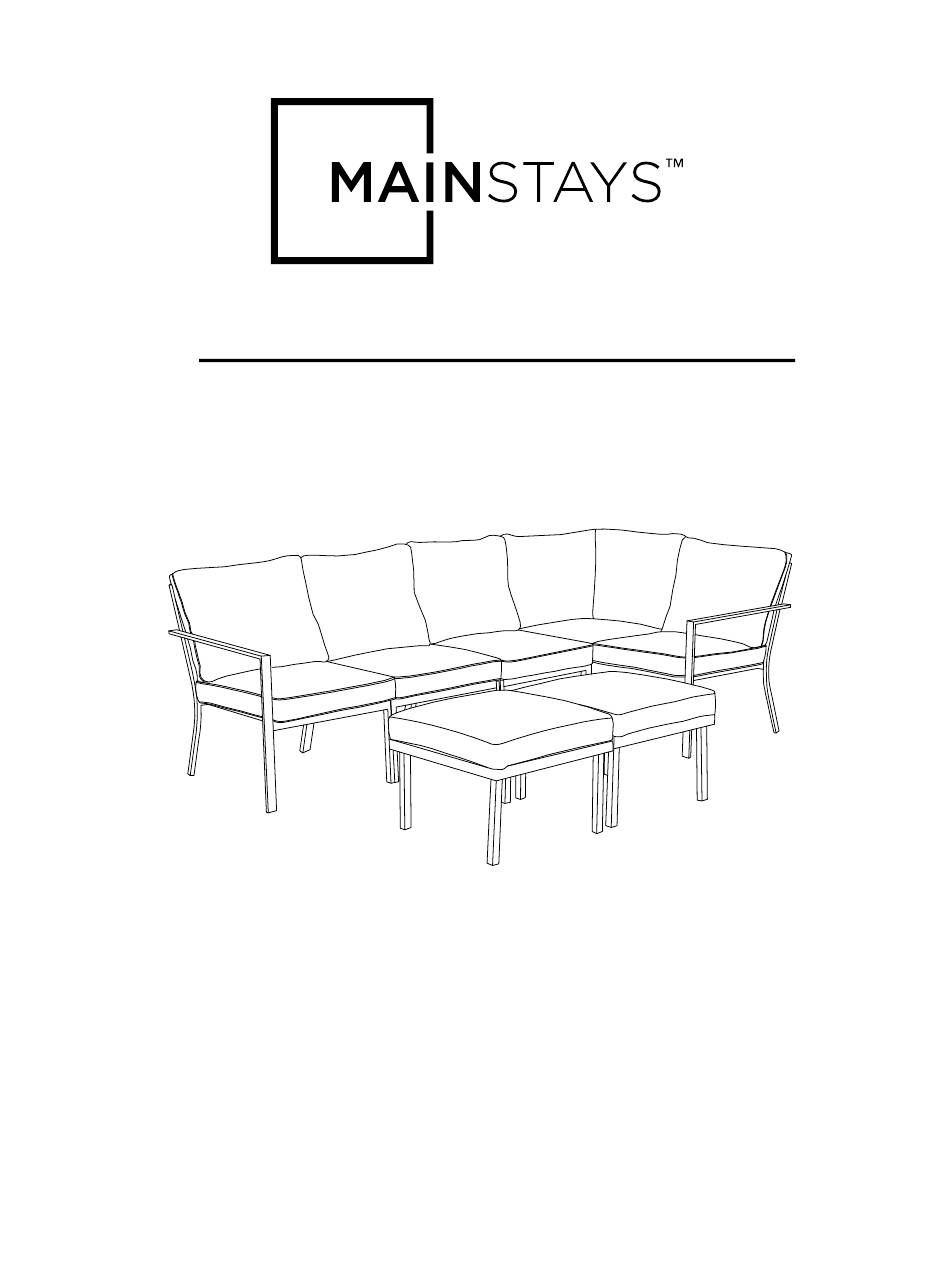

- Page 1 MSS129900298079 ASSEMBLY AND CARE GUIDE MAINSTAYS RICHMOND HILLS 7-PIECE OUTDOOR PATIO SOFA SECTIONAL SET - BEIGE Need Assistance Contact our toll free Customer Service Hotline at: (877) 980-6928 -Monday through Friday 7:30am until 3:30pm PST-...
-
Page 2: Warranty
MSS129900298079 Warranty 2 YEAR LIMITED WARRANTY WHAT IS COVERED We warrant the frame to be free of manufacturing defects to the original purchaser for two years. WHAT IS NOT COVERED This warranty does not cover commercial use, hardware, acts of nature, fire, freezing, and abusive use. In addition, purchased parts are not covered under this warranty. - Page 3 MSS129900298079 A. Read instructions thoroughly. Acquaint yourself with the inventory of parts and the accompanying drawings to ensure safe and proper assembly. B. Lay out all of the parts on a flat surface and identify them using the table below.
- Page 4 MSS129900298079 Armless Chair*2 Corner Sofa Picture Picture Seat Frame Seat Panel Back Back Left Frame Right Armrest Right Frame Left Frame Bolt Bolt M6X18 M6X18 Bolt Bolt M6X30 M6X30 Bolt Bolt M6X55 M6X55 Ratchet Tool Ratchet Tool Foot Stool*2 Picture...
- Page 5 MSS129900298079 Assembly Right Armchair Note: Do not tighten bolts until all parts are connected Step 1: Insert seat panel(A) into the hole of back(B), then assemble by using bolts(CC) and ratchet tool (DD) as below picture. Step 2: Attach left frame(C) to the seat panel(A) and back(B) using two bolts(AA) at front and two bolts (BB) at the back.Then attach right armrest(D) to seat panel(A) and back(B) using two bolts(AA)
- Page 6 MSS129900298079 Assembly Armless Chair Note: Do not tighten bolts until all parts are connected Step 1: Insert seat panel(I) into the hole of back(J), then assemble by using bolts(CC) and ratchet tool (DD) as below picture. Step 2: Attach left&right frame(C&G) to the seat panel(I) and back(J) using four bolts(AA) at front and four bolts(BB) at the back.
-
Page 7: Maintenance
MSS129900298079 Assembly Foot Stool Note: Do not tighten bolts until all parts are connected. Step 1: Attach four legs(O) to seat panel(N) using bolts(AA) and ratchet tool(DD). Step 1. Maintenance We recommend the use of furniture covers when not in use.
