TemperZone GMW Series Installation & Maintenance

GMW Series
Underceiling
Fan Coil Units
GENERAL
The GMW Underceiling fan coil units are
available with Standard (-S) or High (-H)
capacity motor/s, e.g.
GMW 140-S, standard cap. 6 pole motors
GMW 140-H, high capacity 4 pole motors
The GMW Underceiling units must be
installed in accordance with all national and
local safety codes.
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory, or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
Children should be supervised to ensure
that they do not play with the appliance.

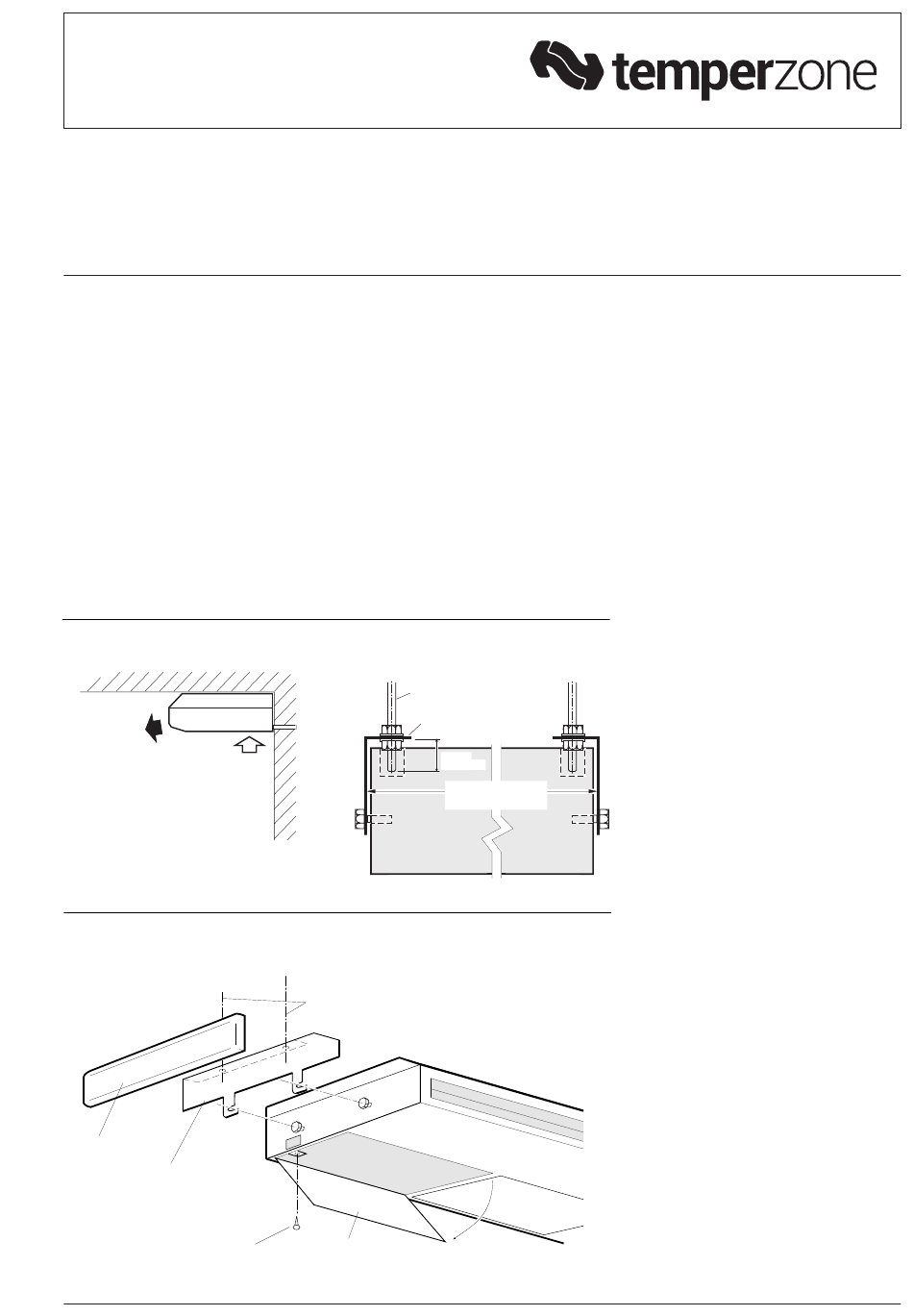

Fig. 1 Positioning
UNDERCEILING
MOUNTING
Note: GMW units are not suitable
for mounting on a wall.
Fig. 3 Mounting Bracket Detachment
VIEWED FROM BELOW
ENDCAP
MOUNTING
BRACKET
SCREW
SECURING
ENDCAP
Components
The GMW carton includes:
1. GMW fan coil unit.
2. Insulated condensate drain extension kit
(not necessary with heating only units).
A remotely positioned control switch is not
included but is required.
INSTALLATION
Positioning & Mounting
The GMW is designed to be installed
suspended horizontally beneath a level or
sloping ceiling. For an extra low profile the
unit can be recessed into the ceiling.
Note: GMW units are not suitable for
mounting on a wall and must not be
accessible to the general public.
Fig. 2 Mounting Detail
MOUNTING ROD
MOUNTING
BRACKET
30 mm
MAXIMUM
GMW 50: 942 mm
GMW 70, 80: 1203 mm
GMW 140, 160: 1803 mm
MOUNTING ROD CENTRES
HINGED DOWN
FILTER PANEL
Installation &
Maintenance
Preparation
Prior to mounting the GMW the mounting
brackets must be detached from each end of
the unit.
1. Open the end filter panel and locate the
screw securing the unit endcaps (refer
figure 3).
2. Remove the endcap securing screw and
retain.
3. Remove the endcap by first sliding
it forward approx. 20 mm, then pull
outwards away from end of the unit.
4. Release each mounting bracket from
behind the two bolts securing them to the
unit.
Mounting
Locate the GMW near a wall to take full
advantage of the long supply air throw and
to hide the condensate drain pipe (and other
connections) exiting at the rear of the unit.
Installation
1. If an extra low profile installation is
preferred, first cut the required ceiling
aperture.
2. Install four M8 threaded hanging rods (not
supplied) to protrude no more than 30 mm
below the level of the mounting bracket
flange (refer figure 2).
3. Thread on and tighten the lower washer
and locknut sets (not supplied) to secure
the left and right mounting brackets.
Note: Mounting bracket flanges face
inwards.
4. Adjust distance between mounting
brackets to match dimensions in figure 4.
5. Lift the unit to the mounting brackets
locating the two protruding bolts, at each
end of the unit, securely into the two slots
provided in each mounting bracket, then
tighten bolts to secure the GMW unit.
6. Check that the secured GMW is installed
level to facilitate condensate drainage.
7. Complete all water piping connections.
8. If the unit is to be used for cooling, fit the
insulated condensate drain extension,
orientated so that the drain vent tube is at
the highest point in the condensate line.
9. After completing all piping connections
replace the GMW unit's left and right
endcaps as follows:
a. Place each endcap slightly forward of
the appropriate end of the unit,
b. Compress the endcap at its centre
and slide back hooking the endcaps
hook under the 'U' shaped bracket on
the unit and into position .
c. Secure each with the screws removed
earlier from behind the filter panels.
