TemperZone HWP 35 Installation & Maintenance

HWP 35, 47, 58
Ducted Water Cooled R410A
Packaged Air Conditioner
Fig. 1 Nomenclature
Nomenclature
H W P
e.g.
Series
H - Hideaway
W - Water Sourced
P - Packaged

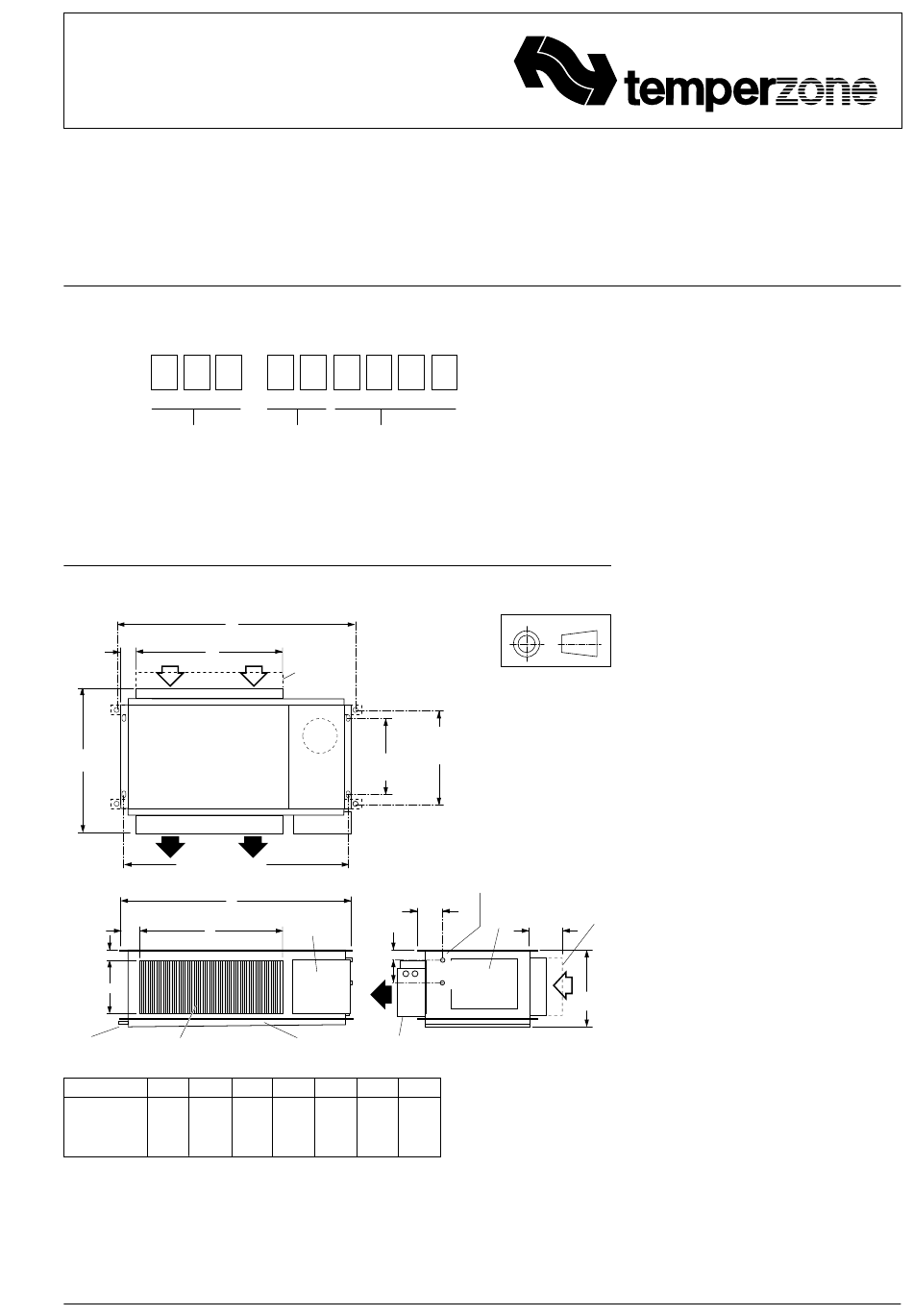

Fig. 2 Dimensions (mm)
F
OPTIONAL
SPRING MOUNTING CENTRES
G
40
(HEIGHT = 257)
685
OVERALL
E
HANGING CENTRES
20 X 9 SLOTS
A
OVERALL
B
55
SUPPLY AIR SPIGOT
C
257
DRAIN 19 OD COIL
MODEL A B
HWP 35 845 477
HWP 47 845 477
HWP 58 1110 742
3 5 C K S D
Size Type
Divide by 10 C - Cooling only
to get approx.
CE - Cooling only with electric heat
nominal
R - Reverse cycle
Capacity in
K - Refrigerant R410A
kilowatts
S - Single phase power supply
T - Three phase power supply
D - Integrated Thermostat
N - Protection board
OPTIONAL
FILTER BOX
OPTIONAL
SPRING MTG
440
CENTRES
HANGING
CENTRES
ELECTRICAL
BOX
55
75
SLOPING ELECTRICAL
DRAIN TRAY CONDUIT HOLES
C D E F G
40 105 825 900 480
40 105 825 900 480
45 90 1090 1165 745
Not to Scale
PROJECTION
Net Weight
HWP 35 57 kg
HWP 47 58 kg
472
HWP 58 75 kg
WATER CONN'S:
TWO BSP MALE
13 mm (1/2")
OPTIONAL
R/A FILTER BOX WITH
D
FILTER ACCESS
ACCESS
EACH SIDE
PANEL
150
OUT
(WATER)
IN
355
OVERALL
Installation &
Maintenance
GENERAL
HWP
- A general designation which
applies to all versions (refer fig.1)
These HWP units must be installed in
accordance with all national and local safety
codes.
OPtIONs
The following items are available as optional
extras:
1. Condensate Lift-Pump Kit.
2. Filter Box.
High pressure hoses (600 mm long) c/w
fitting and spring mounts are supplied as
standard.
AIR FILtRAtION / FILtER BOX (Option)
As air filtration requirements vary, filters are
not supplied with the unit. Filters should
ideally be installed on the return air side of
the unit, no closer than 500 mm from the
back of the unit and easily accessible for
cleaning. To maximise the efficiency of air
flow, the return air filter should be twice the
area of the HWP unit's return air spigot/s. If
efficiency is less of a concern a Filter Box is
available.
The Filter Box is installed by unscrewing
the return air spigot and replacing it with the
Filter Box's filter-integrated spigot. The filter
may be accessed from either side of this
spigot. This box adds 90 mm to the overall
depth of the unit.
INstALLAtION
Positioning & Mounting
HWP units are designed to be used with
simple, short duct layouts. Units should
be located as close to the space to be air
conditioned as acoustic criteria allows; refer
to Fig. 6 for application considerations.
When determining the position of the air
conditioner, allow adequate space around
the unit to facilitate future servicing and
maintenance. Ensure there is enough
working space in front of the electrical
access panel. Allow adequate clearance for
the filter (optional) to be withdrawn to its full
length.
It is recommended that the unit be
mounted using the spring mount system
supplied (Fig.3). this system minimises
transfer of vibration into the building
structure.
If a more rigid installation can be tolerated,
then suspend the unit from four threaded
rods using locknuts (not supplied), as shown
in Fig. 4.
1
