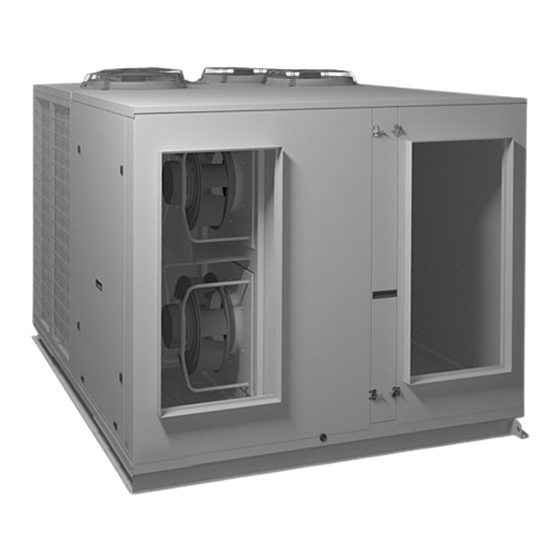

TemperZone OPA RKTG-P Series Installation & Maintenance

Air Cooled Packaged Units - Reverse Cycle - R410A
1. GENERAL
Temperzone OPA Outdoor Air Cooled Packaged units.
Follow these instructions to ensure the optimum
performance, reliability and durability.
Units must be installed in accordance with all national and
regional regulations and bylaws. National Health and Safety
regulations must be followed to avoid personal injuries.
2. INSTALLATION

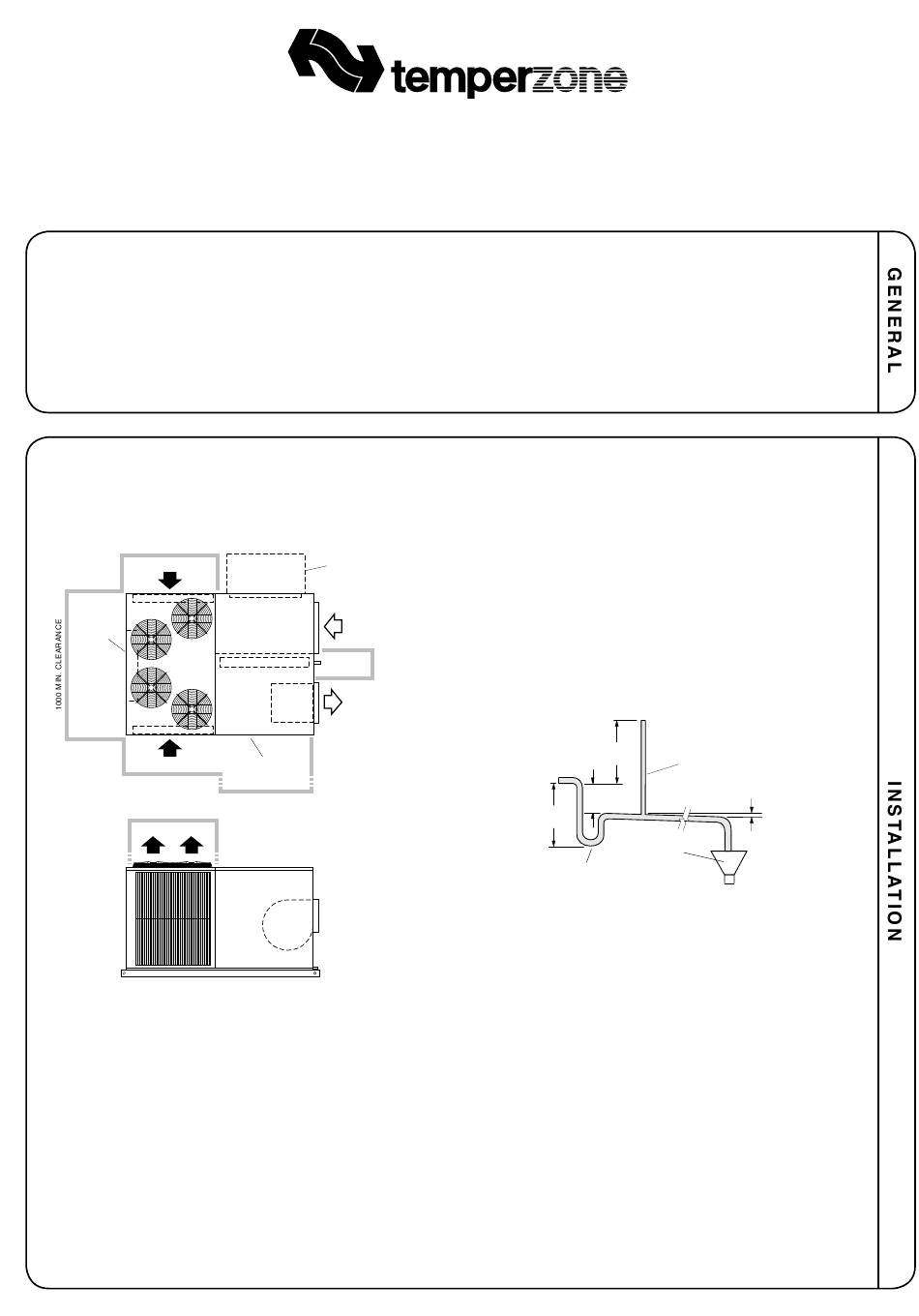

Refer to dimension diagrams below for minimum clearances.
If multiple units are to be placed side-by-side then allow at
least 2m between coil faces. (refer fig. 1)
500 MIN. CLEARANCE
OUTDOOR
AIR FLOW
ELECTRICAL
ACCESS
PANEL
OUTDOOR
AIR FLOW
500 MIN. CLEARANCE
1000 MIN. CLEARANCE
2000 MIN. CLEARANCE
Figure 1.
2.1 Mounting
The unit should be fastened to a firm flat horizontal
base using the holes supplied in the mounting
channels. When the unit is being installed on a roof it is
recommended that the unit is installed on a substantial
structure with vibration isolating springs beneath the
unit. These springs are not supplied with the unit.
Flexible duct connections are recommended between
the supply and return ducts and the unit.
Unit is shipped with wooden blocks installed under the
compressors. Ensure these blocks are removed from
the compressor feet prior to starting the unit
(not required for operation).
OPA 465–960 RKTG-P (ECO)
Installation & Maintenance
OPTIONAL
WEATHER
HOOD
RETURN
AIR
1000 MIN.
CLEARANCE
FOR FILTER
ACCESS
SUPPLY
AIR
FAN
ACCESS
PANEL
The appropriate local permits must be acquired and
adhered to.
Local regulations on maximum boundary noise need to
be considered when positioning the unit.
Factory filter slides are fitted, access to the filter access
door should be considered when designing return
and supply air ductwork. Access to the filters can still
be achieved by removing the return air access door,
however it is imperative that the rubber insulating
washers be refitted to the screws prior to replacing
the panel.
2.2 Condensate Drain
The condensate drain should be 'U' trapped outside the
unit. The trap should have a vertical height of at least
100 mm. The drain should have a slope of at least 1 in
50 and must not be piped to a level above the unit drain
pipe. (refer fig. 2)
100 mm
APPROX.
100 mm
MINIMUM
200 mm
APPROX.
'U' TRAP
Figure 2.
VENT PIPE
FOR LONG
CONDENSATE
DRAIN RUNS
MINIMUM
SLOPE
20 mm PER m
(1 IN 50)
OPEN
DRAIN
