TemperZone HWP 96 Series Installation & Maintenance

HWP 77, 96
Ducted Water Cooled R410A
Packaged Air Conditioner
Fig. 1 Nomenclature
Nomenclature
H W P
e.g.
Series
H - Hideaway
W - Water Sourced
P - Packaged

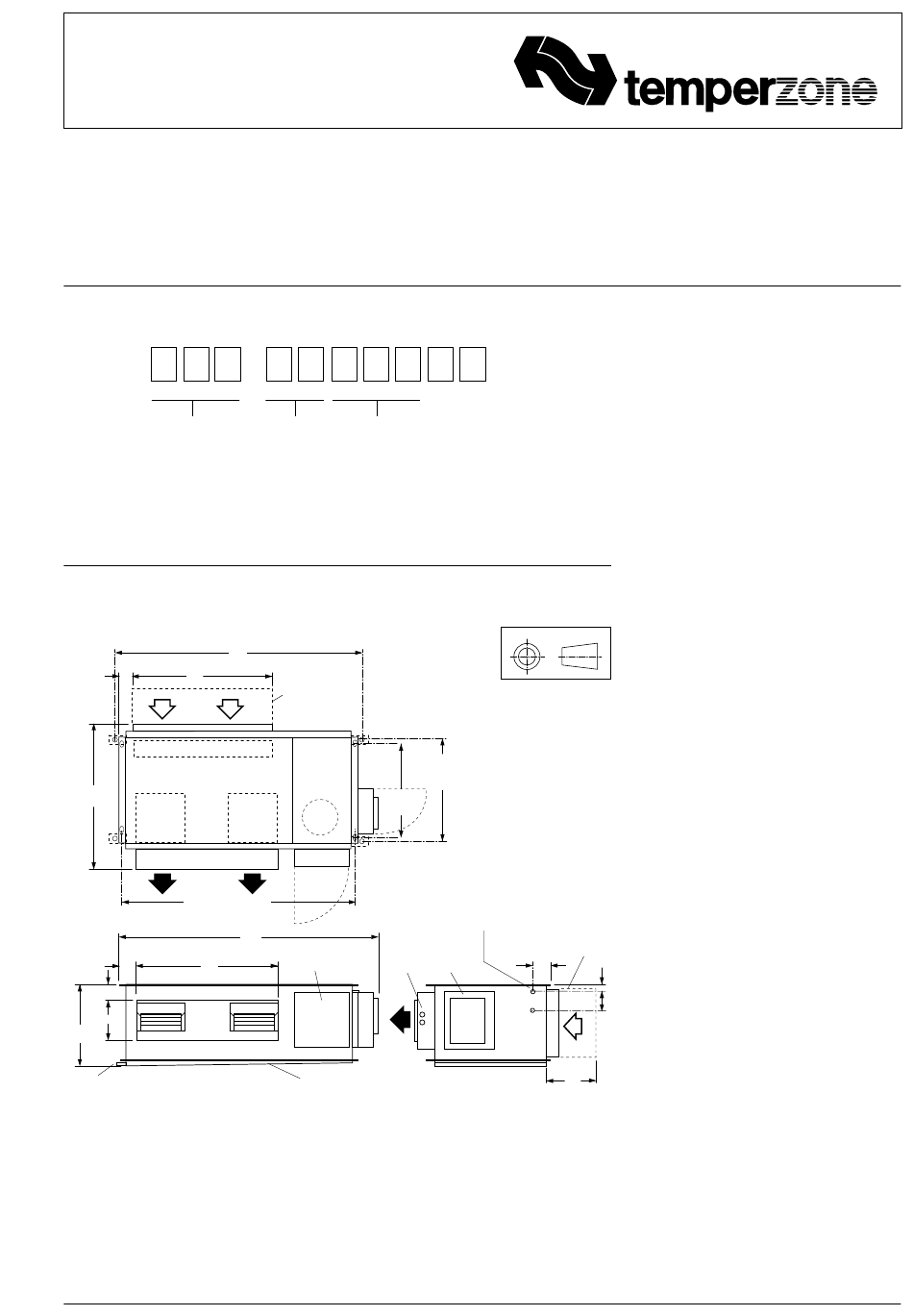

Fig. 2 Dimensions (mm)
1255
OPTIONAL
SPRING MOUNTING CENTRES
65 698
(HEIGHT = 340)
725
OVERALL
1179
HANGING CENTRES
20 X 9 SLOTS
OVERALL
710
85
SUPPLY AIR SPIGOT
70
200
416
OVERALL
DRAIN 19 OD
(c/w EC Motor and UC7 Controller versions)
7 7 C K S Y D
Size Type
C - Cooling only
Divide by 10
to get approx.
CE - Cooling only with electric heat
nominal
R - Reverse cycle
Capacity in
K - Refrigerant R410A
kilowatts
S - Single phase power supply
Y - EC fan motor
T - Three phase power supply
D - Integrated Thermostat
N - Protection board
OPTIONAL
FILTER BOX
440
HANGING
CENTRES
1305
ELECTRICAL
ELECTRICAL
CONDUIT
BOX
HOLES
SLOPING DRAIN TRAY
Not to Scale
PROJECTION
Net Weight
HWP 77 117 kg
HWP 96 120 kg
480
OPTIONAL
SPRING MTG
CENTRES
WATER CONN'S:
TWO BSP MALE
19 mm (3/4")
OPTIONAL
R/A FILTER BOX WITH
FILTER ACCESS
EACH SIDE
ACCESS
90
PANEL
OUT
(WATER)
IN
245
Installation &
Maintenance
GENERAL
HWP
- A general designation which
applies to all versions (refer fig.1)
These HWP units must be installed in
accordance with all national and local safety
codes.
OPtIONs
The following items are available as optional
extras:
1. Condensate Lift-Pump Kit.
2. Filter Box.
A remote return air temperature sensor is
supplied on all models except for
HWP 77/96 CEKSYD models. Optional
sensors are available; refer page 3.
High pressure hoses (600 mm long) c/w
fitting and spring mounts are supplied as
standard.
AIR FILtRAtION / FILtER BOX (Option)
As air filtration requirements vary, filters are
not supplied with the unit. Filters should
ideally be installed on the return air side of
the unit, no closer than 500 mm from the
back of the unit and easily accessible for
cleaning. To maximise the efficiency of air
flow, the return air filter should be twice the
area of the HWP unit's return air spigot/s. If
efficiency is less of a concern a Filter Box is
available.
The Filter Box is installed by unscrewing
the return air spigot and replacing it with the
Filter Box's filter-integrated spigot. The filter
may be accessed from either side of this
spigot. This box adds 245 mm to the overall
depth of the unit.
INstALLAtION
Positioning & Mounting
30
HWP units are designed to be used with
simple, short duct layouts. Units should
75
be located as close to the space to be air
conditioned as acoustic criteria allows; refer
to Fig. 6 for application considerations.
When determining the position of the air
conditioner, allow adequate space around
the unit to facilitate future servicing and
maintenance. Ensure there is enough
working space in front of the electrical
access panel. Allow adequate clearance for
the filter (optional) to be withdrawn to its full
length.
It is recommended that the unit be
mounted using the spring mount system
supplied (Fig.3). this system minimises
transfer of vibration into the building
structure.
1
