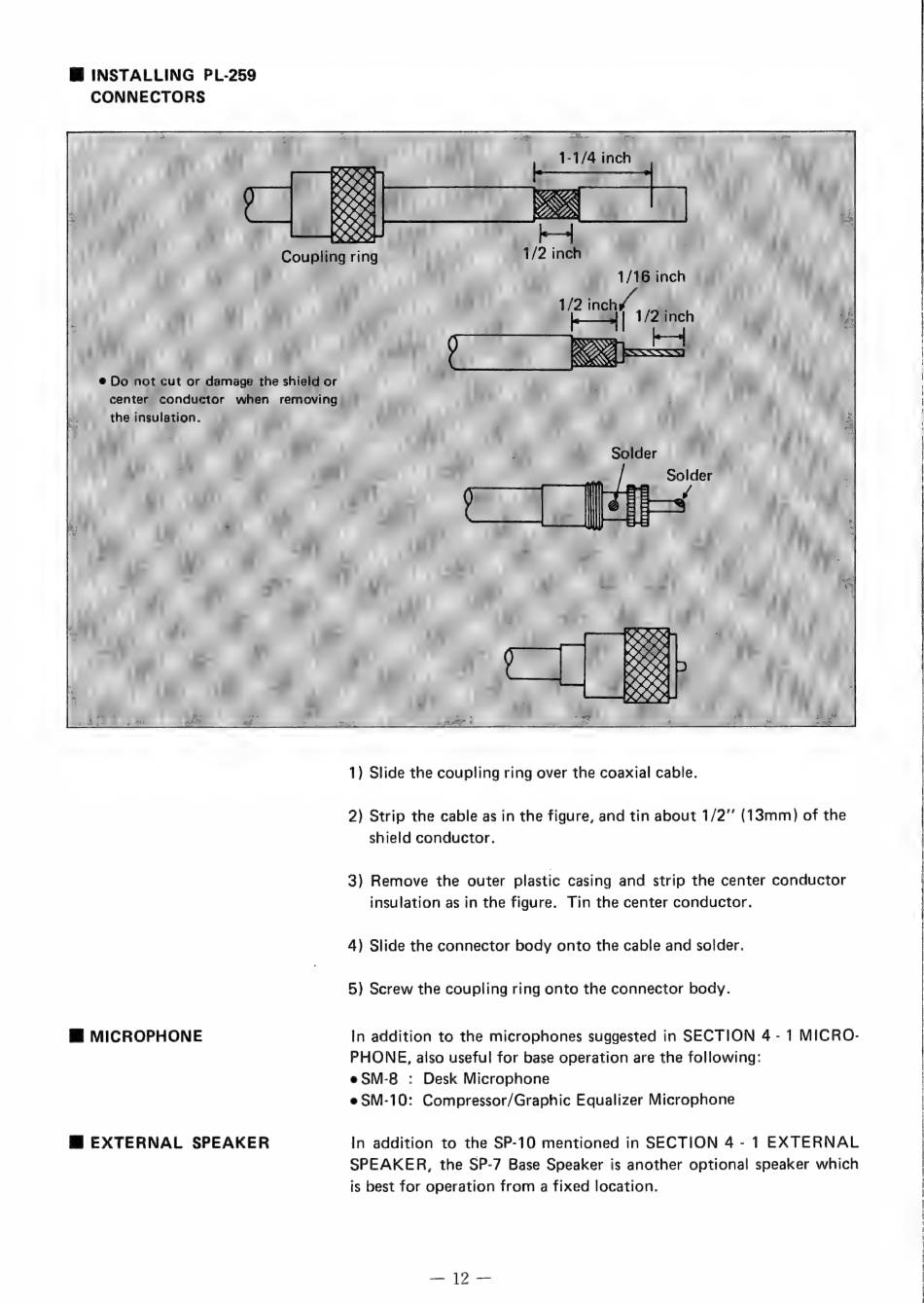

Ш INSTALLING
PL-259
CONNECTORS
——— —
-——-
-
-
че |
æ
[3
бв |
=
-
1) Slide the coupling ring over the coaxial cable.
2) Strip the cable as in the figure, and tin about 1/2" (13mm) of the
|
shield conductor.
3) Remove
the outer plastic casing and strip the center conductor
|
insulation as in the figure. Tin the center conductor.
|
4) Slide the connector body onto the cable and solder.
5) Screw the coupling ring onto the connector body.
Ш MICROPHONE
In addition to the microphones suggested in SECTION 4 - 1 MICRO-
PHONE, also useful for base operation are the following:
e SM-8
: Desk Microphone
eSM-10:
Compressor/Graphic Equalizer Microphone
Ш EXTERNAL
SPEAKER
In addition to the SP-10 mentioned in SECTION 4 - 1 EXTERNAL
SPEAKER,
the SP-7 Base Speaker is another optional speaker which
is best for operation from a fixed location.
