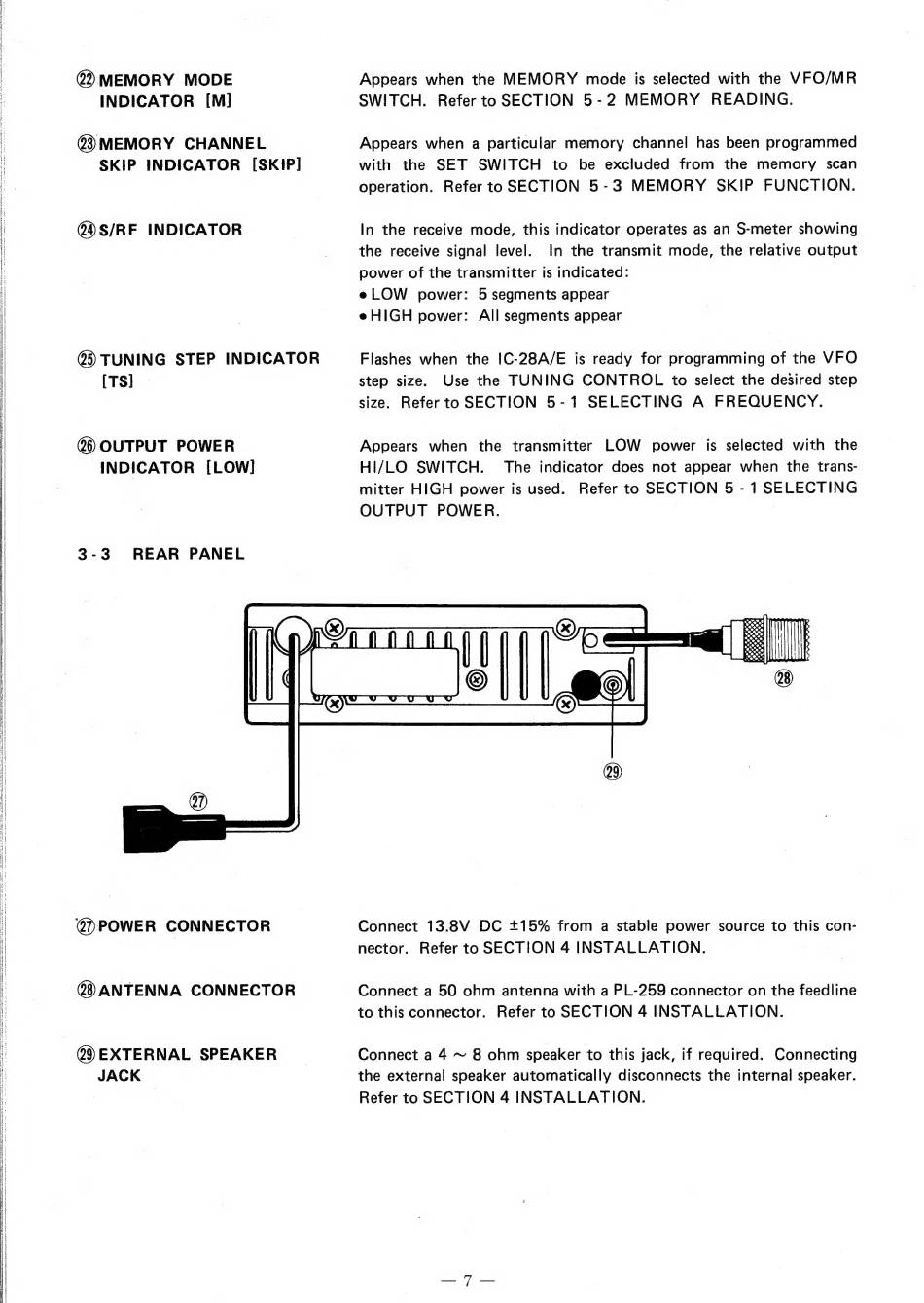

Icom IC-28A Instruction Manual page 10

09 MEMORY MODE
INDICATOR [M]
03 MEMORY CHANNEL
SKIP INDICATOR [SKIP]
Q5 S/RF INDICATOR
@ TUNING STEP INDICATOR
[TS]
06 OUTPUT POWER
INDICATOR [LOW]
3-3 REAR PANEL
Appears when the MEMORY mode is selected with the VFO/MR
SWITCH. Refer to SECTION 5-2 MEMORY READING.
Appears when a particular memory channel has been programmed
with the SET SWITCH to be excluded from the memory scan
operation. Refer to SECTION 5-3 MEMORY SKIP FUNCTION.
In the receive mode, this indicator operates as an S-meter showing
the receive signal level. In the transmit mode, the relative output
power of the transmitter is indicated:
e LOW power: 5 segments appear
e HIGH power: All segments appear
Flashes when the ІС-28А/Е is ready for programming of the VFO
step size. Use the TUNING CONTROL to select the desired step
size. Refer to SECTION 5- 1 SELECTING A FREQUENCY.
Appears when the transmitter LOW power is selected with the
HI/LO SWITCH. The indicator does not appear when the trans-
mitter HIGH power is used. Refer to SECTION 5 - 1 SELECTING
OUTPUT POWER.
0? PONER CONNECTOR
ОЗ ANTENNA CONNECTOR
09 EXTERNAL SPEAKER
JACK
Connect 13.8V DC +15% from a stable power source to this con-
nector. Refer to SECTION 4 INSTALLATION.
Connect a 50 ohm antenna with a PL-259 connector on the feedline
to this connector. Refer to SECTION 4 INSTALLATION.
Connect a 4 — 8 ohm speaker to this jack, if required. Connecting
the external speaker automatically disconnects the internal speaker.
Refer to SECTION 4 INSTALLATION.
