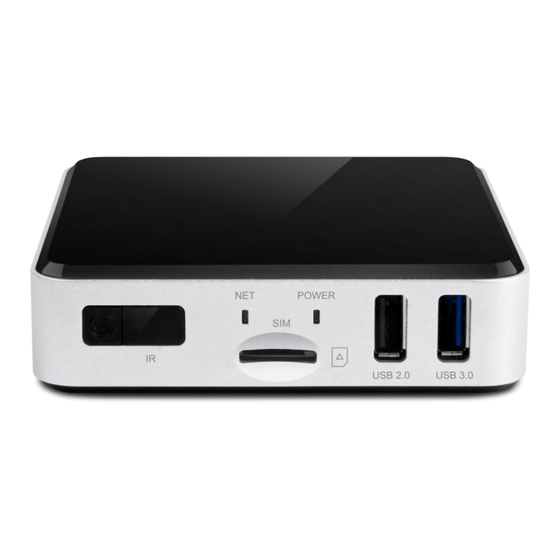

Geniatech APC390K User Manual

Android box enjoy tv quad core box
Hide thumbs

Advertisement

Quick Links

Download this manual
Android Box
ENJOY TV QUAD CORE Box
APC390K
User's Guide
Thank you for purchasing this Geniatech product.
.Before using it, be sure to read the precautions contained in this User's Guide.
.Keep the User's Guide in a safe place for future reference.
.For the most up-to-date information about this product, visit official website at
http://www.geniatech.com
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the APC390K and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Geniatech APC390K

Summary of Contents for Geniatech APC390K

  • Page 1 ENJOY TV QUAD CORE Box APC390K User’s Guide Thank you for purchasing this Geniatech product. .Before using it, be sure to read the precautions contained in this User’s Guide. .Keep the User’s Guide in a safe place for future reference.

  • Page 2: Table Of Contents

    Contents 1. Safety Information, P4-5 1.1 Warning, P4 1.2 Precautions, P4 1.3 Handling Cautions, P5 2. Introduction, P6-8 2.1 Package Contents, P6 2.2 Product Features, P6 2.3 Panel Introduction, P7 2.4 Remote Controller, P7 2.5 Setup Connection, P8 2.6 Display when Power Up, P8 3.
  • Page 3 7. Repairs , P28 8. Specification , P29 9. Trademark Notice , P30...

  • Page 4: Safety Information

    1. Safety Information Read and understand all instructions before using this product. If damage is caused by failure to follow the instructions, the warranty does not apply. 1.1 Warning To reduce the risk of electric shock, DO NOT remove the cover (or back). DO NOT attempt to repair the product, this could lead to the risk of injury, damage to the product.

  • Page 5: Handling Cautions, P5

    1.2.9 Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where it exits the apparatus. 1.2.10 Only use attachments/accessories specified by the manufacturer. 1.2.11 Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.

  • Page 6: Introduction

    2. Introduction 2.1 Package Contents Android industrial BOX - APC390K User’s Guide HDMI Cable IR Receiver Cable Audio cables No. 7 carbon battery IR Remote Controller (IR RC) Power Adapter, Input: AC100 ~ 240V, 50/60Hz, Output: 5V/2A 2.2 Product Features Quad Core ARM Cortex-A55 CPU, RAM 8GB DDR4(optional 2GB/4GB), ...

  • Page 7: Panel Introduction

    2.3 Panel Introduction Name Name Power Key USB 3.0 IR reception HDMI IN NET LED Micro SIM HDMI OUT Power LED RS232 USB 2.0 DC IN...

  • Page 8: Remote Controller

    2.4 Remote Controller ① Power ⑰ Fast forward ② Mute Stop ⑱ ③ Source in Home ⑲ ④ N/A ⑳ Info ⑤ Stretch CH +/- ○ ⑥ Loop playback ○ ⑦ Browser Menu ○ ⑧ Previous Back Zoom Out ○ ⑨...

  • Page 9: Setup Connection, P8

    2.5 Setup Connection Place APC390K on a flat platform near the TV, and make sure nothing block the remote control signal. 2.6 Display when Power Up 2.6.1 After power up, the TV will first show a green robot during loading. When loading is finished, it will go to Home screen.

  • Page 10: Settings

    3. Settings Using Navigation (4 directions), OK, EXIT, and Menu keys of Remote Controller to select the options, the option selected will be highlighted and confirmed by pressing OK key. Same operation for text input if needed. Select icon then press OK key to settings interface.
  • Page 11 Or fail to connect and need reset password. 3.1.3 Once build up the connection with a certain WiFi network successfully, APC390K will connect this WiFi network automatically when restart. Note: If factory reset, the password of WiFi network have to be reset.

  • Page 12: Ethernet Configuration, P12

    3.2 Bluetooth 3.3 Ethernet configuration Connect dongle and Router by RJ45 network cable. Press “ ON” in Ethernet setting, it will connect to network automatically.

  • Page 13: More

    3.4 More... 3.4.1 Portable hotspot 3.4.1.1 Enable Portable hotspot 3.4.1.2 Set up Wi-Fi hotspot Note: WiFi and hotspot connection can not be applied at same time. Disconnect WiFi and connect Ethernet while using hotspot function. 3.4.2VPN Build and set VPN...
  • Page 14 3.4.3 Miracast_Sink 3.4.4 Openwrt_Settings...
  • Page 15 3.5 Home 3.6 Display 3.6.1 Wallpaper...

  • Page 16: Sound & Notification, P16

    3.6.2 Font size Change the font size of OSD 3.7 Sound&notification...
  • Page 17 3.8 Apps List all apps installed. You can choose an application and force to shut down the app, uninstall the app, clear user data, move to SD card and clear cache data.

  • Page 18: Storage & Usb, P18

    3.9 Storage & USB Shows the storage used of the OS and SD card. 3.10 Memory...

  • Page 19: Hdmi Cec Function, P19

    3.11 HDMI CEC Functions 3.12 HDMI Rx Functions...
  • Page 20 3.13 Location 3.14 Security...
  • Page 21 3.15 Account 3.16 Google...

  • Page 22: Language And Input

    3.17 Language & input Change OSD language and input method. The default input method is android standard keyboard. If you are using our IR remote control, enter into “Default” option and switch to remote controller input method. 3.18 Backup & reset Back up my data: You can backup your application data, WiFi password and other settings.

  • Page 23: Date & Time,P23

    3.19 Date & time 3.20 Developer options.

  • Page 24: About Device,P24

    3.21 About device.

  • Page 25: Apps Install & Uninstall

    4. Apps Install & Uninstall On APC390K, you can install apps from Android Market over the Internet or other sources, such as other online sources, the internal storage and the USB storage device and SD card that you have mounted onto APC390K.

  • Page 26: Firmware Update

    5. Firmware Update You can download newest firmware from Geniatech Official website: www.geniatech.com...

  • Page 27: Trouble Shooting/Faq

    6. Trouble Shooting/FAQ 6.1 No Picture Refer to the TV user manual for how to select the correct video input channel. 6.2 USB Content cannot be read . The format of USB storage device is not supported . The supported memory size is 128G maximum. .
  • Page 28 We will provide you with the amount of the administration fee before we make a home visit or begin any work on your player. We recommend you read this manual throughly, search for a solution on line at www.geniatech.com, or contact Geniatech Customer Care before seeking to repair your player.

  • Page 29: Specification

    8. Specification Rockchip RK3566 Quad-core ARM Cortex-A55 CPU @1.8GHz (I) Mali-G52 GPU, OpenGL ES 1.1/2.0/3.2, OpenCL 2.0 and Vulkan 1.1. 2G DDR4（Optional 4G/8G LPDDR4） 8G~128G EMMC (storage TF card Max 512G) Android 11.0 / Linux Debian OS Optional DOLBY USB2.0x1+ USB3.0 x1 HDMI V2.0 + 1x HDMI input + 1x HDMI output DC Input...

  • Page 30: Trademark Notice

    9. Trademark Notice The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in United States and other countries. FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
