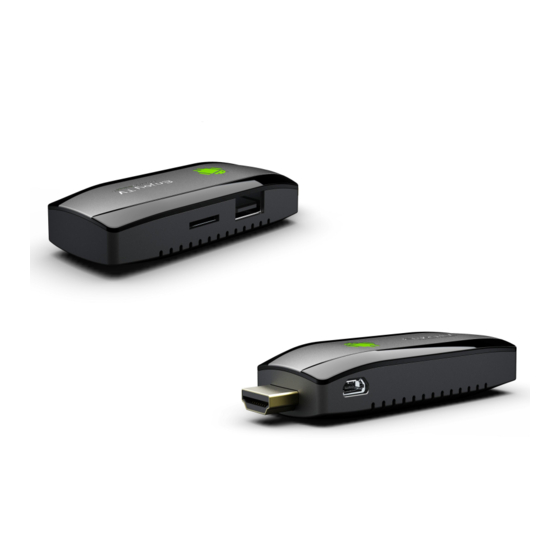

Geniatech ATV181 User Manual

Android box enjoy tv dual core stick
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

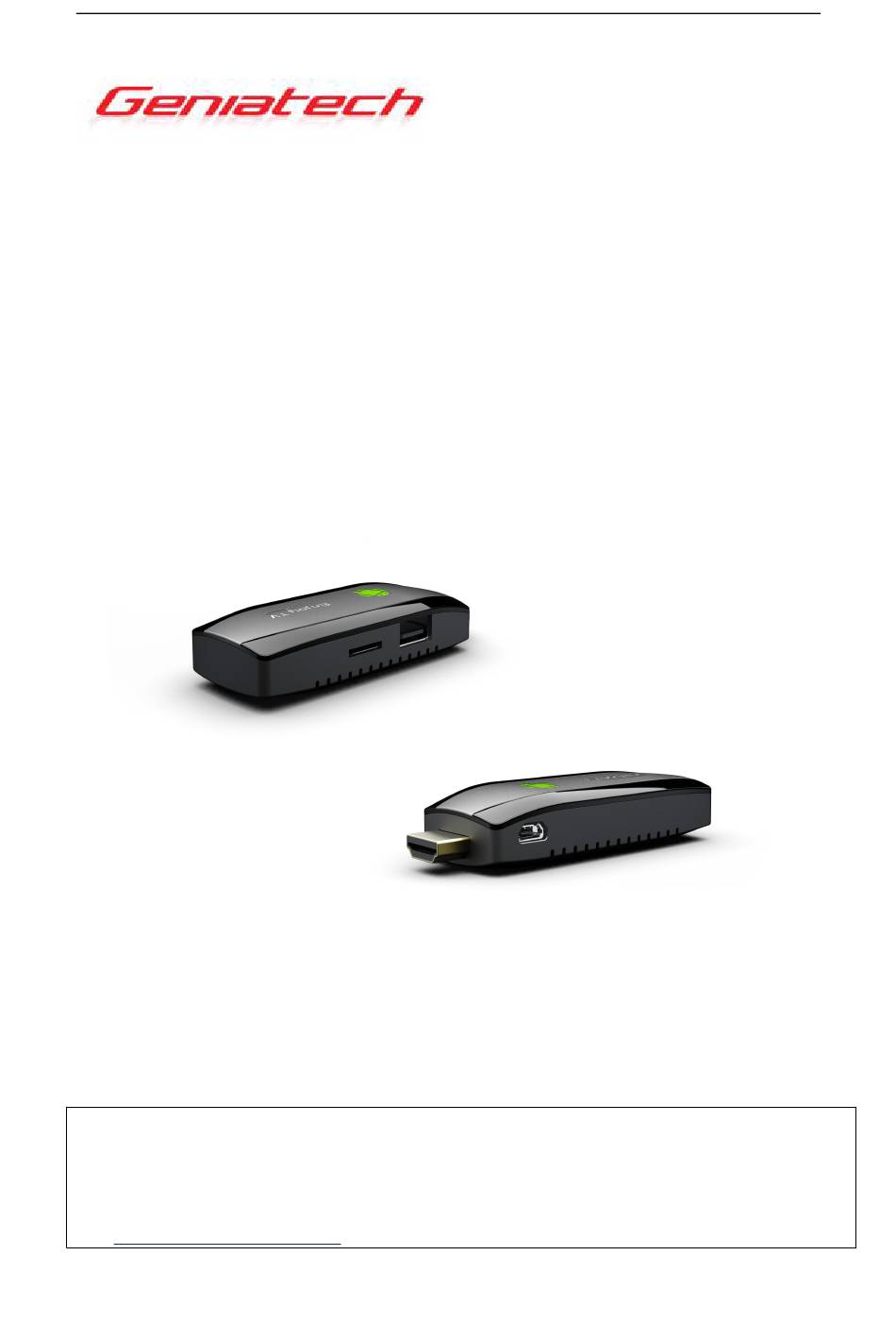

Android Box
ENJOY TV Quad Core Stick
ATV181
User's Guide
Thank you for purchasing this Geniatech product.
.Before using it, be sure to read the precautions contained in this User's Guide.
.Keep the User's Guide in a safe place for future reference.
.For the most up-to-date information about this product, visit official website at
http://www.geniatech.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATV181 and is the answer not in the manual?

Questions and answers

Related Manuals for Geniatech ATV181

Summary of Contents for Geniatech ATV181

  • Page 1 ENJOY TV Quad Core Stick ATV181 User’s Guide Thank you for purchasing this Geniatech product. .Before using it, be sure to read the precautions contained in this User’s Guide. .Keep the User’s Guide in a safe place for future reference.

  • Page 2: Table Of Contents

    Contents 1. Safety Information, P3-4 1.1 Warning, P3 1.2 Precautions, P3 1.3 Handling Cautions, P4 2. Introduction, P5-7 2.1 Package Contents, P5 2.2 Product Features, P5 2.3 Panel Introduction, P6 2.4 Remote Controller, P6 2.5 Setup Connection, P7 2.6 Display when Power Up, P7 3.

  • Page 3: Safety Information

    1. Safety Information Read and understand all instructions before using this product. If damage is caused by failure to follow the instructions, the warranty does not apply. 1.1 Warning To reduce the risk of electric shock, DO NOT remove the cover (or back). DO NOT attempt to repair the product, this could lead to the risk of injury, damage to the product .

  • Page 4: Handling Cautions, P4

    convenience receptacles, and the point where it exits the apparatus. 1.2.10 Only use attachments/accessories specified by the manufacturer. 1.2.11 Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used , use caution when moving the cart/apparatus combination to avoid injury from tip-over.

  • Page 5: Introduction

    2.4G wireless Remote Controller USB wire/wireless Mouse & Keyboard 2.2 Product Features HDMI video output ,connect HDTV with Quad Core Stick ATV181 for HD  1080P video playback Quad Core A9, 1.6~2.0GHz, RAM 1G , ROM built in 8G flash memory，...

  • Page 6: Panel Introduction, P6

    2.3 Panel Introduction 2.4 Remote Controller Note: Button Battery 2025 3V insert with correct polarity (+/-).

  • Page 7: Setup Connection, P7

    2.5 Setup Connection Place ATV181 on a flat platform near the TV, and make sure nothing block the remote control signal. 2.6 Display when Power Up 2.6.1 After power up, the TV will first show a green robot during loading. When loading is finished, it will go to Home screen.

  • Page 8: Settings

    Or fail to connect and need reset password. 3.1.3 Once build up the connection with a certain WiFi network successfully, ATV181 will connect this WiFi network automatically when restart. Note: If factory reset, the password of WiFi network have to be reset.

  • Page 9: Ethernet, P9

    3.2 Ethernet Connect Box and Router by RJ45 network cable. Press “ ON” in Ethernet setting, it will connect to network automatically.

  • Page 10: Date Usage, P10

    3.3 Date usage Show data usage information. 3.4 More... 3.4.1 VPN Build and set VPN...
  • Page 11 3.4.2 Portable hotspot 3.4.2.1 Enable Portable hotspot 3.4.2.2 Set up WiFi hotspot Note: WiFi and hotspot connection can not be applied at same time. Disconnect WiFi and connect Ethernet while using hotspot function.
  • Page 12 3.5 Sound 3.6 Display 3.6.1 Auto Brightness Auto set brightness to save power 3.6.2 Font size Change the font size of OSD...
  • Page 13 3.7 Storage Shows the storage used of the OS and SD card. 3.8 Apps List all apps installed. You can choose an application and force to shut down the app, uninstall the app, clear user data, move to SD card and clear cache data.

  • Page 14: Location Access,P14

    3.9 Permissions 3.10 Location access...

  • Page 15: Language & Input, P15

    3.11 Security 3.12 Language & input Change OSD language and input method. The default input method is android standard keyboard. If you are using our IR remote control, enter into “Default” option and switch to remote controller input method.

  • Page 16: Backup & Reset, P16

    3.13 Backup & reset Back up my data: You can backup your application data, WiFi password and other settings. Factory data rest: You can reset all the settings and apps to factory default. Note: You might want to backup important data before resetting the box. Once you choose to rest to factory default, all data/apps will be deleted.

  • Page 17: Date & Time, P17

    3.15 Date & Time Set date, time, time zone and time format 3.16 Accessibility...

  • Page 18: About Device, P18

    3.17About device. Firmware version under build number.

  • Page 19: Apps Install & Uninstall

    4. Apps Install & Uninstall On ATV181, you can install apps from Android Market over the Internet or other sources, such as other online sources, the internal storage and the USB storage device and SD card that you have mounted onto ATV181.

  • Page 20: Firmware Update

    5. Firmware Update You can download newest firmware from Geniatech Official website: www.geniatech.com...

  • Page 21: Trouble Shooting/Faq

    6. Trouble Shooting/FAQ 6.1 No Picture Refer to the TV user manual for how to select the correct video input channel. 6.2 USB Content cannot be read . The format of USB storage device is not supported . The supported memory size is 32G maximum. .

  • Page 22: Repairs

    We will provide you with the amount of the administration fee before we make a home visit or begin any work on your player. We recommend you read this manual throughly, search for a solution on line at www.geniatech.com, or contact Geniatech Customer Care before seeking to repair your player.

  • Page 23: Specification

    8. Specification Quad Core A9r4 CPU @ 2.0GHz Mali 450 @600MHz 1G DDR3 Android 4.4OS Optional USB2.0 x1 + Micro USB x1 HDMI V1.4a DC Input Micro USB Power Supply SD Slot Max: 32G Video Output HDMI Audio Output HDMI IR receiver USB to Ethernet Adaptor (optional) WiFi...

  • Page 24: Trademark Notice

    9. Trademark Notice The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in United States and other countries.
