Android Box

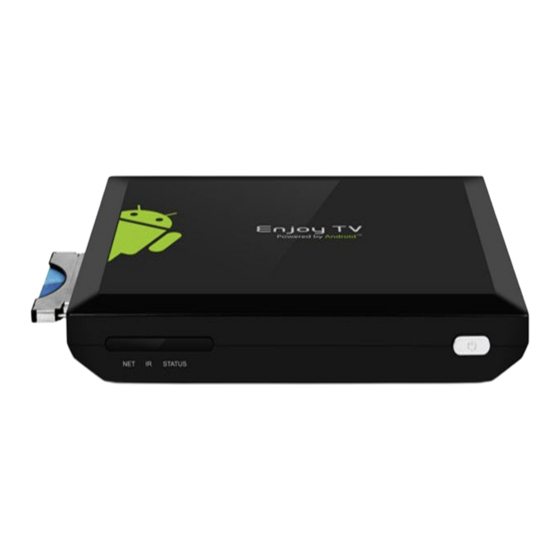

ENJOY TV DUAL CORE Hybrid Box
ATV1300CI
User's Guide
Thank you for purchasing this Geniatech product.
.Before using it, be sure to read the precautions contained in this User's Guide.
.Keep the User's Guide in a safe place for future reference.
.For the most up-to-date information about this product, visit official website at
http://www.geniatech.com
1
Advertisement
Table of Contents
Related Manuals for Geniatech ATV1300CI
Summary of Contents for Geniatech ATV1300CI
- Page 1 ENJOY TV DUAL CORE Hybrid Box ATV1300CI User’s Guide Thank you for purchasing this Geniatech product. .Before using it, be sure to read the precautions contained in this User’s Guide. .Keep the User’s Guide in a safe place for future reference.
-
Page 2: Table Of Contents
Contents 1. Safety Information, P3-4 1.1 Warning, P3 1.2 Precautions, P3 1.3 Handling Cautions, P4 2. Introduction, P5-7 2.1 Package Contents, P5 2.2 Product Features, P5 2.3 Panel Introduction, P6 2.4 Remote Controller, P6 2.5 Setup Connection, P7 2.6 Display when Power Up, P7 3. -
Page 3: Safety Information
1. Safety Information Read and understand all instructions before using this product. If damage is caused by failure to follow the instructions, the warranty does not apply. 1.1 Warning To reduce the risk of electric shock, DO NOT remove the cover (or back). DO NOT attempt to repair the product, this could lead to the risk of injury, damage to the product . -
Page 4: Handling Cautions, P4
convenience receptacles, and the point where it exits the apparatus. 1.2.10 Only use attachments/accessories specified by the manufacturer. 1.2.11 Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used , use caution when moving the cart/apparatus combination to avoid injury from tip-over. -
Page 5: Introduction
2. Introduction 2.1 Package Contents Enjoy TV Dual Core Hybrid Box - ATV1300CI User’s Guide HDMI Cable AV Cable Optional Cables RJ45 Network cable IR Remote Controller (IR RC) Optional Remote Controller 2.4G wireless Remote Controller USB wire/wireless Mouse & Keyboard Power Adapter, Input: AC100 ~ 240V, 50/60Hz, Output: 12V, 1.5A... -
Page 6: Panel Introduction, P6
2.3 Panel Introduction 2.4 Remote Controller Note: Button Battery 2025 3V insert with correct polarity (+/-). -
Page 7: Setup Connection, P7
2.5 Setup Connection Place ATV1300CI on a flat platform near the TV, and make sure nothing block the remote control signal. 2.6 Display when Power Up 2.6.1 After power up, the TV will first show a green robot then change to “android”... -
Page 8: Settings
3. Settings Using Navigation (4 directions), OK, EXIT, and Menu keys of Remote Controller to select the options, the option selected will be highlighted and confirmed by pressing OK key. Same operation for text input if needed. Select icon then press OK key. 3.1 WiFi 3.1.1 It will automatically scan ambient WiFi networks when select “ON”. -
Page 9: Date Usage, P9
3.3 Date usage Show data usage information. 3.4 More... 3.4.1 VPN Build and set VPN... - Page 10 3.4.2 Tethering & Portable hotspot 3.4.3 Proxy settings Setup proxy server 3.5 Sound 3.6 Display 3.6.1 Font size Change the font size of OSD...
- Page 11 3.6.2 Wireless display 3.7 Storage Shows the storage used of the OS and SD card. 3.8 Apps List all apps installed.
- Page 12 You can choose an application and force to shut down the app, uninstall the app, clear user data, move to SD card and clear cache data. 3.9 Location access...
-
Page 13: Language & Input, P13
3.10 Security 3.11 Language & input Change OSD language and input method. The default input method is android standard keyboard. If you are using our IR remote control, enter into “Default” option and switch to remote controller input method. -
Page 14: Backup & Reset, P14
3.12 Backup & reset Back up my data: You can backup your application data, WiFi password and other settings. Factory data rest: You can reset all the settings and apps to factory default. Note: You might want to backup important data before resetting the box. Once you choose to rest to factory default, all data/apps will be deleted. -
Page 15: Date & Time, P15
3.14 Date & Time Set date, time, time zone and time format 3.15 Accessibility... -
Page 16: Developer Options, P16
3.16 Developer options If user want to do some debugging on box by ADB, enable USB debugging, you will get ADB function by Ethernet or WiFi network. 3.17 About device. Firmware version under build number. -
Page 17: Apps Install & Uninstall
4. Apps Install & Uninstall On ATV1300CI, you can install apps from Android Market over the Internet or other sources, such as other online sources, the internal storage and the USB storage device and SD card that you have mounted onto ATV1300CI. -
Page 18: Firmware Update
5. Firmware Update You can download newest firmware from Geniatech Official website: www.geniatech.com... -
Page 19: Trouble Shooting/Faq
6. Trouble Shooting/FAQ 6.1 No Picture Refer to the TV user manual for how to select the correct video input channel. 6.2 USB Content cannot be read . The format of USB storage device is not supported . The supported memory size is 32G maximum. . -
Page 20: Repairs
We will provide you with the amount of the administration fee before we make a home visit or begin any work on your player. We recommend you read this manual throughly, search for a solution on line at www.geniatech.com, or contact Geniatech Customer Care before seeking to repair your player. -
Page 21: Specification
8. Specification Dual core ARM CORTEX A9 1.5GHz,3D engine Mali 400MP2 @400MHz 1G DDR3 4G, built in 2G-32G Flash memory(optional) Android 4.2 OS Language Multi-Language Storage File System FAT32,NTFS Size 168X132X21mm Net Weight 402g USB2.0x3, Support Mobile HDD, wired/wireless mouse and keyboard HDMI V1.4a. -
Page 22: Trademark Notice
9. Trademark Notice The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in United States and other countries.
