Summary of Contents for LIFE home integration ACER DL

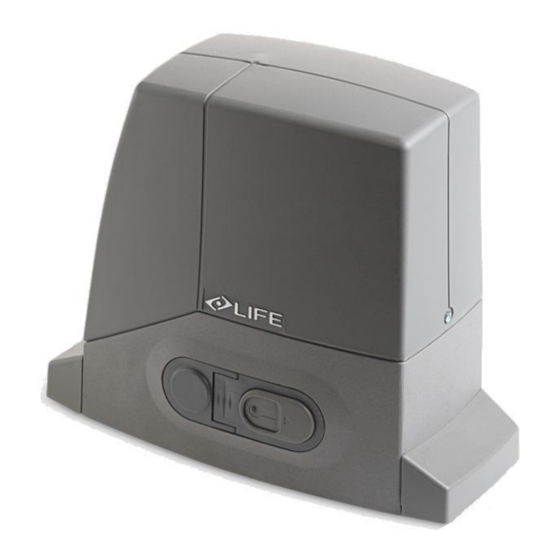

- Page 1 ACER DL ELECTROMECHANICAL OPERATOR FOR SLIDING GATES INSTRUCTIONS FOR INSTALLATION, USE AND MAINTENANCE AC8R DL AC12R DL...
-
Page 2: Standard Installation
STANDARD INSTALLATION Fig.1: Components and devices of a typical automation. AC001 Fig.2: Description of the contents of the ACER pack. -
Page 3: Technical Features
TECHNICAL FEATURES LIFE home integration reserves the right to make changes to technical characteristics at any time and without prior notice, without changing its intended use and function. ACER: Irreversible electromechanical operator for sliding gates with optical/magnetic encoder and built-in ECU Version: ECU - 24 V d.c. - Page 4 1.2 Installing operator components: positioning and installation of the anchorage plate The area in which the operator is installed must provide adequate space for performing maintenance and manual release operations. a) Adhere to the dimensions in g.2. Fig. (2) AC003a Fig.
- Page 5 1.3 Installing operator components: positioning and installation of the operator a) Remove the lid (2) of the operator by loosening the screws (1); rest the operator on the anchorage plate and manually turn the 4 M10 screws (7) with the relative washers through 3/4 of a revolution. See g. (5.1). b) Vertically adjust the operator using the 4 dowels (8) levelling it with the spanner (9);...
-
Page 6: Wiring And Connections
2.0 WIRING AND CONNECTIONS • The operator must be connected to the relative Life electronic control unit (ECU). • All wiring and connection operations must be carried out with the control unit disconnected from the electricity supply. If the disconnection device is not in view, display a sign reading: “ATTENTION: MAINTENANCE WORK IN PROGRESS”. - Page 7 (and will hereinafter be referred to as manufacturer) and the owner of all rights concerning this The Manufacturer’s information required by Machinery Directive 98/37/EC is given below: • Manufacture: LIFE home integration • Address: Via Sandro Pertini 3/5 – 31014 COLLE UMBERTO (TV) Italia • Telephone: + 39 0438 388592 •...
-
Page 8: Preliminary Checks
Instructions and warnings for installation • Before commencing installation read the SAFETY INSTRUCTIONS AND WARNINGS chapter carefully. • The person who installs the operator is responsible for performing risk analysis and regulating the automation’s safety devices consequentially. • Before commencing installation, check whether further devices or materials are needed to complete the automation in order to suit the specific situation in which it will be used. •... - Page 9 SPECIFIC DESCRIPTION ACER...
- Page 10 5RI2310000 ACER 5RI2330000 AC4R-AC6R-AC4-AC6-AC8 5RI2370000 AC4RM-AC6RM-AC4M-AC6M AC12-AC12R AC8M-AC12M-AC12RM 5RI2350000 AC8A 24 5RI2380000 AC8A 24M 5RI2340001 AC3RM24DL-AC6RM24DL 5RI2440001 AC3RMDL 5RI2450000 AC4 24 5RI2420000 AC4R-AC4R 5RI2460000 AC6 24 5RI2430000 AC6R-AC6R 5RI2410000 AC8-AC8R 5RI2470000 AC8 24 5RI3440000 AC12-AC12R 5RI3450000 AC6RM24 DL 5RI2480000 ACER R 5RI2490000 ACER RM 5RI2500000 ACER 5RI2510000 AC4-AC4R...
- Page 11 5RI2570000 ACER 5R2580000 ACER 5RI2590000 ACER 5RI2630000 AC4-AC6-AC8-AC8R-AC4R 5RI2650000 AC3RM24 DL 5RI2600000 AC4-AC6-AC4R-AC6R-AC4A24 ACA 24-AC6 24-AC6R AC6A24-AC6RM24DL AC6RM24DL 5RI2610000 AC3RM24DL 5RI2640000 AC8A 24-AC8A 24M 5RI2620000 AC8 24 5RI2620000 AC8-AC12-AC8R-AC12R 5RI268000 ACER 5RI2690000 AC4-AC6-AC8 5RI2670000 AC4R-AC6R-AC4 24P 5RI268000 ACER SIMPLY 5RI2700000 AC4A 24-AC6A 24 5RI2720000 AC8A 24-AC3/6RM24DL 5RI2730000 AC4R-AC6R-AC8R-AC12R...
-
Page 12: Declaration Of Conformity
Declaration of conformity under Directive 98/37/EC, appendix II, part B (Manufacturer’s Declaration of CE Conformity) LIFE Home Integration Via S.Pertini 3/5 31014 COLLE UMBERTO (TV) declares that the following product: ACER operator for sliding gates Satisfies the essential requisites established in the following directives: •... - Page 13 RG1R DL RG1R UNI DL CONTROL UNIT FOR AUTOMATIONS FITTED WITH 230 V MOTORS INSTRUCTIONS AND WARNINGS FOR INSTALLATION, USE AND MAINTENANCE.
- Page 14 STANDARD INSTALLATION Components and devices of a typical automation. 5RI122000 2AS3710000...
- Page 15 AERIAL SKANT - SKANX RG58-50ohm COMMANDS COMMON N.C. STOP N.O. OPEN N.O. CLOSE N.O. STEP N.C. PHOTO1 N.C. PHOTO 24 Vac 3W max INDICATOR LIGHT EXIT 24 Vac 200 mA max 230 Vac 25W max FLASHING 230 Vac 40W max COUTESY LYGHT 230 Vac RG1 DL...
-
Page 16: Energy Saving
Energy Saving In order to save energy, we have introduced the function Energy Saving. 10 minutes after the end of programmation of the control board, the LED of the keyboard go out and it is no more possible to use the control board. To get the control board working again, switch it off and on. -
Page 17: Control Unit Connections
PROGRAMMING RADIO TRANSMITTERS PROGRAMMING RADIO TRANSMITTERS PHASE 3 TOTAL OPENING COMMAND TOTAL OPENING COMMAND AACKNOWLEDGMENT OF THE TOTAL OPENING RADIOCOMMAND • • Press the radio icon button (top left) once the Press the radio icon button (top left) once the left green led will light and the first (L to R) of left green led will light and the fi... - Page 18 1.1.1 Control unit wiring diagram of the lower part Terminals Description BLACK CABLE COMMON ELECTRONIC AND AUXILIARY POWER SUPPLY WHITE CABLE GEAR MOTOR RELEASE SWITCH ORANGE CABLE BLACK CABLE STOP PLATE and ENCODER RED CABLE COMMON CLOCKWISE ROTATION BLACK COMMON DARK BLUE 230Vac MOTOR OUTPUT GREEN...
- Page 19 List of electric cables The cables needed may vary depending on the installation and type and quantity of devices installed. The cables used in the installation must be IEC 60335 compliant. Connection Pos. Type of cable Electricity supply line 3x1,5 mm cable Power supply Cable supplied with Schuko socket...
- Page 20 DELETING RADIO CONTROL TRANSMITTERS RADIO CONTROL MANAGEMENT The control unit is fitted with a built-in radio receiver with a 1 channel 1000-code memory, with a 433.92 MHz frequency with LIFE Rolling Code and Auto code encoding. Resetting an initialised radio control DELETING A SINGLE RADIO TRANSMITTER DELETING A SINGLE RADIO TRANSMITTER •...
-
Page 21: Option Menu
3.1.2 Automatic reclosure Automatic reclosure is activated after a preset PAUSE TIME. In this mode, by pressing the ‘STEP’ key, the automation changes its motion according to the sequence 1 – OPEN 2 – PAUSE 3 – CLOSE 4 - PAUSE; for example, if the automation is opening and one selects the step command on the remote control, the automation stops in pause;... -
Page 22: Courtesy Light
Functions 3.2.1 Courtesy light The courtesy light function switches a light on during any automation movement. The light remains on after the last manoeuvre for a 30-second period. 3.2.2 Deceleration in opening and closure The automation decelerates in the final stretches of opening and closureo. •... -
Page 23: Troubleshooting
TROUBLESHOOTING This chapter describes the most frequently encountered problems with the solutions for resolving them. In certain cases, it is explicitly envisaged that operations be performed by a professional fitter: these indications must be followed in order to avoid exposing oneself to serious risks. Malfunctions indicated on the control unit The malfunctions detected by the control unit are indicated through the lighting of the 5 LEDs on the display. -
Page 24: General Information
SAFETY INSTRUCTIONS AND WARNINGS chapter. With the aim of improving its products, LIFE home integration reserves the right to bring about alterations to them at any time, without giving prior notice. This document conforms to the state of the automation at which it is provided when released for sale. -
Page 25: First Usage
TESTING AND TRIAL RUN • The testing and trial run must be performed by a COMPETENT PERSON supervised and aided by a PROFESSIONAL FITTER. It is the responsibility of the person who tests and sets up the automation (of which the control unit is a part) to perform the checks required in accordance with the risks existing and to check conformity with the relevant legislation and standards, in particular with EN standard 12445, which governs the methods for performing trials on gate automations and EN standard 12453 that specifies the performance requisites concerning safety of use. -
Page 26: Routine Maintenance
MAINTENANCE 10.1 Maintenance instructions and warnings • Once the automation has been tested, the parameters set must not be altered. If further adjustments (e.g. alterations to the voltage value) are made, ALL THE CHECKS REQUIRED FOR TESTING AND COMPLIANCE WITH STANDARDS MUST BE REPEATED. •... - Page 27 Declaration of conformity under Directive 98/37/EC, appendix II, part B (Manufacturer’s Declaration of CE Conformity) LIFE Home Integration Via S.Pertini 3/5 31014 COLLE UMBERTO (TV) declares that the following product: RG1R DL control unit satisfies the essential requisites established in the following directives: •...
- Page 28 Address: Factory 19, 5 Lyn Parade, Prestons NSW 2170 Telephone: + 61 2 9607 4100 Telefax: + 61 2 9600 8882 http www.homelife.net.au...
