Hella 2PT 980 670-801 / 5617 Instruction Sheet

Important Notes for Installer and
Vehicle Owner
Introduction
This Multivolt LED lamp offers many advantages over conventional bulb lamps. Significantly reduced
power consumption, ultra long life and high tolerance to shock and vibration make these Hella LED lamps
an outstanding investment into your safety.
Daytime Running Lamps
Daytime running lamps are not a substitute for dipped beam headlights at dusk/dawn or during darkness.
It is important for the installer to check that the daytime running lamps illuminate only when the vehicle
lighting is switched OFF and the ignition is switched ON.
Compatibility to existing electrical systems
It is important for the installer to ascertain the compatibility of the low power consumption LED lamps with
the electrical and/or electronic systems of the complete vehicle. In most cases the small additional power
consumption of the daytime running lamp will not impose significant demands to the electrical system of
the vehicle.
Electromagnetic Compatibility (EMC)
This LED lamp in an electronic device. The electrical circuits contain components that suppress possible
interference, both emission as well as susceptibility, to the technical requirements for the application of the
Regulatory Compliance Mark (RCM). Additionally the electrical circuits conform to the limits prescribed in
UNECE Vehicle Regulation No. 10.
Protection against damage due to voltage spikes
This LED lamp is protected against damage from positive voltage spikes caused by events such as load
dump conditions specified in ISO 7637-2.
The lamp is protected against reverse polarity connection and reverse voltage spikes up to minus 1000 volts.
Electric Welding
Electric Welding may damage the LED lamps. For LED lamps, Hella recommends the negative connection
to be wired isolated from the vehicle chassis. If the lamp uses the chassis as the earth return it is
recommended that this earth return is disconnected during electric welding.
Warranty Statement
Congratulations! The product you have selected comes from Hella - one of the world's leading manufacturers of lighting products. The product
comes with a 5 year warranty from end user purchase covering faults in materials, components or workmanship.
In the unlikely event that you should experience a confirmed warranty related problem with your purchase, Hella will, at its discretion, either repair,
replace or refund the purchase price of the product.
Warranty services may be obtained by returning the product within the warranty period to the Hella Dealer where the product was originally
purchased. This warranty is in addition to and does not preclude any other rights or remedies available to the consumer under any local
legislation related to the provision of goods or services.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for
a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or
replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
This warranty does not cover:
1.) Claim/s as a result of normal wear and tear or of any modifications and / or alterations to the product in any shape or form.
2.) Claim/s as a result of non-compliance of the assembly, service and operating instructions and/or any unfit or improper use.
3.) Any expenses incurred in the process of making the claim.
Note: For lamps sold in Australia, warranty services are provided by Hella Australia Pty Ltd., 4 Hargrave Place, Mentone, Victoria, 3194 Australia.
Customer Service 1800 061 729 email: custservice@hella.com
For general comments about Hella's products please contact us on E-mail at techfeedback@hella.co.nz
https://www.hella.com/hella-au/assets/media_global/IAM_Statement_of_Warranty.pdf
INSTRUCTION SHEET
2PT 980 670-801 / 5617
for:
APPLICATION AND
MOUNTING INSTRUCTIONS
LED DAYTIME RUNNING LAMP (DRL) KIT
Multivolt 9 - 33V DC

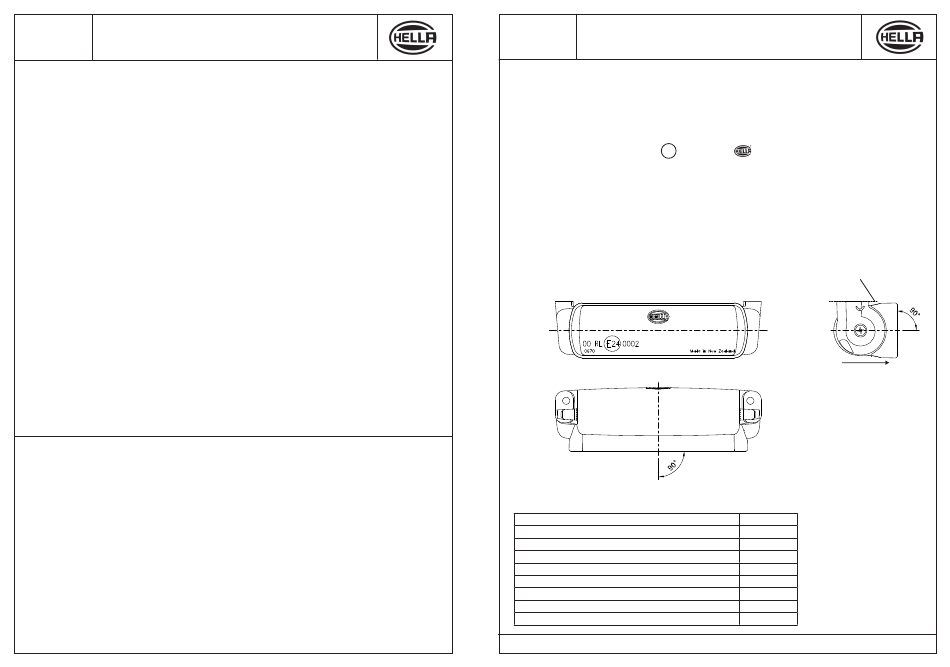

Lens Marking and Installation Requirements
This lamp, identified by lens marking E 0002 and the
24
Regulation No. 87 for Daytime Running Lamp.
• The reference axis of the lamp must be parallel to the longitudinal axis of the vehicle (i.e. The lens of
the lamp should be vertical to the ground and perpendicular to the direction of travel).
• The centre line of the lamp must be parallel to the ground.
• Lamp must be visible from 20° inboard and outboard, as well as from 10° above and below the
horizontal axis.
• Two lamps are required for motor vehicles.
• Lamps must be mounted no less than 250 mm and no more than 1500 mm above the ground.
• Lamps should not be mounted closer than 600 mm together (400 mm if vehicle width is less than
1300 mm).
Notes: Please refer to ECE Regulation No. 48 for more details.
Centre Line
Reference Axis
LENS IDENTIFICATION NUMBER: 00 RL E24 0002
Product Contents
Daytime Running Lamp with 0.5 m cable
DRL Foot A
DRL Foot B
Stainless Steel DRL Foot Fastening Screw
Stainless Steel DRL Mounting Bolt, Nut & Washer
3-Pole Super Seal Socket Connector
Insulated Crimp Terminal Cable Connector
Vehicle Cable Loom
Application and Mounting Instructions
Hella-New Zealand Limited, Auckland.
logo was manufactured to comply with ECE
Lamp mounting surface
Reference Axis
Direction of travel
x2
x2
x2
x4
x4
x2
x3
x1
x1
980 703-17 / 06.19
