Atlas Copco H185 VSD APP Instruction Manual page 82

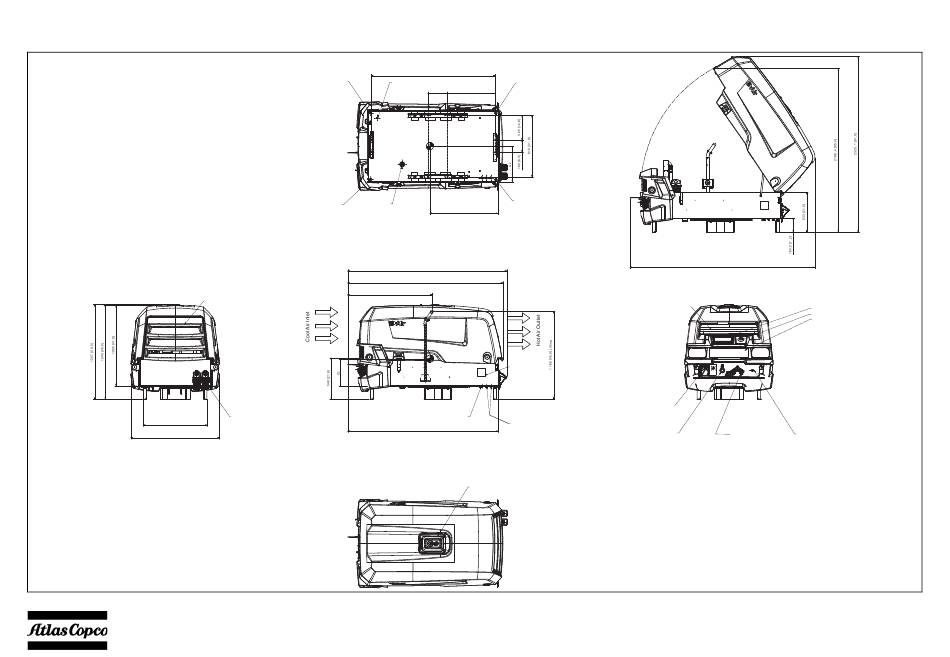

Dimensions drawing - 9822 1266 79
Baffles
845 [33,3]
1173 [46,2]
Drain Frame M18
Drain Aftercooler G1/4"
Drain Oil Vessel G2"
Drain Frame M18
1118,8 [44,0](Lifting)
Wheel chocks
1992,5 [78,445]
1640 [64,6]
Drain Frame M18
260 [10,2] 630 [24,8]
Drain Frame M18
Yz
2107 [82,9]
2054 [80,9]
Data Plate
Drain Element 3/8"
Drain Cooler G3/8"
Access to lifting eye
- 82 -
2445 [96,265]
Baffles
Control Panel
Emergency Stop
Licence Plate
Socket box
Air outlet valve G 1 1/2"
Air Outlet Valves G 3/4" (3x) Bypass Valve G 3/4"
NOTE:
- Dimensions in bracket [ ] are in inches.
