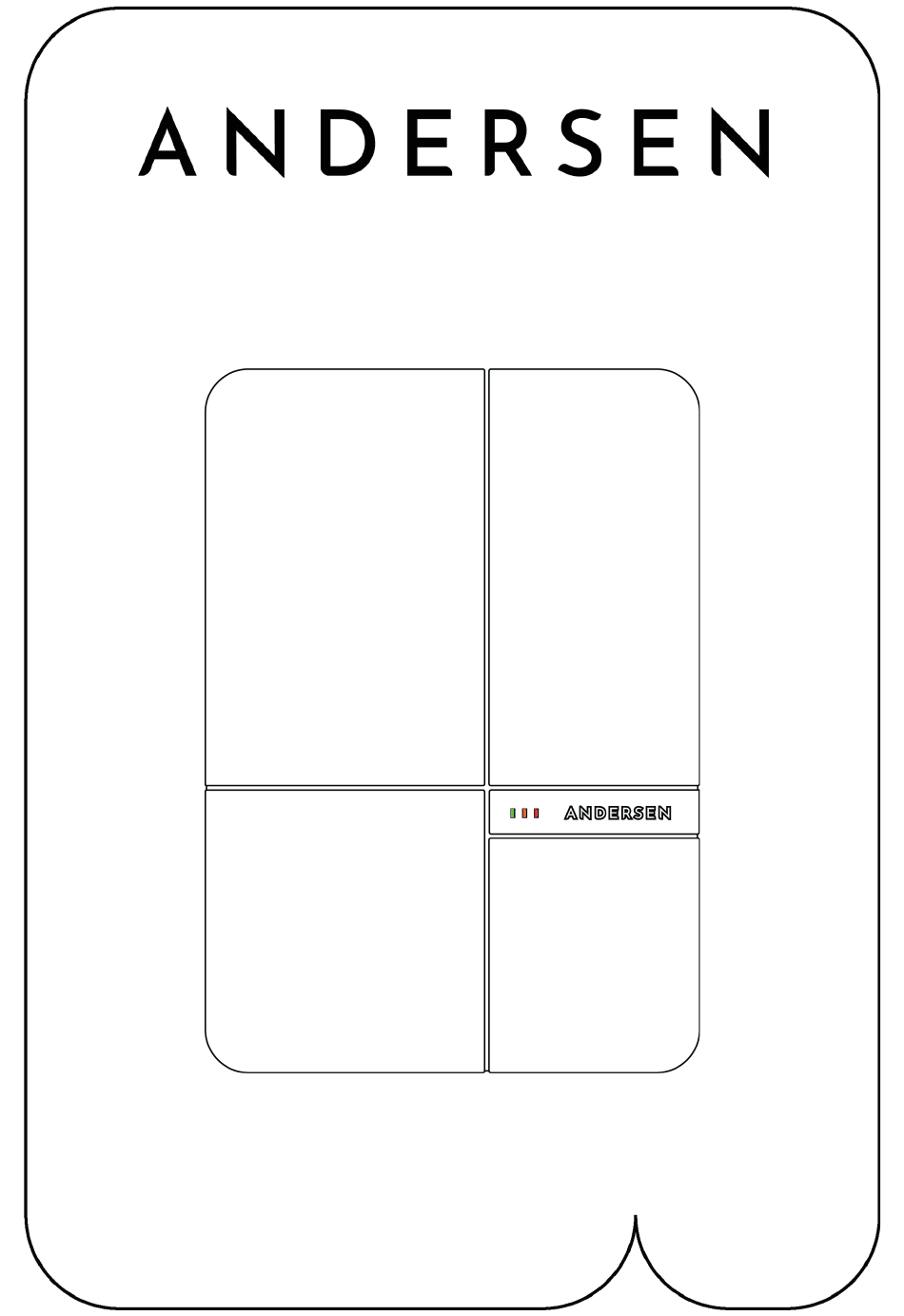

- Page 1 Installer manual www.andersen-ev.com Revision 2.6...
- Page 2 ANDERSEN DISCLAIMER The Andersen A2 should only be installed by an electrician with the appropriate knowledge and qualifications. The installation must comply with the current editions of the IET Code of Practice for Electric Vehicle Charging Equipment installation and IET BS 7671 Requirements for Electrical Installations.
- Page 3 Needed 2mm & 3mm Hex keys Philips head Screwdriver (cross head) M3 x16mm M5 x12mm M5 x18mm long screw long screw counter sunk penny washer screw washer SETUP MULTI FUNCTION OPERATION Reset RCM (Two button presses) Enter Network setup mode (Three button presses) Exit Network setup mode (One Multi function...
- Page 4 OPERATION LED STATUS System powering up. (Red, Amber, Green LED flash together twice a second) Standby State (solid green) Vehicle connected state (solid green & solid amber) Vehicle charging state (solid amber) Charge point locked or awaiting scheduled charge (solid green & solid red) Wi-fi Setup (Amber LED flashes once per second) ERROR &...
- Page 5 Step 1: Fix A2 unit to the wall The mounting hardware (screws, wall plugs etc) must be selected 6mm penny washer to be appropriate for the specific structure of the mounting wall. 6mm washer We don’t provide these screws. Note:...
- Page 6 Step 2: Prepare A2 core for supply cable entry Bottom entry. Drill out cable entry section with 20-25mm hole saw, see fig 1 Fig 1 Note: This step can Fig 2 be done once mounted on to the wall.
- Page 7 Step 3: Terminate supply power cable Torque setting must be 1.2Nm. Check both sides of connector block. TIP: Recommended supply cable type is CAT5e/6 EV Cable. Ensure the gland is tightened after cable installation.
- Page 8 Step 4: Terminate sensor cables Solar Advanced CT Solar Basic/Adaptive sensor cable* Fuse CT sensor cable* Optional Optional Note: Fit CT clamp to PV inverter supply. Orientation can be determined during testing. Please refer to installer commissioning guides to complete this setup correctly.
- Page 9 Torque setting must be 1.2Nm. Check both sides of connector block. Important. Ensure cable stress relief clamp is correctly tightened Important. Make sure the gland is tightend after cable Please note: On older A2 units installation! orange cable is not used.
- Page 10 Step 6: Fit weather project covers Torque setting must be 0.7Nm A: Fit output terminal cover. Ensure seals are correctly positioned and fixing screws correctly torqued to 0.7Nm B: Fit input terminal cover. Ensure seals are correctly positioned and fixing screws correctly torqued to 0.7Nm C: Fit cable entry cover.
- Page 11 Step 7: Fit side panels Fit side panels in place TIPS: Once side panels are located in the Please remember the unit slots apply pressure on the top and must be mounted as flush & outwards. Tighten the holding screws on flat against the wall as unit brushes to clamp the side panel in.
- Page 12 Step 8: Fit cable brushes Secure side panels by fitting brush panels and fixing screws to 0.7Nm...
- Page 13 Step 9: Fit lid panel B: Insert and tighten lid A: Install lid panel into fixing screws the lid core. TIP: Position the lid evenly between the side panels which have already been fitted. Squeeze these parts together until it clicks in to place.
- Page 14 Step 10: Fit bottom panel B: Tighten screws to 0.7Nm A: Fit bottom cover...
- Page 15 Step 11: Fit front panel A: Ensure the front panel mounts are located into the slots correctly B: Insert and tighten front panel screws correctly torqued to 2.5Nm...
-
Page 16: What You Will Need
Connecting your Commissioning an charge point to Wi-Fi Andersen A2 charge point What you will need A smart phone (iPhone or Android) with Bluetooth enabled A wireless broadband router and the Wi-Fi password The multi-function button You will need to use the multi-function button, during this process, to put the charge point into the network set-up mode. - Page 17 Commissioning Open the Andersen App Ensure you are logged out Press the toolbox located in the bottom right of the screen. Follow the steps on the next screen to connect your charge point.
- Page 18 Commissioning On your charge point, find and firmly press the multi-function button three times. You should now see the LED status light repeatedly flash orange.
- Page 19 Commissioning The Andersen App will Once the Andersen App start scanning for your has found all available charge point using networks, please select Bluetooth. Tap the the Wi-Fi you wish to ‘Connect’ Button on the connect to and enter the app to enter set-up.
- Page 20 You will now be prompted to enter a pin. If you are a current Andersen affiliate you may already have this pin. Altentively, please contact us. Telephone: 01234 916125...
- Page 21 Commissioning We recommend you become an Andersen affiliate. Please scan the QR code below to submit an application to allow us to fully support you.
- Page 22 CT CLAMP POSITIONS Solar Basic / Adaptive Fuse - Position the CT clamp around a live conductor Potential to monitor reading for positions for the whole property and any Grid CT clamp generation. Electricity Meter EV Consumer unit Mains isolation switch Property Joint...
- Page 23 CT CLAMP POSITIONS Solar Advanced - Position the Solar CT clamp around the live conductor to monitor Potential positions reading for solar for the Solar CT generation only clamp Electricity Meter EV Consumer unit Mains isolation switch Property Joint Consumer Block unit ...
-
Page 24: Technical Data
Technical Data The mounting wall must be capable of supporting at Mounting Location least four times the weight of the unit (44kg) and must follow code of practice guidelines Charging Mode Mode 3 (IEC 61851-1 complaint communication protocol Status lights- Warm white, Hall sensor operated and Display internal courtesy light. -
Page 25: Installation
Electrical Specifications Rated Power 7kW (1-phase) / 22kW (3-phase) Rated Supply Voltage 230V AC Single Phase or 400V AC 3-Phase (+/- 10%) Operating Voltage / Frequency 207V - 253V AC at 5Hz Rated Current 32 Amps PEN fault detection Conforming to 722.411.4.1 (iii) (iv) Earth Leakage Protection Internal 6mA DC protection (EN 62955) 30mA AC Standby Power... - Page 26 Dimensions Unboxed 494 x 348 x 148 mm (metal) 156mm (wood) Height Installed between 0.75m - 1.2m from ground level Maximum extended length 30 metres unshielded CAT5/6 OR CT Sensor Cable 50 metres shielded CAT6 data cable. 40A RCBO (BSO EN 61009)) or Type A RCD / RCCB (BSO EN Recommended Upstream Protection 61008) + 40A MCB (BSO EN 60898) - B curve for 1 phase / C curve for 3 phase.
- Page 27 DANGER Danger to life due to electrical voltage! Injuries due to electric shock! and/or burns, possibly resulting in death, are possible. During all work, make sure at all times that power to the system is switched off and secured so it cannot inadvertently be switched on. Before commissioning the device, check that all screw and terminal connections are tight.
-
Page 28: We're Here To Help
We're here to help Send us an email helpdesk@andersen-ev.com Call us Mon-Fri 08:00 - 19:00 Sat 09:00 - 14:00 +44 (0) 1234 916125 www.andersen-ev.com...
