CNC Router Parts Benchtop PRO Assembly Instructions Manual page 13

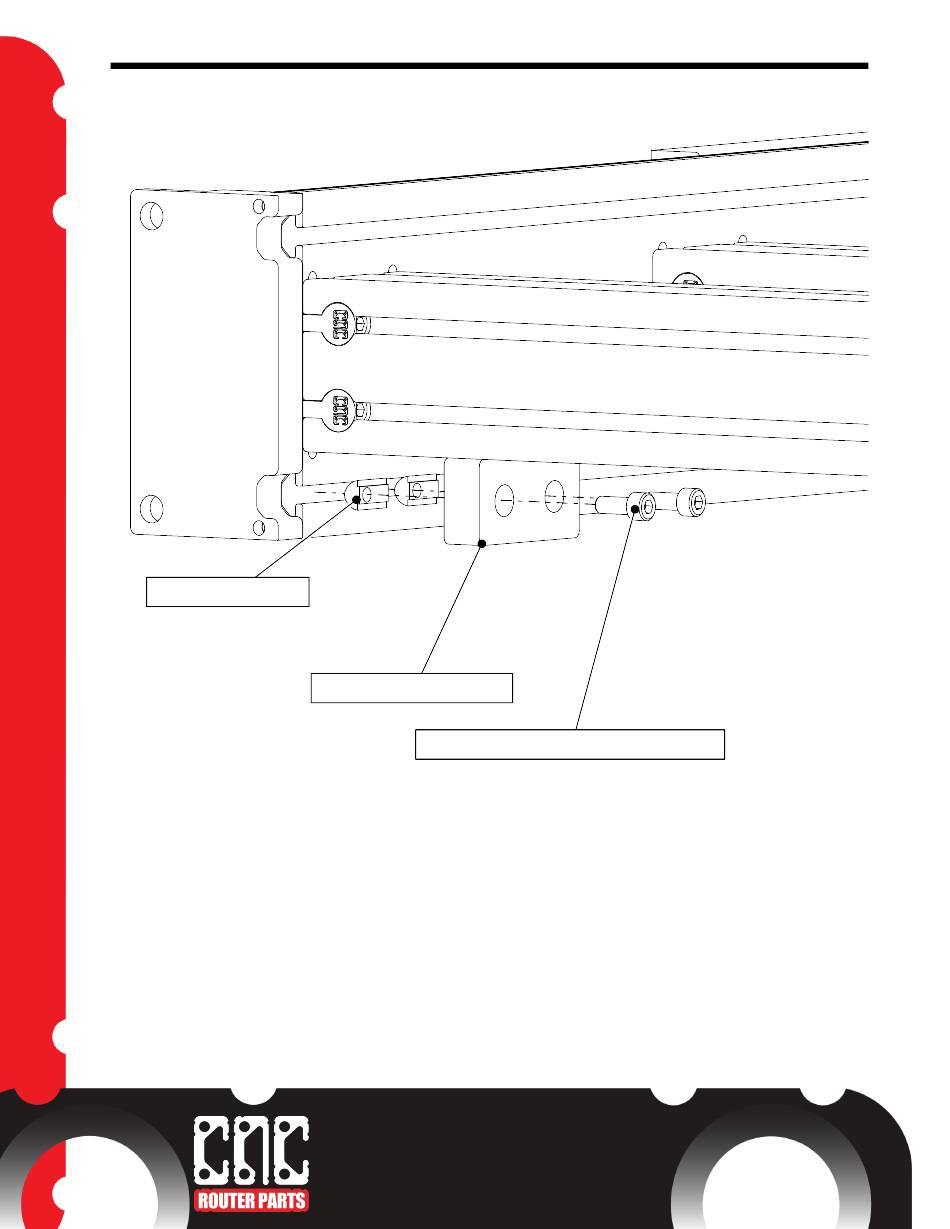

Benchtop PRO Assembly
M8 Roll In T-Nut
CRP913-01 Foot Plate
M8 x 20mm Socket Head Cap Screw
• Attach a foot block to a ballscrew axis as indicated.
Note: If you have your crossmembers in the lowered configuration, locate the
block to the side of the crossmember, rather than under the crossmember.
