REPAIR GUIDELINE

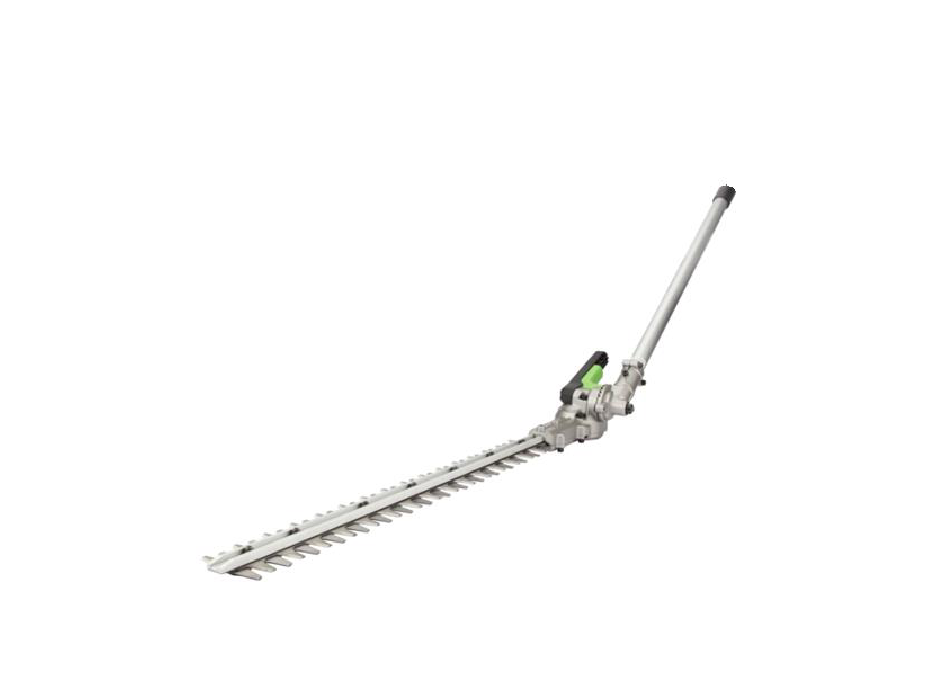

Hedge Trimmer Attachment_HTA2000S
Version: 1
Issue Date: 10/08/2018

Advertisement

loading
Need help?

Need help?

Do you have a question about the HTA2000S and is the answer not in the manual?

Questions and answers

Related Manuals for EGO HTA2000S

Summary of Contents for EGO HTA2000S

  • Page 1 REPAIR GUIDELINE Hedge Trimmer Attachment_HTA2000S Version: 1 Issue Date: 10/08/2018...
  • Page 2 Table of Contents Contents Page Troubleshooting Tool list Part 1: Replace the Blade and Gear 5-30...

  • Page 3: Troubleshooting

    Troubleshooting Fault Problem Possible Cause Test & Solution Position Replace the worn blade with a new Blade stuck Blade worn or stuck due to resin. Blade one or clean the resin. Noise Lack of grease in gearbox. Gear case Add grease Release Replace the release button with a Release button stuck...
  • Page 4 Tool List For Repair Tool List SPEC Remark Socket wrench 13mm Hex wrench 4mm, 2mm...
  • Page 5 Part 1: Replace the Blade and Gear...
  • Page 6 Replace the Blade and Gear 1. Loosen screw 1 and screw 2 to remove the lower housing assembly. Lower housing assembly Screw 2 Screw 1 Description Part Number Qty. Screw 1 5620216005 Screw 2 5620446005 Lower housing assembly 2824873002...
  • Page 7 Replace the Blade and Gear 2. Remove the support plate. Support plate Description Part Number Qty. Support plate 3700736001...
  • Page 8 Replace the Blade and Gear 3. Loosen the screw to remove the upper support plate and support plate. Upper support plate Screw Support plate Description Part Number Qty. Upper support plate 3706098001 Support plate 3705991001 Upper support plate Screw 5620216005 Support plate...
  • Page 9 Replace the Blade and Gear 4. Remove the link assembly. Link assembly Description Part Number Qty. Link assembly 2824890002...
  • Page 10 Replace the Blade and Gear 5. Loosen the screws to remove the screws, plain washers, bushes and nuts. Description Part Number Qty. Screw 5620543001 Plain washer 5650487001 Bush 5650531001 5630007006 Screw Plain washer Bush...
  • Page 11 Replace the Blade and Gear 6. Remove the blades, support plate and clamp support. Clamp support Support plate Blade Description Part Number Qty. Clamp support 3552609001 Support plate 3706193001 Blade 3706167001...
  • Page 12 Replace the Blade and Gear 7. Loosen the 2 screws to remove the bevel lever and then remove the release button. Bevel lever Screw with washer Description Part Number Qty. Screw 5620446005 Washer 5650404001 Release button Bevel lever 3402842001 Release button 3402841001...
  • Page 13 Replace the Blade and Gear 8. Remove the cover and then loosen the nut to separate the left gear case assembly from the right gear case assembly. Cover Hex Nut Description Part Number Qty. Cover 3128682001 Left gear case assembly Hex Nut 5630300001 Left gear case assembly...
  • Page 14 Replace the Blade and Gear 9. Separate the left gear case assembly and shaft from the tube assembly. If any parts are damaged, replace them with a new one. 10. Align the hole on the connecting tube with the hole on the gear case and then tighten them together with the screw.
  • Page 15 Replace the Blade and Gear 11. Remove the gear from the right gear case assembly. Gear Description Part Number Qty. Gear 2824878002...
  • Page 16 Replace the Blade and Gear 12. If any part is broken or worn, replace it with a new one. 13. Mount the gear onto the shaft of the right gear case assembly.
  • Page 17 Replace the Blade and Gear 14. Insert the shaft on the right gear case assembly into the hole on the left gear case assembly and then tighten the nut to assemble them, after which mount the cover on the nut.
  • Page 18 Replace the Blade and Gear 15. Insert the pin on the release button into the hole on the left gear case assembly to assemble them together. Hole Pin...
  • Page 19 Replace the Blade and Gear 16. Align spring 1 with groove 1 and spring 2 with groove 2 to assemble the bevel lever with the left gear case assembly with 2 screws. Spring 1 Spring 2 Groove 1 Groove 2...
  • Page 20 Replace the Blade and Gear 17. Mount the clamp support onto the groove of the right gear case assembly.
  • Page 21 Replace the Blade and Gear 18. Put the support plate on the clamp support, hole to hole. Hole to hole...
  • Page 22 Replace the Blade and Gear 19. Put the 2 bushes on the support plate, hole to hole. Hole to hole...
  • Page 23 Replace the Blade and Gear 20. Align the pin on the bevel gear assembly with the hole on the blade to put the blade on the support plate. Hole...
  • Page 24 Replace the Blade and Gear 21. Put the second blade on top of the other.
  • Page 25 Replace the Blade and Gear 22. Put the support plate on the blade, hole to hole. 23. Put the upper support plate on the support plate, hole to hole. Hole to hole Hole to hole Support plate Upper support plate...
  • Page 26 Replace the Blade and Gear 24. Assemble the link assembly with the bevel gear assembly and then rotate the bevel gear assembly accordingly to align the hole on the link assemble with the pin on the blade to assemble them together. Link assembly Bevel gear assembly...
  • Page 27 Replace the Blade and Gear 25. Tighten the screw to assemble the support plates with the right housing assembly.
  • Page 28 Replace the Blade and Gear 26. Mount the support plate onto the shaft.
  • Page 29 Replace the Blade and Gear 27. Mount the lower housing assembly on the right gear case assembly and tighten them with screws.
  • Page 30 Replace the Blade and Gear 28. Assemble the blade set with screws.
