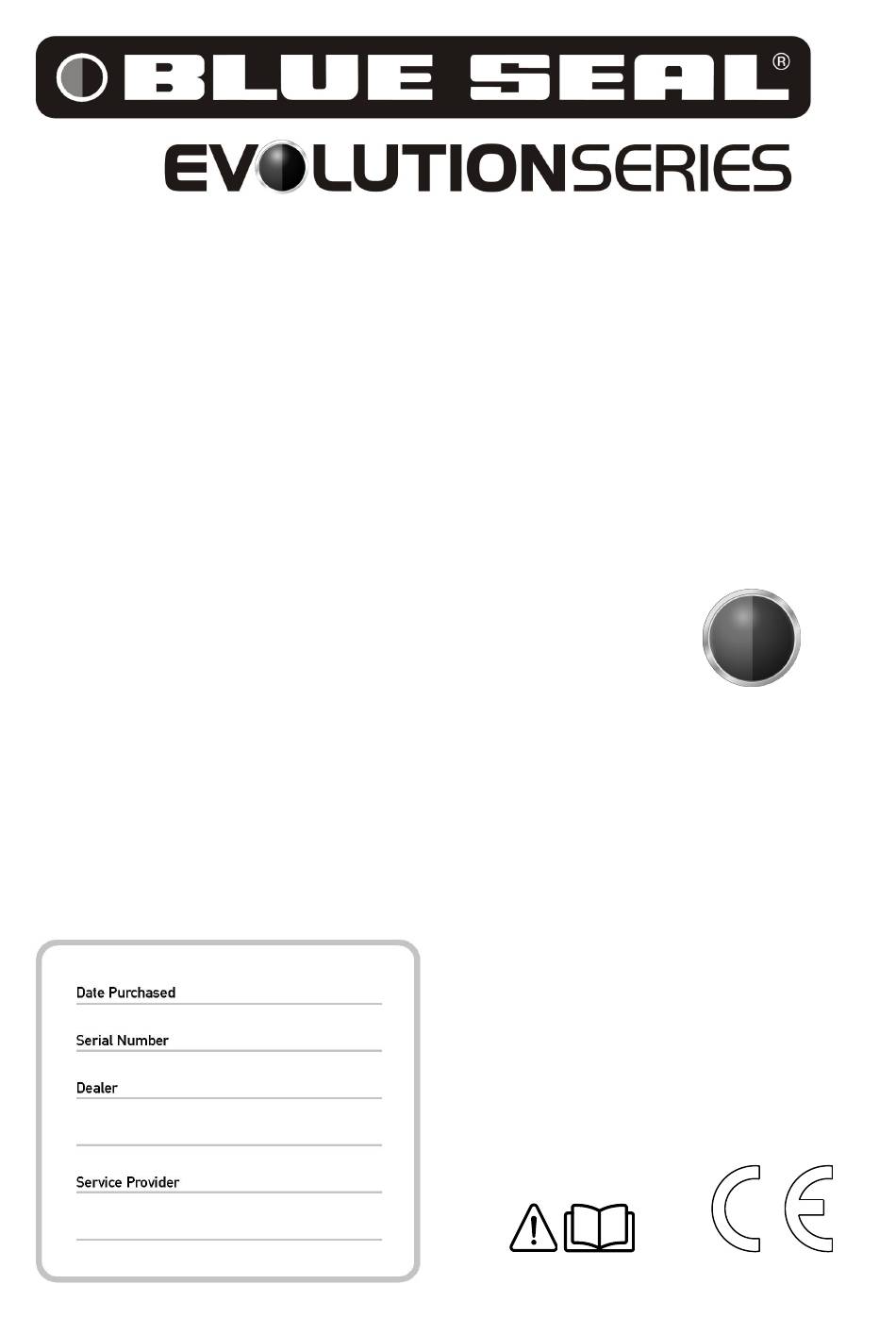

- Page 1 I N S T A L L A T I O N A N D O P E R A T I O N M A N U A L E L E C T R I C C O O K T O P E 5 1 2 S E 5 1 4 S E 5 1 6 S...
- Page 2 The reproduction or copying of any part of this manual by any means whatsoever is strictly forbidden unless authorized previously in writing by the manufacturer. In line with policy to continually develop and improve its products, Moffat Ltd. reserves the right to change the specifications and design without prior notice.
- Page 3 Blue Seal Electric Cooktop E512S Electric Cooktop - 300mm. E514S Electric Cooktop - 600mm. E516S Electric Cooktop - 900mm. Model Numbers Covered in this Specification General Electrical Supply Requirements Electrical Connection Installation Requirements Unpacking Location Clearances Assembly Fitting Adjustable Feet / Rear Rollers to Leg Stand Units Electrical Connection Commissioning Operation Guide...
- Page 4 We are confident that you will be delighted with your Blue Seal ELECTRIC COOKTOP, and it will become a most valued appliance in your commercial kitchen. To ensure you receive the utmost benefit from your new Blue Seal ELECTRIC COOKTOP, there are two important things you can do.
- Page 5 Model Number Model Type Total Power Input Net Weight Bench Model with 2 Hotplate E512S-B 5.2 kW 32 kg Elements Bench Model with 4 Hotplate E514S-B 10.4 kW 70 kg Elements With Cabinet Base and 4 Hot- E514S-C 10.4 kW 76 kg plate Elements With Leg Stand and 4 Hotplate...
- Page 6 Power Supply Amps Total Power Model Input Voltage Type Frequency E512S 230-240 Vac 1 P+N+E 50 / 60 Hz 5.2 kW 21.7 E514S 400-415 Vac 2 P+N+E 50 / 60 Hz 10.4 kW 21.7 21.7 E516S 400-415 Vac 3 P+N+E 50 / 60 Hz 15.6 kW 21.7...
- Page 7 = Rating Plate Location for this option. E512S-B ELECTRICAL ENTRY E514S-B ELECTRICAL ENTRY E516S-B ELECTRICAL ENTRY...
- Page 8 = Rating Plate Location for this option. E514S-C ELECTRICAL ENTRY E516S-C ELECTRICAL ENTRY...
- Page 9 = Rating Plate Location for this option. E514S-L ELECTRICAL ENTRY E516S-L ELECTRICAL ENTRY...
- Page 10 = Rating Plate Location for this option. E516S-R ELECTRICAL ENTRY E514S E516S E512S 250 (RB) NOTE: • E512S is only available as Bench Mount (B) Model. • E514S is available as Bench Mount (B), Cabinet Base (C) or Leg Stand (L) model options. •...
- Page 11 NOTE: • It is most important that this Electric Cooktop is installed correctly and that operation is correct before use. Installation shall comply with local electrical and health and safety requirements. • This appliance shall be installed with sufficient ventilation to prevent the occurrence of unacceptable concentrations of health harmful substances in the room the appliance is installed in.
- Page 12 Bench Mount (B) Models Check that all the feet are fitted. Adjust the four feet to make the hob steady and level. Optional Accessories (Refer to Replacement Parts List) • Plinth Kit. For installation details, refer to the instructions supplied with each kit. Leg Stand (L) Models Only Lower the appliance onto its rear face.
- Page 13 HIS APPLIANCE MUST BE EARTHED F THE SUPPLY CORD IS DAMAGED IT MUST BE REPLACED BY A SUITABLY QUALIFIED PERSON IN ORDER TO AVOID A HAZARD NOTE: ALL ELECTRICAL CONNECTIONS MUST ONLY BE CARRIED OUT BY AN AUTHORISED PERSON. Each appliance should be connected to an adequately protected power supply and isolation switch mounted adjacent to, but not behind the appliance.
- Page 14 Blue Seal appliances have been designed to provide simplicity of operation. A commercial heavy duty, electric Cooktop is available in 3 different sizes, 300mm, 600mm and 900mm wide and in 4 model types: Bench Model. With Cabinet Base. With Leg Stand. With Refrigerated Base.
- Page 15 Clean the Cooktop regularly. A clean appliance looks better, will last longer and will perform better. Carbonised grease on the surface will hinder the transfer of heat from the cooking surface to the food. This will result in loss of cooking efficiency. DO NOT use water on the appliance while this item is still hot as warping and cracking may occur.
- Page 16 NOTE: • If the Cooktop usage is very high, we recommend that the weekly cleaning procedure is carried out on a more frequent basis. • Ensure that protective gloves are worn during the cleaning process. • DO NOT use harsh abrasive detergents, strong solvents or caustic detergents as they will damage the Cooktop and elements.
- Page 17 This section provides an easy reference guide to the more common problems that may occur during the operation of your appliance. The fault finding guide in this section is intended to help you correct, or at least accurately diagnose problems with your equipment. Although this section covers the most common problems reported, you may encounter a problem not covered in this section.
- Page 18 E512S...
- Page 19 E514S...
- Page 20 E516S...
-
Page 21: Replacement Parts List
Replacement Parts List IMPORTANT: Only genuine authorized replacement parts should be used for the servicing and repair of this appliance. The instructions supplied with the parts should be followed when replacing components. For further information and servicing instructions, contact your nearest authorized service branch (contact details are as shown on the reverse of the front cover of this manual).
