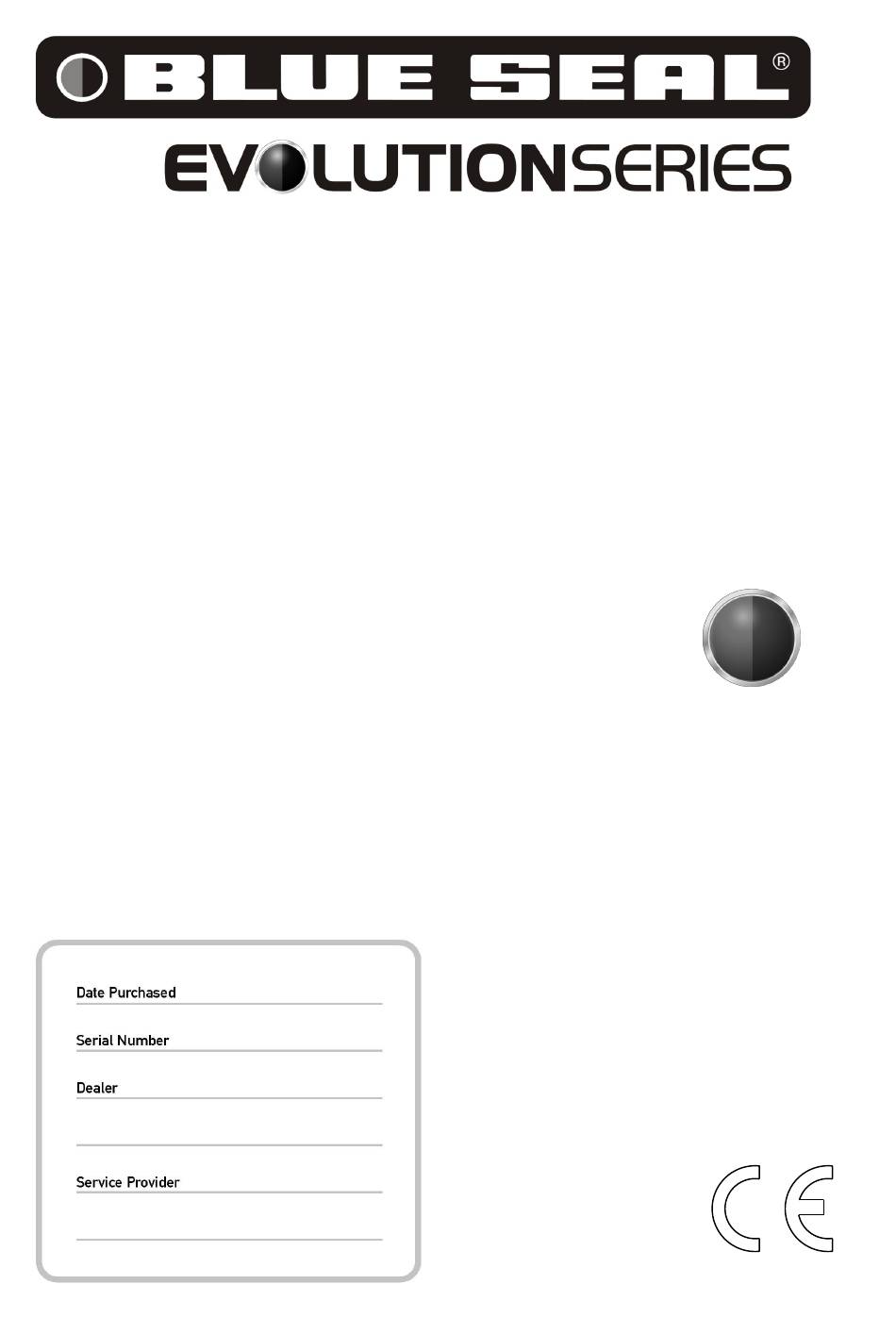

- Page 1 I N S T A L L A T I O N A N D O P E R A T I O N M A N U A L ELECTRIC COOKTOP E 5 1 2 E 5 1 4 E 5 1 6 229356-10...
- Page 2 The reproduction or copying of any part of this manual by any means whatsoever is strictly forbidden unless authorized previously in writing by the manufacturer. In line with policy to continually develop and improve its products, Moffat Ltd. reserves the right to change the specifications and design without prior notice.
- Page 3 Blue Seal Electric Cooktop E512 Electric Cooktop - 300mm. E514 Electric Cooktop - 600mm. E516 Electric Cooktop - 900mm. Model Numbers Covered in this Specification General Electrical Supply Requirements Electrical Connection Installation Requirements Unpacking Location Clearances Assembly Fitting Adjustable Feet / Rear Rollers to Leg Stand Units Fitting Adjustable Feet / Rear Rollers to Cabinet and Refrigeration Bases Electrical Connection Commissioning...
- Page 4 We are confident that you will be delighted with your BLUE SEAL ELECTRIC COOKTOP, and it will become a most valued appliance in your commercial kitchen. To ensure you receive the utmost benefit from your new Blue Seal ELECTRIC COOKTOP, there are two important things you can do.

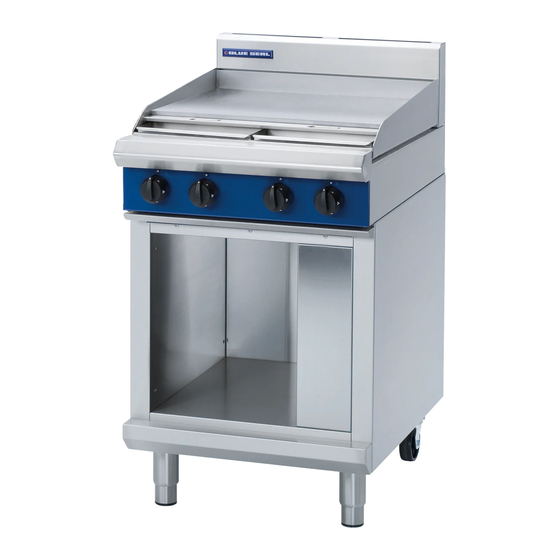

- Page 5 E512D-B Bench Model 2 Open Radiant Elements. E512C-B Bench Model 300mm Griddle. E514D-B Bench Model 4 Open Radiant Elements. E514D-CB with Cabinet Base 4 Open Radiant Elements. E514D-LS with Leg Stand 4 Open Radiant Elements. E514C-B Bench Model 2 Open Radiant Elements / 300mm Griddle. E514C-CB with Cabinet Base 2 Open Radiant Elements / 300mm Griddle.
- Page 6 Power Supply Amps Total Power Model Input Voltage Type Frequency E512D 230-240 Vac 1 P+N+E 50 / 60 Hz 4.8 kW 20.0 E512C 230-240 Vac 1 P+N+E 50 / 60 Hz 3.4 kW 14.2 E514D 400-415 Vac 2 P+N+E 50 / 60 Hz 9.6 kW 20.0 20.0...
- Page 7 = Rating Plate Location for this option. E512-B E514-B E516-B...
- Page 8 = Rating Plate Location for this option. E514-CB E516-CB...
- Page 9 = Rating Plate Location for this option. E514-LS E516-LS...
- Page 10 = Rating Plate Location for this option. E516-RB For the Refrigeration Cabinet Operation refer to the Refrigeration Cabinet Installation and Operation Manual supplied with the appliance. E512D E512-C...
- Page 11 E514-B E514-D E514-C E516D E516C E516A E516B NOTE: E512 is only available as Bench Mount (B) Model. E514 is available as Bench Mount (B), Cabinet Base (CB) or Leg Stand (LS) model options. E516 is available as Bench Mount (B), Cabinet Base (CB), Leg Stand (LS), or Refrigerated Base (RB) model options.
- Page 12 NOTE: It is most important that this Electric Cooktop is installed correctly and that operation is correct before use. Installation shall comply with local electrical and health and safety requirements. This appliance shall be installed with sufficient ventilation to prevent the occurrence of unacceptable concentrations of health harmful substances in the room, the appliance is installed in.
- Page 13 Bench Mount (B) Models Check that all the feet are fitted. Adjust the four feet to make the hob steady and level. Optional Accessories (Refer to Replacement Parts List) Plinth Kit. For installation details, refer to the instructions supplied with each kit. Leg Stand (LS) Models Only TO PREVENT EQUIPMENT DAMAGE AND RISK OF INJURY SECURELY RESTRAIN...
-
Page 14: Date Of Installation
HIS APPLIANCE MUST BE EARTHED F THE SUPPLY CORD IS DAMAGED IT MUST BE REPLACED BY A SUITABLY QUALIFIED PERSON IN ORDER TO AVOID A HAZARD NOTE: ALL ELECTRICAL CONNECTIONS MUST ONLY BE CARRIED OUT BY AN AUTHORISED PERSON. Each appliance should be connected to an adequately protected power supply and isolation switch mounted adjacent to, but not behind the appliance. - Page 15 Blue Seal appliances have been designed to provide simplicity of operation. A commercial heavy duty, electric Cooktop is available in 3 different sizes, 300mm, 600mm and 900mm wide and in 4 model types:- Bench Model. With Cabinet Base. With Leg Stand. With Refrigerated Base.
- Page 16 The controls for the radiant hotplates may be set at any position between high and low to provide the desire level of heating. An individual amber neon for each element, will glow when the element cycles on and extinguish when the element cycles off. Start cooking at the highest setting, and change to a lower setting when the desired temperature is reached.
- Page 17 Clean the Cooktop regularly. A clean appliance looks better, will last longer and will perform better. Carbonised grease on the surface or on the griddle plate (If fitted) will hinder the transfer of heat from the cooking surface to the food. This will result in loss of cooking efficiency. NOTE: Each griddle option can be supplied with a scraper tool and a pack of blades for cleaning the griddle surface.
- Page 18 Brush the elements with a soft bristled brush. Any carbon deposits should be removed using a scraper tool followed by wiping with a cloth moistened in a Lift up Front of solution of hot water and detergent to prevent Element Module accumulation of food deposits.
- Page 19 NOTE: If the Cooktop usage is very high, we recommend that the weekly cleaning procedure is carried out on a more frequent basis. Ensure that protective gloves are worn during the cleaning process. DO NOT use harsh abrasive detergents, strong solvents or caustic detergents as they will damage the Cooktop and elements.
- Page 20 This section provides an easy reference guide to the more common problems that may occur during the operation of your appliance. The fault finding guide in this section is intended to help you correct, or at least accurately diagnose problems with your equipment. Although this section covers the most common problems reported, you may encounter a problem not covered in this section.
- Page 21 E512-D E512 C...
- Page 22 E514-D E514-C E514-B...
- Page 23 E516-D E516-C...
- Page 24 E516-B E516-A...
-
Page 25: Replacement Parts List
Replacement Parts List IMPORTANT: Only genuine authorized replacement parts should be used for the servicing and repair of this appliance. The instructions supplied with the parts should be followed when replacing components. For further information and servicing instructions, contact your nearest authorized service branch (contact details are as shown on the reverse of the front cover of this manual).
