Technical data sheet for
GAS COOKTOPS 600mm
G514D-B, G514D-CB, G514D-LS,
G514C-B, G514C-CB, G514C-LS,
G514B-B, G514B-CB, G514B-LS

Heavy-duty construction

28 MJ/hr open burners
Flame failure standard
Pilot burners optional
300mm griddle plate options
Optional simmer plates
3 models of base unit
Rear rollers
Stainless steel exterior
Easy clean
Easy service
Fully modular

Overall Construction

Cooktop

• Welded hob with 1.5mm 304 stainless steel bull nose
• Side panels 1.2mm 304 stainless steel
• Splashback 1.2mm 304 stainless steel
• Vitreous enamelled control panel
• Aluminised steel internal construction
• Cast iron 28MJ/hr open burners with forged brass cap
• Vitreous enamelled cast iron potstands
• Vitreous enamelled open burner spill covers
• Cast iron simmer plates (optional extra)
• 12mm thick mild steel griddle plate
• 2.5mm 304 stainless steel griddle splash guards
• Stainless steel spill trays
Griddle sections are standard on RH side. Available on LH side to
order or by conversion.
Bench mount (supplied as –B model)
• Four 63mm dia. heavy-duty 1.2mm 304 stainless steel bench legs
with adjustable feet
• Adjustable height 80mm – 105mm
Cabinet base (supplied as –CB model)
• Fully modular for match suite finish
• Double skin 0.9mm 304 stainless steel interior and exterior
• Optional GN 1/1 4 position racking kit
• 63mm dia. heavy-duty 1.2mm 304 stainless steel legs with two
adjustable feet at front and two rollers at rear
Leg stand (supplied as –LS model)
• Fully modular for matched suite finish
• Framed top for connection to Cooktop
• 63mm dia. heavy-duty 1.2mm 304 stainless steel legs with two
adjustable feet at front and two rollers at rear
• Fully modular framed stand shelf with 0.9mm 304 stainless
steel finish
• Suitable for rear or through shelf gas connection to Cooktop
• Quick assembly design

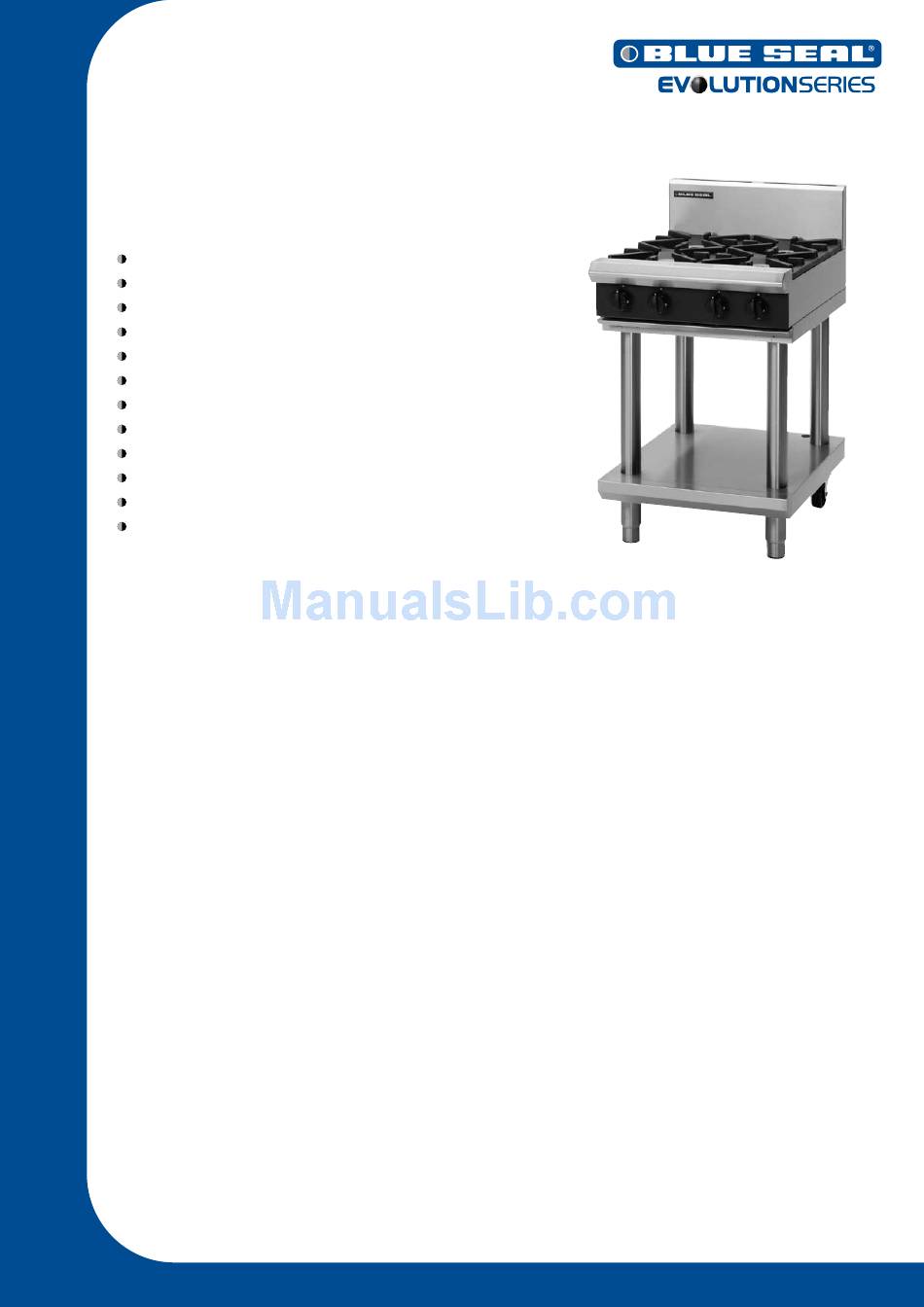

G514D-LS

Controls

• Variable high to low controls to open burners
• Open burners flame failure standard with pilot burners optional
• Variable high to low controls to griddles
• Griddles standard with pilot, flame failure and piezo ignition
• Large easy use control knob - heat resistant reinforced
• Easy view control settings on knob

Cleaning and Servicing

• All models with easy clean stainless steel external finish
• Lift off burner heads and vitreous enamelled burner spill covers
• Stainless steel spill trays under open burner and griddle sections
• Access to all parts from front of unit
