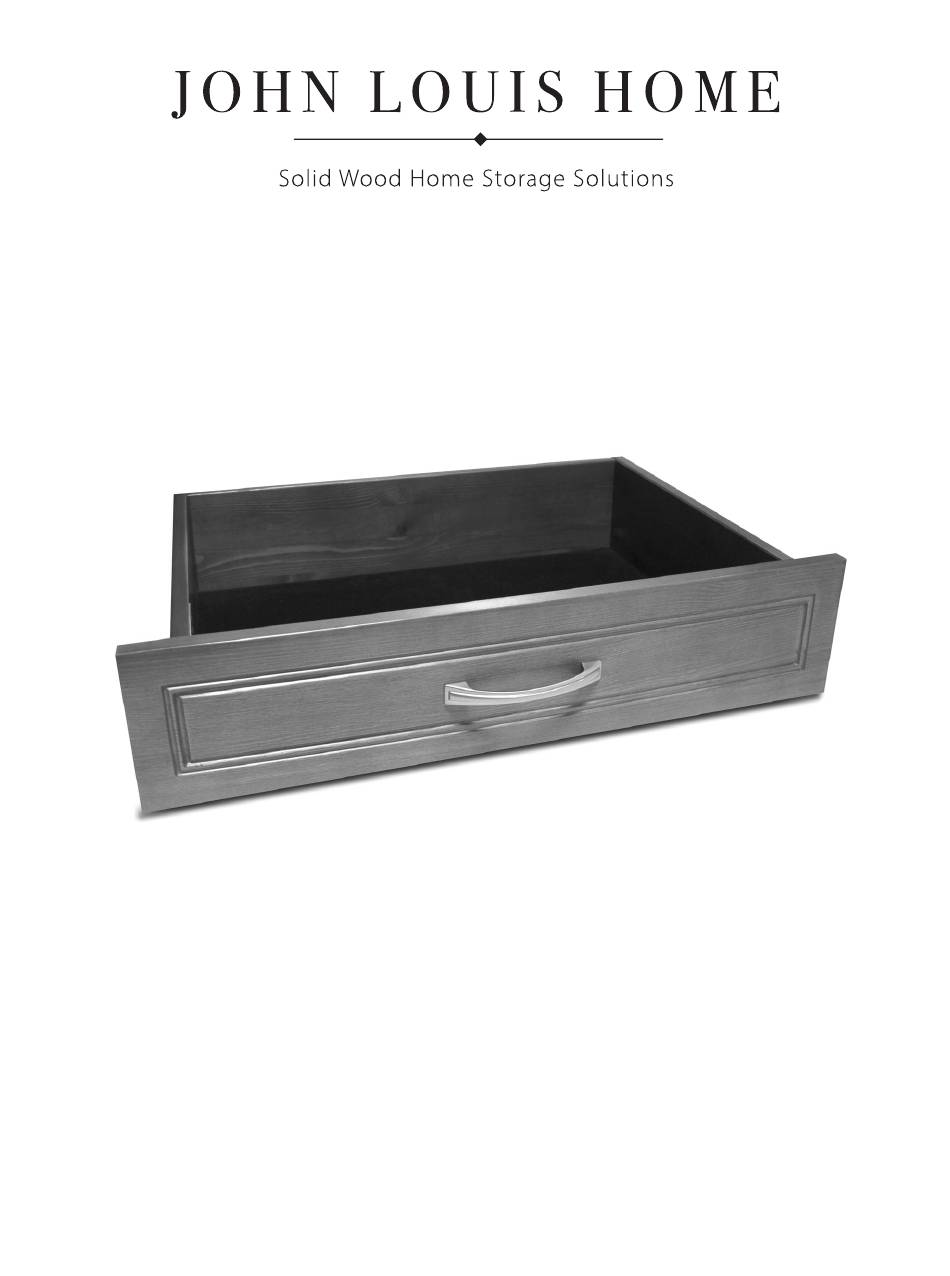

- Page 1 Installation Instructions 12in. & 16in. - 6, 8 & 10in. Deep Drawer JLH-536, 536W, 536WC, 537, 537W, 537WC, 538, 538WC, 539, 539WC, 555CH, 556, 557CH, 558, 559CH, 560CH, 561, 562, 804W, 805, 805WC, 806, 806WC, 807, 807WC, 808, 809W, 850, 855...
- Page 2 Quantity: 2 Quantity: 1 Drawer handle Drawer machine screw Rubber Bumper 4 pack REQUIRED TOOLS FOR INSTALLATION: The following tools will be needed to assemble and install your John Louis Home Solid Wood product: • Pencil • Phillips Screwdriver •...
- Page 3 Select drawer back & side (right or left). Align the bottom grooves on drawer parts. Insert cam bolts into holes on side of drawer back. 10. Secure by turning cam nuts in clockwise direction until snug. 11. Repeat for remaining drawer side. STEP 2: Attaching Drawer Glides When installing multiple drawers, always start with the bottom placed drawer first.
- Page 4 STEP 3: Installing Drawer Center the screw holes with the score mark. Secure the slide with 1/2 in. screws at the vertical oval locations. Repeat for the 2nd slide. When installing multiple drawers, always start with the bottom placed drawer first. Then continue installing in order to the final top drawer. Insert drawer into glides.
