Summary of Contents for Performance Tool W7721

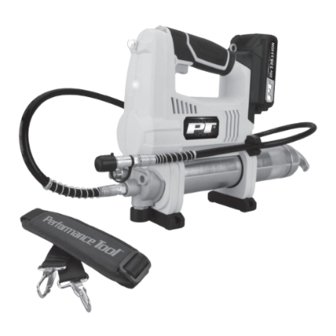

- Page 1 20V CORDLESS HIGH VOLUME GREASE GUN Item Number W7721 OWNER'S MANUAL WARNING: READ, UNDERSTAND AND FOLLOW ALL INSTRUCTIONS AND WARNINGS BEFORE OPERATING THIS TOOL. FAILURE TO DO SO MAY RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE AND WILL VOID WARRANTY.
-
Page 2: Tool Features
TOOL FEATURES 1. Shoulder Strap Anchor Loops 9. Variable Speed Dial 2. LED Light 10. 48 in. Flexible Grease Hose 3. 20V Motor 11. 16 oz. Barrel 4. 4-Jaw Adjustable Coupler 12. Rubber Feet 5. Air Vent Valve 13. Charger 6. -
Page 3: Safety Guidelines - Definitions
SAFETY GUIDELINES / DEFINITIONS This instruction manual is intended for your benefit. Please read and follow the safety, installation, maintenance and troubleshooting steps described within to ensure your safety and satisfaction. The contents of this instruction manual are based upon the latest product information available at the time of publication. -
Page 4: Battery Safety Information
• Do not store the tool under extreme conditions. • Do not adapt the tool for any other purpose than what it was originally intended for. • When operating the tool, use proper eye and hearing protection as well as protective gloves. •... - Page 5 LED WORKLIGHT CAUTION: Do not stare into LED light, serious eye injury could result. There is an LED light (2) located on the front of the grease gun. The LED light is activated when the trigger (7) is squeezed and will shut off 5 seconds after the trigger is released. NOTE: The LED light is intended for lighting the immediate work surface and is not intended to be used as a flashlight.
- Page 6 OPERATION FILLING GREASE GUN FROM A BULK CONTAINER 1. Rotate the grease barrel assembly counterclockwise to unscrew the grease barrel assembly from the gun. 2. Insert the open end of the grease barrel assembly into the lubricant. Slowly pull the follower handle back while pushing the grease barrel assembly deeper into the lubricant to prevent air pockets from being pulled into the grease barrel assembly.
-
Page 7: Care And Maintenance
Only use accessories that are intended for use with this tool and that are recommended by the manufacturer for your model. Approved accessories are available from Performance Tool . Accessories that may be suitable for one tool may become hazardous ®... - Page 8 PERFORMANCE TOOL® does not authorize any other person to make any warranty or to assume any liability in connection with its products.
