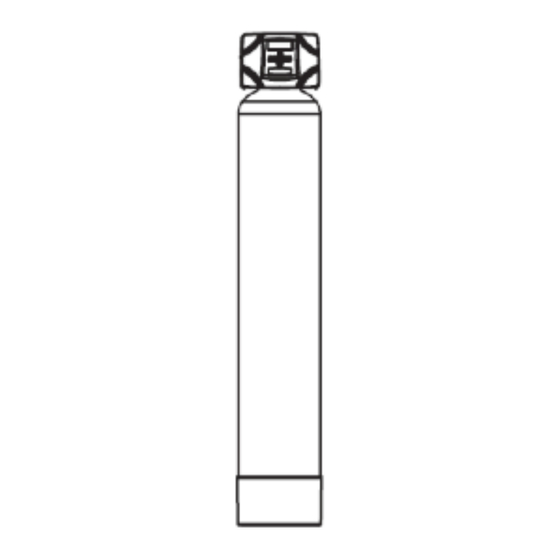

Automatic backwash carbon filters blended with coconut shell gac carbon and catalytic carbon

Advertisement

Quick Links

INSTALLATION AND MAINTENANCE
AUTOMATIC BACKWASH CARBON FILTERS
BLENDED WITH COCONUT SHELL GAC CARBON AND
Dear Customer,
It is our pleasure to bring to you the most advanced filtration technology available. We
hope that it exceeds your expectations and meets all of your filtration needs.
Copyright: This manual of instructions cannot be reproduced, in whole or in part, in any
form (including its recording, digitalization or photocopying) without the written consent
of Atlas Filtri North America, LLC.
Contact:
ATLAS FILTRI North America, LLC
1068 North Farms Road Bldg. #3 - Wallingford, CT 06492, USA
Phone +1(203)284-0080 - Fax +1(203)294-9226
e-mail: atlasfiltrinorthamerica@atlasfiltri.com
A Company of the Atlas Filtri Group.
atlasfiltri.com
INSTRUCTIONS FOR
CATALYTIC CARBON
Model #'s:
BW-CAT-1MPT-08
BW-CAT-1MPT-10
BW-CAT-125MPT-12
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BW-CAT-1MPT-08 and is the answer not in the manual?

Questions and answers

Summary of Contents for Atlas Filtri BW-CAT-1MPT-08

  • Page 1 Atlas Filtri North America, LLC. Contact: ATLAS FILTRI North America, LLC 1068 North Farms Road Bldg. #3 - Wallingford, CT 06492, USA Phone +1(203)284-0080 - Fax +1(203)294-9226 e-mail: atlasfiltrinorthamerica@atlasfiltri.com A Company of the Atlas Filtri Group. atlasfiltri.com - 1 -...
  • Page 2: Installation Information

    Installation & Operations Manual Installation Information *To be filled out completely by the installer* Installed By:_______________________________________________________ Company Name & Phone #:____________________________________________ Installation Date:____________________________________________________ Serial #:_____________________________________________ Model #:_____________________________________________ Water Pressure Tested @ PSI:___________________________ City Water or Private Well Water:_________________________ Installed in-line before a water softener (Yes or No):____________ **Note: On chlorinated water supplies (city/municipal water supplies), these filters must be installed inline/in front of a water softener, to protect the water softener resins from high levels of chlorine and chloramines in the raw water supply, which will cause damage to the water softener resins.**...
  • Page 3: Features And Benefits

    Features & Benefits • Designed with a specific premium blend of coconut shell GAC carbon and Catalytic coconut shell carbon, for whole home filtering, for the reduction of Organics, Chlorine, and Chloramines found in city/municipal water supplies. High levels of chlorine and chloramines in the raw water supply can damage rubber seal components inside of the homes plumbing fixtures, and can also damage certain types of plastic water piping in your home.
  • Page 4 Specifications & Model Numbers Model Number Bypass Size Cubic Feet Footprint Service/Peak Flow Rates BW-CAT-1MPT-08 1” MPT 10” W X 62” H 3 GPM/8 GPM BW-CAT-1MPT-10 1” MPT 12.5” W X 60” H 5 GPM/10 GPM BW-CAT-125MPT-12 1.25” MPT 13.5” W X 62” H 6 GPM/12 GPM •...
  • Page 5 Carbon Media Life • The carbon filter media in this filter system must be replaced over time. • It is important to maintain the carbon filter system and keep record of the dates that the carbon filter media has been replaced. •...
  • Page 6 Carbon Media Replacement Records • Date of Original Installation:___________________________________________ • Date of Replacement: ______________________________________________ • Name of Service Company: __________________________________________ • Date of Replacement: ______________________________________________ • Name of Service Company: __________________________________________ • Date of Replacement: ______________________________________________ • Name of Service Company: __________________________________________ •...
  • Page 7: Installation Instructions

    Installation Instructions Basic Installation General Installation & Guide The control valve, fittings and/or bypass are designed to accommodate minor plumbing misalignments but are not designed to support the weight of a system or the plumbing. Do not use Vaseline, oils, other hydrocarbon lubricants or spray silicone anywhere. A silicone lubricant may be used on black o-rings but is not necessary.
  • Page 8: Installation Notes

    Installation Notes • This Carbon Filter system consists of 1 total media tank, with electronic control valve and bypass valve. (No chemical or regenerate tank used). • Install this system in accordance with all local and state plumbing codes. • Check your water pressure! Install a new PRV valve if your pressure is 80 PSI or higher.
  • Page 9: Bypass Valve

    Bypass Valve To shut-off water to the system, please position arrow handles as shown in the bypass operation diagram below. If your valve doesn’t look like the diagram below, contact your service technician for instructions on how to shut-off water. NORMAL OPERATION BYPASS OPERATION Treated...
  • Page 10: Installation Fitting Assemblies

    Installation Fitting Assemblies Order No: BP-C-V3007 Description: Fitting 1” PVC Male NPT Elbow Assembly Drawing No. Order No. Description Quantity CV-P-V3151 Nut 1” Quick Connect CV-P-V3150 Split Ring CF-P-V3105 O-Ring 215 CV-P-V3149 Fitting 1 PVC Male NPT Elbow Order No: BP-C-V3007-05 Description: Fitting 1-1/4”...
  • Page 11 Start Up 1. After installation is complete and the main water line in the home is still turned off, rotate the BYPASS knobs to the OFF positions. See below. Bypassed Position (closed) 2. Plug system into power and Set the Time of day. (See below) STEP 1U - Press CLOCK.
  • Page 12 3. Now that installation is complete, the time-of-day set, and the system still in the bypass mode position, follow the next steps to start-up the carbon filter system. 4. Turn main water line supply back on in the home and open some cold water faucets to flush water lines from any debris from installation and also to expel the air out of the water lines.
  • Page 13 7. Slightly and slowly open the Inlet bypass knob ½ of the way open (pointing to roughly the 8 o’clock position) until you can hear water starting to flow into the carbon filter tank. You will also start to hear air expelling out of the carbon filter system and running to drain.
  • Page 14 11. With the inlet bypass knob in the fully open position, allow water to flow to drain for another 5 minutes. 12. After 5 minutes of flowing water to drain, plug the carbon filter system back into power. The display will still be reading BACKWASH. See below. Note: During Regeneration, the display screen will alternate between the cycle and how much time is left before the regeneration is complete.
  • Page 15 Start Up is now complete. Rotate the outlet bypass knob to the fully open position of Normal Operation (pointing to the 12 o’clock position). See below. NORMAL OPERATION “Treated” Water Supply Water Exits Enters With the carbon filter system now in operation, fully open all cold-water faucets in the home to flush lines.
  • Page 16: General Operation

    General Operation When the system is operating, one of several displays may be shown. Pressing NEXT will alternate between the displays. One of the displays is always the current time of day. # OF DAYS TO REGEN is the number of days left before the system goes through a regeneration cycle.
  • Page 17: Bypass Valve Operation

    Bypass Valve Operation Figure 1 Figure 2 NORMAL OPERATION BYPASS OPERATION “Treated” Water Supply Water Supply Water Supply Water Exits Enters Exits Enters Figure 3 Figure 4 DIAGNOSTIC MODE SHUT OFF MODE Supply Water Supply Water No Water Supply Water is Shut Exits Enters Exits...
  • Page 18: Troubleshooting

    Troubleshooting Problem Possible Cause Solution a. No power at electric outlet a. Repair outlet or use working outlet b. Control valve Power Adapter not b. Plug Power Adapter into outlet or plugged into outlet or power cord end connect power cord end to PC Board not connected to PC board connection connection 1.
  • Page 19 Troubleshooting continued 6. Control valve does a. Broken drive gear or drive cap a. Replace drive gear or drive cap not regenerate assembly assembly automatically when b. Broken piston rod b. Replace piston rod the REGEN button is c. Defective PC Board c.
  • Page 20 Troubleshooting continued a. Foreign material is lodged in control a. Open up control valve and pull out piston valve assembly and seal/stack assembly for inspection. Press NEXT and REGEN buttons for 3 seconds to resynchronize software with piston position or disconnect power supply from PC Board for 5 seconds and then reconnect.
  • Page 21 Replacement Carbon Filter Tanks Carbon Filter Model # Replacement Tank Model # Cubic Feet BW-CAT-1MPT-08 RT-BW-CAT-1MPT-08 BW-CAT-1MPT-10 RT-BW-CAT-1MPT-10 BW-CAT-125MPT-12 RT-BW-CAT-125MPT-12 • All replacement carbon filter tanks come fully assembled and ready for installation. • All replacement carbon tanks come with a new distributor tube and screen assembly.
  • Page 22 Drawing No. Order No. Description Quantity CV-P-V3107-01 Motor CV-P-V3106-02 Drive Bracket Assy CV-P-V3757PR-03 Vision PC Board NOT SHOWN CV-P-V3186 WS1 AC Adapter 120V-12V AC Adapter U.S. Supply Voltage 120 VAC Supply Frequency 60Hz Output Voltage 12 VAC Output Current 500mA Service Wrench - CV-P-V3193-02 Not provided with system.
  • Page 23 Internal Valve Parts for 1” Model #’s Model # BW-CAT-1MPT-08 Model # BW-CAT-1MPT-10 Drawing No. Order No. Description Quantity CV-P-V3005 Motor CV-P-V3004 Drive Bracket Assembly CV-P-V3011 Vision PC Board CV-P-V3174 WS1 AC Adapter 120V-12V CV-P-V3135 O-ring 228 CV-P-V3180 O-ring 337...
  • Page 24 Internal Valve Parts for 1.25” Model #’s Model # BW-CAT-125MPT-12 Drawing No. Order No. Description Quantity CV-P-V3430 1.25 Spacer Stack Assembly CV-P-V3004 Drive Cap Assembly CV-P-V3407 1.25 Piston Downflow Assembly CV-P-V3174 Regenerant Piston CV-P-V3135 O-ring 228 CV-P-V3180 O-ring 337 CV-P-V3358 O-ring 219 (Distributor Tube) - 24 -...
  • Page 25 Drawing No. Order No. Description Quantity CV-P-H4615 Elbow Locking Clip CV-P-V3331 Drain Elbow & Retainer Assembly Water Meter Drawing No. Order No. Description Quantity CV-P-V3151 Nut 1” Quick Connect CV-P-V3003 Meter Assembly This water meter should not be used as the primary monitoring device for critical or health effect applications.
  • Page 26 BP-C-V3006 Bypass Plug - 26 -...
  • Page 27 Installation Fitting Assemblies Order No: BP-C-V3007 Description: Fitting 1” PVC Male NPT Elbow Assembly Drawing No. Order No. Description Quantity CV-P-V3151 Nut 1” Quick Connect CV-P-V3003 Meter Assembly CV-P-V3105 O-ring 215 CV-P-V3149 Fitting 1 PVC Male NPT Elbow Order No: BP-C-V3007-05 Description: Fitting 1- ”...
  • Page 28 Coconut Shell - High Activated Carbon (CS-HAC) Coconut Shell-High Activated Carbon (CS-HAC) may be used for a variety of water treatment applications requiring the reduction of chlorine taste & odor. Clack granular activated carbon is designed for the reduction of chlorine taste and odor and dissolved organic chemicals from municipal and industrial water supplies.
  • Page 29 - 29 -...
  • Page 30 Catalytic-High Activated Carbon (CAT-HAC) Catalytic - High Activated Carbon (CAT-HAC) may be used for a variety of water treatment applications including the reduction of chloramines and hydrogen sulfide from potable water. Clack Catalytic Activated Carbon is a high activity coconut shell based granular carbon that is specifically designed for the reduction of chloramines and hydrogen sulfide from potable water.
  • Page 31 - 31 -...
  • Page 32: Product Limited Warranty

    Manufacture* Warranty Exclusions: - Defective warranty part or parts will be repaired or replaced at the option of Atlas Filtri North America, F.O.B. Atlas Filtri North America. 1068 North Farms Rd. Bldg #3. Wallingford, CT. 06492. - All systems must be installed correctly by a licensed installer and meet all state and local plumbing codes.
