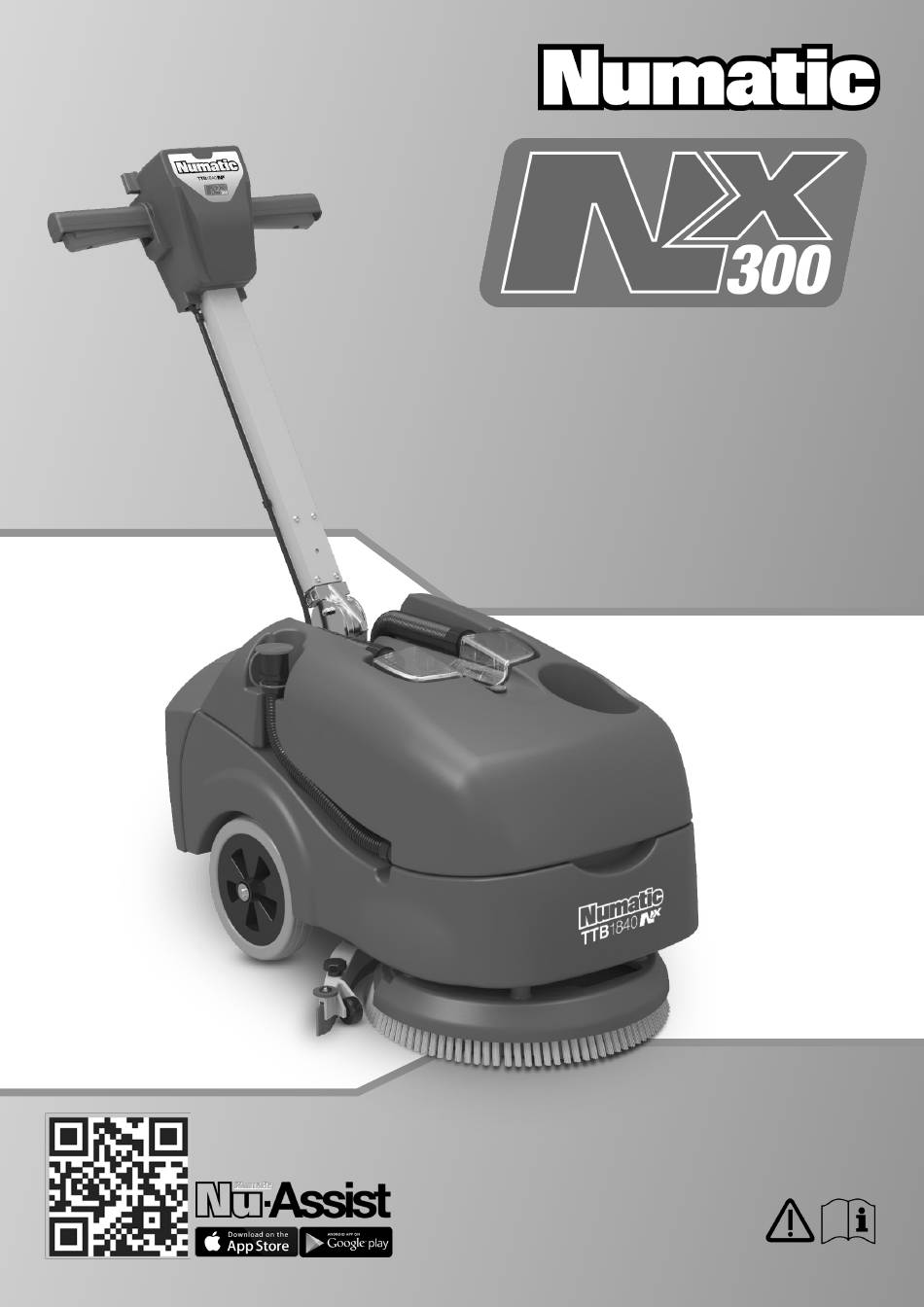

- Page 1 TTB1840NX TTB1840NX-R BATTERY SCRUBBER DRYER Original Instructions CAUTION, Read instructions before using the machine Keep for future reference numatic.com...
-
Page 2: Table Of Contents
......... Pages 16-19 Recommended Spare Parts ......Page 19 In the event of a breakdown contact Schematic Diagram ......... Page 20 your Numatic dealer or the Numatic Technical Warranty ......... Page 21 help line +44 (0)1460 269268 EU Declaration Document ......Page 22 Company Address ......... -
Page 3: Machine Overview
Machine Overview... -
Page 4: Control Panel Overview
Water Flow On / Off Button Water Flow Indicatorv Vacuum Off/On Indicator Vacuum Off/On Button Handle Position Lever In the event of a breakdown contact Start Switch your Numatic dealer or the Triggers Numatic Technical Help line +44 (0)1460 269268... -
Page 5: Quick Set Up Guide
Quick Set-up Guide PLEASE READ BEFORE COMMENCING ANY OPERATION. AFTER THE REMOVAL OF ALL THE PACKAGING, CAREFULLY OPEN AND CHECK THE CONTENTS. TTB1840NX/TTB1840NX-R CONTENTS ● Owner Manual ● Battery & Charger Manual ● Battery Charger & Lead ● Battery ● Scrub Brush ● Squeegee Assembly Move the handle into the upright position, (Fig.2) Using the handle position lever, (Fig.1) Slide the brush / pad under the brush deck Fit the brush / pad onto the Nulock drive Swing the floor-tool carrier from behind the... -
Page 6: Machine Set Up Guide
Machine Set-up Guide ALWAYS ENSURE THAT THE MACHINE IS SWITCHED OFF BEFORE MAKING ANY ADJUSTMENTS Fitting the Brush / Pad / Turn on water 400mm Brush / 360mm Pad. Featuring the Nulock brush system. The brush is simply pushed and twisted to lock, making fitting and removal a simple process. Slide the brush / pad under the brush deck. -
Page 7: Filling The Clean Water Tank
Machine Set-up Guide Filling the Clean Water Tank The TTB1840NX/TTB1840NX-R is equipped with a large 18 litre clean-water tank allowing large areas to be cleaned in a single fill. Fill Indicator To fill the clean-water tank, remove the filler cap (Fig.1). Fill using a hose or a suitable container (Fig.2). Use the fill indicator (Fig.3). -
Page 8: Machine Operation
Machine Operation Setting the Cleaning Controls On / To check the battery level pull one of the Triggers or press button (A). Trigger Trigger To start the brush with the configured water and vacuum settings pull either trigger and press the Start switch (A). Note: that the start switch (A) must be pressed after the trigger is pulled. -
Page 9: Raising/Lowering Floor-Tool
Machine Operation Raising/Lowering the Floor-tool To raise the floor-tool, ensure the floor-tool carrier is central to the machine. Lift the lever near the base of the handle and lock into position. WHEN HANDLING CHEMICALS Always ensure that chemical manufacturer’s safety guidelines are followed. Only use chemicals recommended for use in auto scrubber-dryers. -
Page 10: Regular Maintenance
Regular Maintenance ALWAYS ENSURE THAT THE BATTERY IS REMOVED PRIOR TO ANY MAINTENANCE OPERATION Emptying Top Tank After use, empty waste-water tank using emptying hose and flush-out with clean water. (fig.A). Emptying Bottom Tank The clean-water tank can be drained via the red cap fitted to the left hand side of the machine. -
Page 11: Changing Floor-Tool Blades
Changing the Floor-Tool Blades ALWAYS ENSURE THAT THE BATTERY IS REMOVED PRIOR TO ANY MAINTENANCE OPERATION To change the floor-tool, firstly swing the floor-tool clear of the machine. Undo the two floor-tool retaining knobs (Fig.A). Pull the floor-tool away from the machine (Fig.B). -
Page 12: Lifting The Machine
Lifting the Machine Fold handle and lock in to position Lift Points Front Back Machine Dry Weight 34 kg 2 Person... -
Page 13: Specifications
If cut out engages then the surface is to rough & an operating alternative machine may be required Failure to rectify the problem or in the event of a breakdown contact your Numatic dealer or Numatic Technical helpline +44 (0)1460 269268... -
Page 14: About The Machine
Protective Clothing Caution Hi-Vis Jacket Protection Wet Floor Sign Note: A risk assessment should be conducted to determine which PPE should be worn. In the event of a breakdown contact your Numatic dealer or Numatic Technical helpline +44 (0)1460 269268... -
Page 15: Information For Scrubber Dryer
Regularly examine the power cord for damage, such as cracking or ageing. If damage is found, replace the cord before further use. • Only replace the power cord with the correct Numatic approved replacement parts. • Ensure that the work area is clear of obstructions and / or people. -
Page 16: Battery Information
0086-755-83283710 0044-146-068600 0086-755-8328649 0044-146-068458 www.numatic.com | www.numatic.de | www.numatic.ch | www.numatic.fr www.numatic.nl | www.numatic.co.za | www.numatic.pt | www.numatic.es www.numatic.it | www.numatic.dk 1. DEFECTIVE BATTERIES If a customer wishes to return a battery to a supplier, then collection of the battery must be arranged by the supplier; however, Faulty batteries must not be returned through the postal system or by courier. -
Page 17: Handling And Storage
Do not incinerate the battery – danger of explosion! Do not use defective or deformed batteries. • Use only original NUMATIC chargers to charge the battery. • STORAGE: If the appliance is to be stored unused for a long period, the batteries should be removed. -
Page 18: Fire Fighting Measures
Warning: Use only with Numatic battery charger. The battery included in this product must only be charged by the Numatic Charger and docking system supplied with the product and in NO circumstances should an alternative non Numatic charger be used as there is risk severe damage and fi re could result. -
Page 19: Warranty
Disposal of batteries together with household waste is prohibited; batteries must be collected separately according to type. Return the battery free of charge to your NUMATIC servicing dealer for disposal or hand it over to an appropriate public •... -
Page 20: Schematic Diagram
Schematic Diagram Notes... - Page 23 Notes...
-
Page 24: Company Address
Tel: +39 (0) 434 046 211 numatic.it This Product has been comprehensively inspected and checked during every stage of its manufacture. Including an in-depth electrical safety and functionality test. Specifi cation subject to change without prior notice numatic.com © Numatic International Limited 912765 07/24 (A13)
