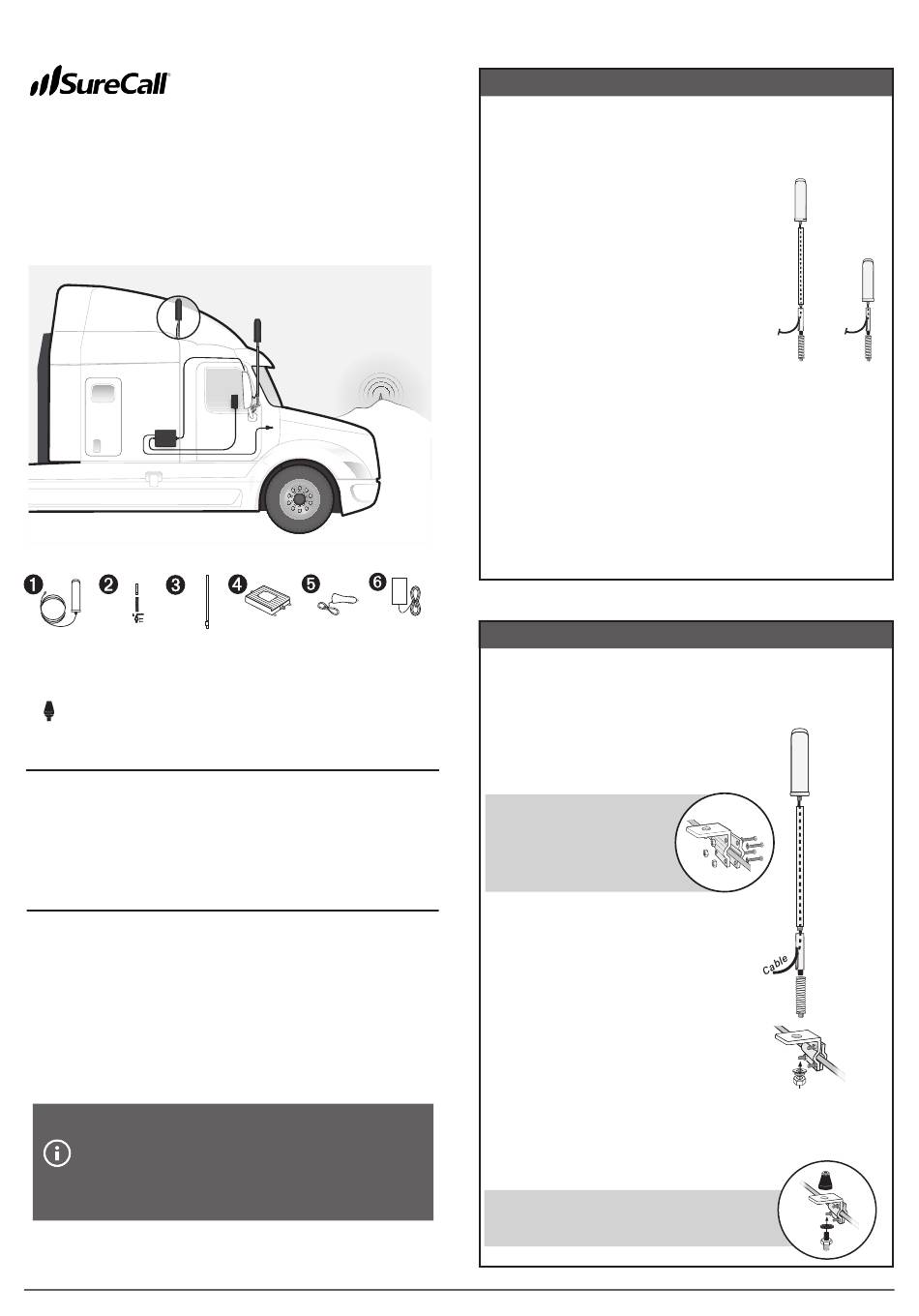

SureCall Fusion2Go XR OTR Quick Setup Manual

Quick Setup Guide
SureCall Fusion2Go XR OTR
Alternative mounting
option
➍ ➍
Antenna
Mast
Outside
mounting
extension
antenna
hardware
(optional)
Includes optional dome stud mount
Have Questions?
We have answers! Reach out to our US-based support team:
Call:
1-888-365-6283
Email: support@surecall.com
Visit: www.surecall.com
Industry-Best Three-Year Warranty
Thank you for your SureCall purchase. Please register your new product
at www.surecall.com/activate.
For complete warranty text, including limitations and liability, see the
Fusion2Go XR OTR user manual, available online at or
www.surecall.com.
A "soft installation" should first be performed by
assembling the truck antenna (WITHOUT GLUE)
and routing the cable through an open window. After
completing the remaining installation steps and
successful operation is verified, proceed with permanent
installation.
Fusion2Go XR OTR | SC-Fusion2GoXR-OTR
➊ ➊
➌ ➌
➏ ➏
➋ ➋
➎ ➎
Booster DC Power In-vehicle
supply
BEFORE YOU BEGIN
Select a location on your vehicle for the outside
antenna. Multiple placement and height
configurations are available to achieve the best
configuration for your specific vehicle needs. The
antenna can be mounted on any truck, with or
without an existing antenna mounting point.
For vehicles without built-in mounting points, a 3/8
x 24 thread mount design is used to accommodate
many available 3rd party CB mounts.
A 2-clamp mounting bracket is provided for use on
a mirror rail or other existing vehicle rails.
Additionally, an extension pole is also provided.
Note, it is needed only to achieve the clearance
requirements for the antenna specified below.
Keep in mind, the antenna mounting location
should:
(a) Allow the antenna to extend above the
metal cab, (b) be at least 6 inches away from any
windows and (c) provide at least a 12-inch radius
clear of obstructions and other radiating elements,
such as a radio antenna.
Thread glue is provided with the antenna. It should
be applied at each threaded connection only after
you have confirmed the proper height configuration
as the glue will make the connection permanent.
1. PLACE OUTSIDE ANTENNA
antenna
Once you have determined the mounting location, assemble the
antenna parts by routing the cable through the mast extension (if
used) and through the cable exit adapter.
If using the provided mounting bracket, we
recommend installing the spring base and
mounting bracket before adding the remaining
assembly.
INSTALL MOUNTING BRACKET
Secure bracket to vehicle rail as
shown using provided hardware.
Secure all four bolts in place and
secure with a wrench.
SECURE THE ASSEMBLED ANTENNA TO
THE MOUNTING BRACKET
Assemble the spring base and mounting
bracket by placing the threads through the
opening of the mounting bracket as shown in
the illustration. Use the provided washers on
the bottom of the bracket opening then add
the nut to bottom of the thread to secure in
place. Once complete, connect the assembled
antenna and the spring base.
ROUTE CABLE
Route cable from outside to the inside of the
cabin behind a door seal where your booster
will be located. If additional cable length is
needed, optional 5 ft extension cable has been
provided.
ALTERNATIVE MOUNT
Includes optional dome stud mount for the
OTR antenna with 3/8-24 thread
❷ ❷
© 2024 SureCall, Inc. All rights reserved
32 in.
height
16 in.
height
With Without
mast mast
extension extension
➊ ➊
Antenna
❸ ❸
Mast
extension
(optional)
Cable exit
adapter
Spring
base
Mounting
bracket
