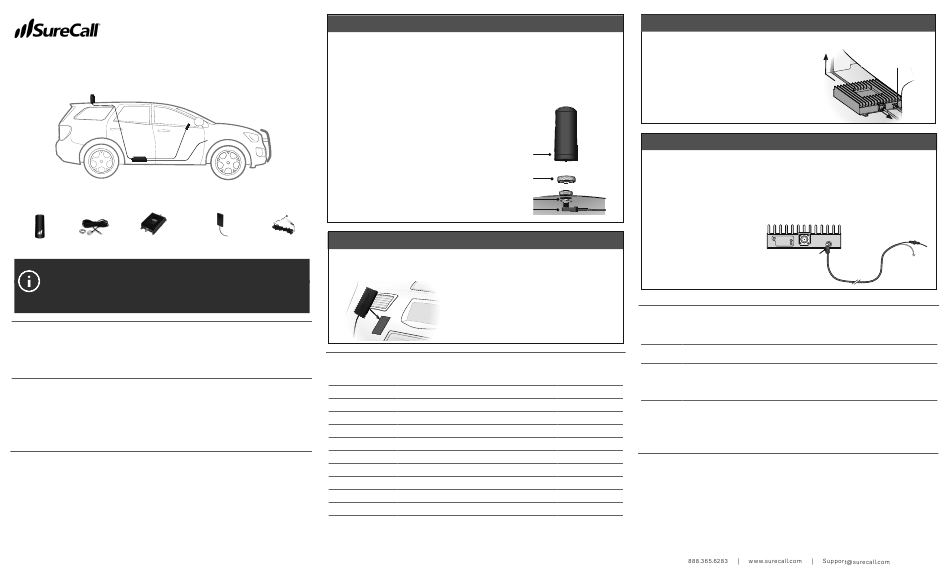

SureCall Fusion2Go 5G Fleet Quick Installation Manual

Quick Installation Guide
Fusion2Go® 5G Fleet
➊ ➋ ➋ ➊
➍ ➍
➌ ➌
➊ ➊ ➋ ➋ ➌ ➌ ➍ ➍
Outside NMO Booster
Antenna Mounting Cable
Please note: This product is designed for professional installation as the antenna is
mounted permanently through a hole drilled into the vehicle's sheet metal.
A "soft installation" should first be performed by assembling the NMO antenna and
routing the cable through an open window. After completing the remaining installa-
tion steps and successful operation is verified, proceed with permanent installation.
Have Questions?
We have answers! Reach out to our US-based support team:
Call: 1-888-365-6283
Email: support@surecall.com
Visit:
www.ca.surecall.com
Industry-Best Three-Year Warranty
Congratulations – you have just purchased the most advanced spectrum-rich vehicle amplifier
available in Canada.
Please register your new product at www.ca.surecall.com/activate.
For complete warranty text, including limitations and liability, see the Fusion2Go 5G Fleet
user manual, available online at or www.ca.surecall.com.
This is a CONSUMER device
BEFORE USE, you must meet all requirements set out in CPC-2-1-05.
You MUST operate this device with approved antennas and cables as specified by the manufacturer.
Antennas MUST NOT be installed within 20 cm of any person. You MUST cease operation of this
device immediately if requested by ISED or a licensed wireless service provider.
WARNING: E911 location information may not be provided or may be inaccurate for calls served by
using this device.
Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
The outside antenna must not be collocated or operating with any other antenna or booster.
SC-Fusion2Go5G-Fleet Rev. 1 022424
1. INSTALL OUTSIDE ANTENNA
Identify a location on the vehicle's roof that
(1) has at least a 12-inch radius clear of
obstructions and other radiating elements,
such as a radio antenna and (2) at least 6
inches away from any windows.
Using a drill with a 3/8-inch hole saw
bit, drill hole in the center of the desired
location. Remove the metal collar from the
connector and insert the NMO mounting
cable through the hole. (see illustration).
Position threads of the cable mount to
➎ ➎
extend through the center of drilled hole
and above vehicle surface.
Screw the collar to the base mount,
ensuring the mount is centered and tighten
with a wrench. Next, thoroughly clean the
mounting area before screwing the antenna
onto the NMO mount. Ensure full contact of
➎ ➎
Inside Patch 12V Hardwire
the antenna to the vehicle surface.
Antenna Power Supply
Note: The outside antenna must not be
2. INSTALL INSIDE ANTENNA
Identify a location for the inside antenna
on or near your front dashboard that is:
(1) Within 2-3 feet of typical cell phone
➍ ➍
Specifications
Uplink Frequency:
Downlink Frequency: 728-746 / 746-757 / 869-894 / 1930-1995 / 2110-2180 / 2620-2690 MHz
Supported Standards: 5G, 4G LTE cellular standards
Cellular Bands:
Maximum Gain:
Gain Adjustment:
DC Power:
Max Output Power:
RF Connectors:
Operation Temp:
Certification:
This booster is also compatible with an AC power adapter, SureCall part
# SC-AC-5.9V2.8A-B.
collocated or operating with any other
antenna or booster.
Once the antenna installation is complete,
route the NMO Antenna cable inside
the vehicle. To hide the cable, run under
headliner and trim to the desired booster
location on the floor of the vehicle.
NMO Antenna
Collar
NMO Mount
Cable
location, (2) at least 8 inches (20cm) from
cellular devices, and (3) at least 4 inches
(10cm) from any metal.
Peel Velcro backing off the inside antenna
and apply to a clean, dry surface in your
chosen location.
Or try this - Use the free vent clip provided
with your product as a mounting surface
then simply clip to an air vent.
698-716 / 776-787 / 824-849 / 1850-1915 / 1710-1780 / 2500-2570 MHz
12 / 17 / 13 / 5 / 2 / 25 / 4 / 66 / 7
50 dB Input Impedance: 50 Ω
20 dB (Automatic) Max Uplink Power: 29.0 dBm
6-15V VWSR: ≤ 2.0
1 Watt EIRP Power Consumption: ≤ 12W
FME Male (both ends) Exterior Cable: LMR 200 / 17 ft
-4º to +158º F Interior Cable: 302 series / 10 ft
IC: 7784A-FUSION2GO5G Contains IC : 8595A-NINAB1
© 2024, SureCall, Inc. All rights reserved
3. PLACE BOOSTER AND CABLES
Select a well-ventilated location for the
booster that is away from excessive heat,
direct sunlight, and moisture. We often
suggest installing the booster beneath a
seat or inside the front console.
Connect the cable from the outside antenna
to the connection marked OUTSIDE.
Then, connect the cable from inside patch
antenna to the connection marked INSIDE.
➊ ➊
4. CONNECT TO POWER
Before and while wiring the power supply,
disconnect vehicle battery. Hardwire
installation requirements vary by vehicle.
The following is only a general guide. Check
➋ ➋
with your manufacturer's vehicle for specific
electrical placement or requirements.
Locate a +12V accessory ("ACC") wire
that will switch on and off with
the ignition. Connect to the power
source and ground.
POWER
Once connections are complete,
verify operation by connecting the
DC power cord connector to the
signal booster. The Power LED on
the signal booster will illuminate to
'POWER' LED
During initialization, the LED will briefly flash YELLOW/ RED. This is part of normal operation.
LED State Status Indication
Solid Normal Normal
GREEN
Solid Reduced Indicates gain attenuation of more than 8 dB.
YELLOW Performance
Increased antenna separation is recommended. Adjust the location
of your outside and/or inside antenna to maximize the distance
between them.
Solid RED Alert – Indicates that oscillation has caused the booster to shut off.
Oscillation
Antenna repositioning is needed. Verify that there is sufficient
detected
separation between the outside and inside antennas, as well as any
potentially interfering objects or antennas.
Troubleshooting
Problem: Signal booster has no power
Connect the power supply to an alternate power source. Verify that the power source is not
controlled by a switch that has removed power from the outlet. If the POWER LED on the
signal booster remains OFF, contact tech support.
Problem: Following installation, signal coverage has not improved
(1) Verify that all cable connections are tightly fitted. (2) Try further separating the antennas.
(3) Verify that there is usable signal where the outside antenna is placed.
Hand tighten the connections and secure/
stow any loose cable.
Power connector
To
Outside
Antenna
To
Inside
➌ ➌
Patch
Antenna
indicate it is receiving power and is ready
for use. Permanently secure power cable.
Place a call in a location where you
previously experienced poor cell service
and confirm that your phone is receiving a
boosted signal.
➌ ➌
➎ ➎
GUI
BL DC 5V-12V
INSIDE
Power Connector
