BZBGEAR BG-3GS14 Quick Installation Manual

BG-3GS14
SDI 1X4 Splitter
Quick Installation Guide

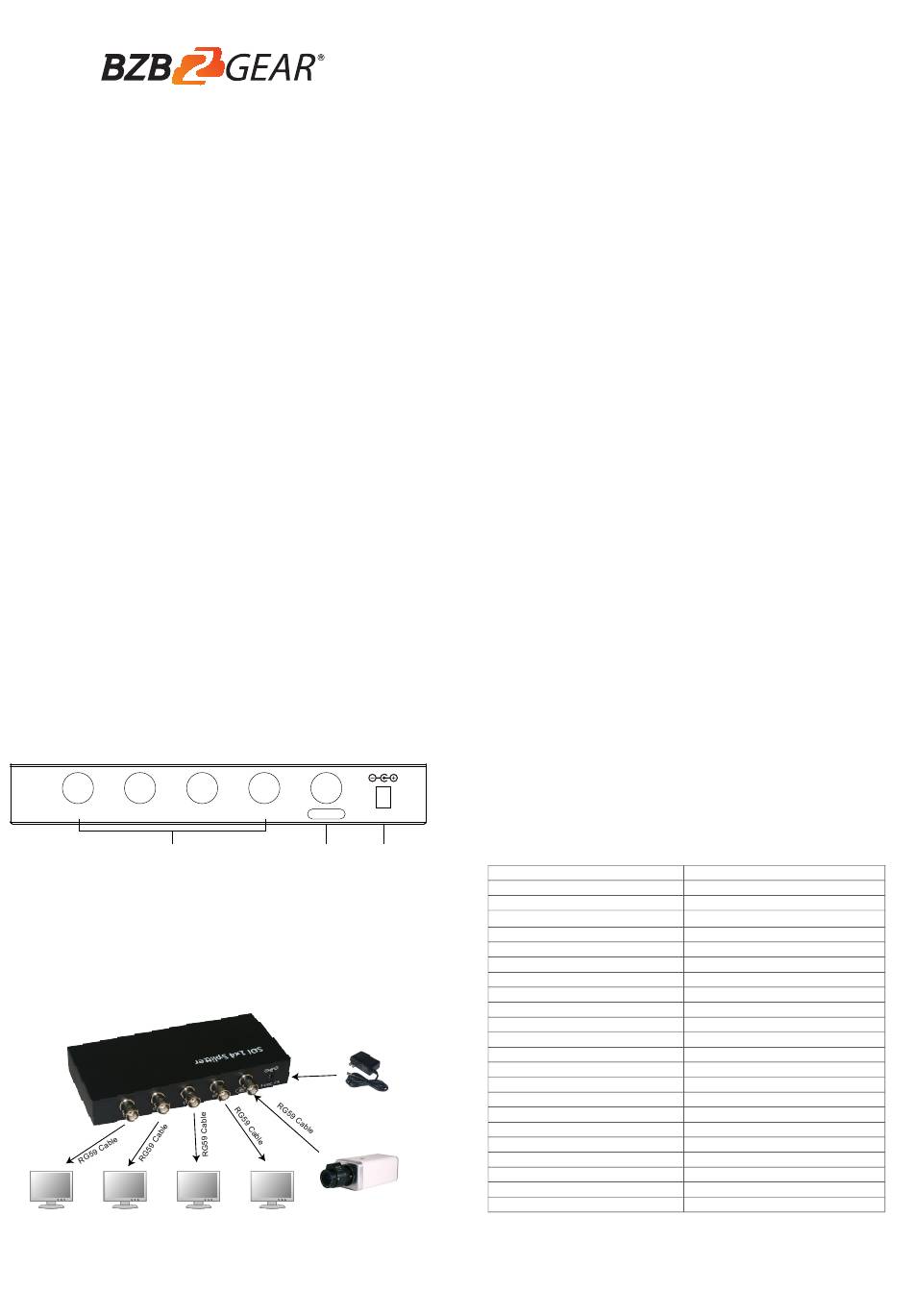

PANEL DESCRIPTIONS:
OUT4 OUT3
SDI Output
DC 5V In: Power in, DC 5V/2A adapter use.
SDI Input: connect to SDI signal source, such as SDI camera.
SDI Output: connect to SDI monitors or other SDI devices.
CONNECTION DIAGRAM:
SDI monitor or SDI monitor or SDI monitor or
other SDI device other SDI device other SDI device
CONNECTION AND OPERATION:
OUT2 OUT1
INPUT 5 V/DC, 2 A
SDI Input DC 5V In
camera or TV system
or other SDI device
SDI monitor or
other SDI device
INTRODUCTION:
This is a 1X4 SDI splitter, which makes it possible to transfer 1 SDI signal to
4 monitors simultaneously.
FEATURES:
This product is specially designed with equalizer IC in its input and drive IC in
its outputs. All of the input and outputs support long coaxial cable.
Supports multiple video resolution：
• SD 480i, 576i and 625i
• HD 720p @24/25/30/50/60
• HD 1080i @50/60
• HD 1080p @24/25/30
• 3G 1080p @50/60
Supports multiple color space：
• RGB or YCbCr 4:4:4 sampled
• YCbCr 4:2:2 or 4:2:0 sampled
Supports wide range data rates：270Mbps～2.97Gbps
Supports multiple deep color：8bit, 10bit, 12bit
PACKAGE CONTENTS:
● 1× BG-3GS14
● 1x Power adapter 5V@2A
● 1× User Manual
1
(1) Connect the product to appropriate power.
(2) Connect the SDI signal to the "IN" through 75Ω coaxial cable of high quality
(RG59 cable or equivalent as well).
(3) Connect the SDI monitor or other SDI devices to the "OUT1"
("OUT2", "OUT3", "OUT4") through 75Ω coaxial cable.
(4) Operate the SDI signal to start the show.
SPECIFICATIONS:
Signal Input/ Output
Input Connector
Output Connector
SDI Cable Distance (RG59 cable)
3G Mode
HD Mode
SD Mode
Mechanical
Size(L-W-H)
Weight (Net)
Environmental
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Power Requirement
External Power Supply
Power consumption (Max)
Regulatory Approvals
Converter Unit
Power Supply
Accessories Adapter
User Manual
Note: Specifications are subject to change without notice
