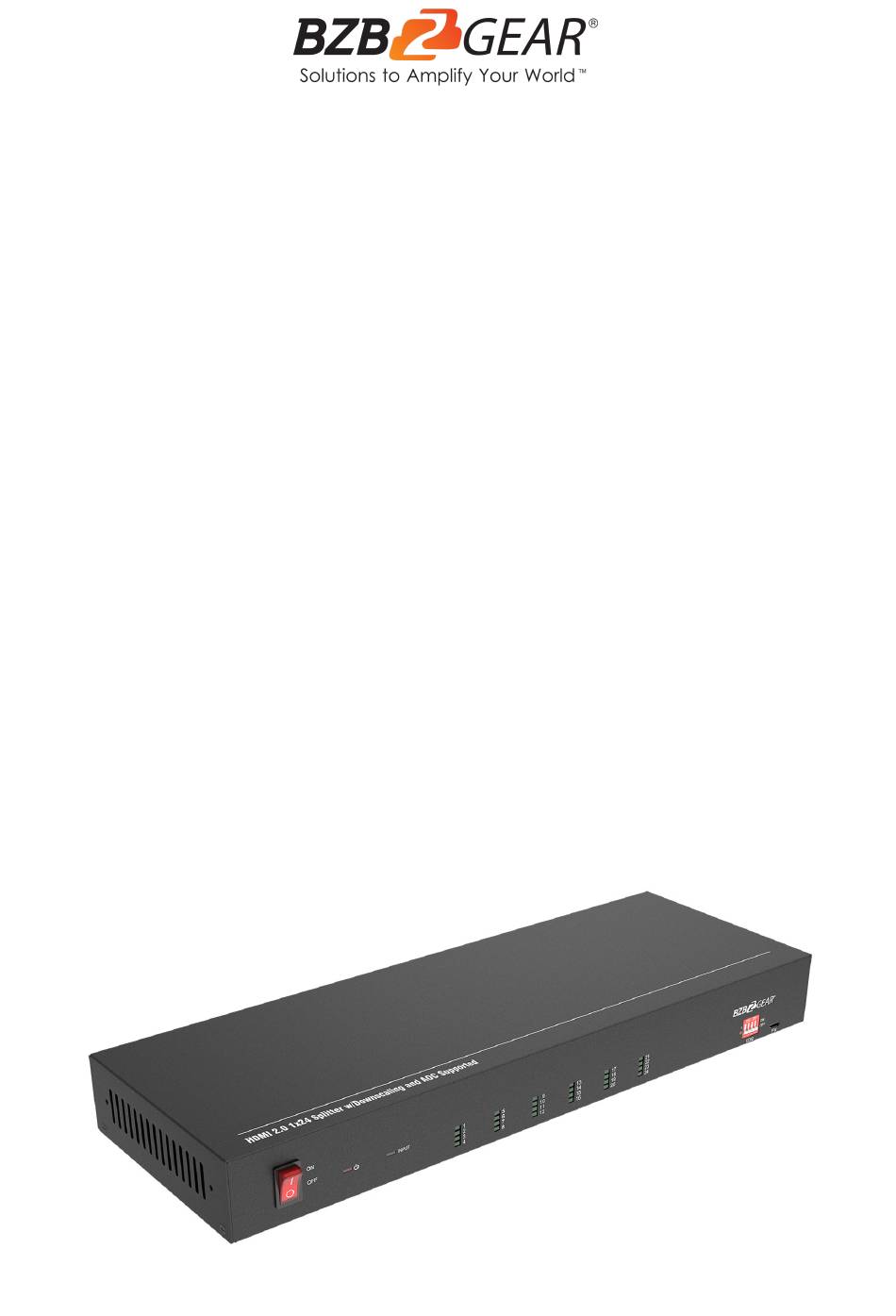

- Page 1 BG-UHD-DA1X24 1X24 4K 18Gbps UHD HDMI Splitter with Downscaling/Audio Extraction /RS-232 and Active Optical Cable Support User Manual...
- Page 2 BZBGEAR BG-UHD-DA1X24 PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-UHD-DA1X24 PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Specifications Operation Controls and Functions DIP Switch Operation RS232 Control Video Resolution Down-scaling Firmware Upgrade Application Example Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 4: Statement
● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards. -
Page 5: Introduction
HDR 10, Dolby Vision, and features an advanced EDID management system using a 4-pin DIP switch on the front panel of the unit. The BG-UHD-DA1X24 offers downscaling so a 4K video input can automatically be downscaled to a 1080p output when connecting a legacy display. -
Page 6: Specifications
BZBGEAR BG-UHD-DA1X24 PRODUCT MANUAL Specifications Video Input (1) HDMI Input Connector (1) Type-A female HDMI Input Video Resolution Up to 4K@60Hz 4:4:4 8bit, HDR10, Dolby Vision Output (24) HDMI Output Connector (24) Type-A female HDMI Output Video Resolution Up to 4K@60Hz 4:4:4 8bit, HDR10, Dolby Vision, supports 4K to 1080p down-scaling... -
Page 7: Operation Controls And Functions
BZBGEAR BG-UHD-DA1X24 PRODUCT MANUAL Operation Controls and Functions Front Panel 1. POWER SWITCH: Power on/off the splitter. 2. POWER LED: Illuminates red when the device is powered on. 3. INPUT LED: Illuminates green when an HDMI input is detected. 4. OUTPUT LEDs (1-24): Illuminates green when an HDMI output on the corresponding channel is detected. -
Page 8: Dip Switch Operation
BZBGEAR BG-UHD-DA1X24 PRODUCT MANUAL DIP Switch Operation The 4-pin DIP switch on the front panel of the unit is used for EDID management and HDCP management. “0” is when a switch is in the lower (OFF) position, and “1” while the switch is in the up (ON) position. -
Page 9: Rs232 Control
BZBGEAR BG-UHD-DA1X24 PRODUCT MANUAL RS232 Control Connect the RS232 port to control device (e.g. PC) with RS232 cable. The splitter can be controlled by sending RS232 commands. Set the dip switches to “1111” to control EDID and HDCP settings. RS232 Commands The command lists below are used to control the splitter. - Page 10 BZBGEAR BG-UHD-DA1X24 PRODUCT MANUAL Setting Commands Command Description Command Example and Feedback <User edid ready,Please send edid data Upload user-defined EDID. The EDID DIP switch must in 10s. <SetUpdateEdid_True/False >SetUpdateEdid be set as “1111”. <Time out to send edid Set the EDID to [Param].
-
Page 11: Video Resolution Down-Scaling
BZBGEAR BG-UHD-DA1X24 PRODUCT MANUAL Video Resolution Down-scaling This product supports video resolution downscaling. A 4K input can be automatically degraded to a 1080P output to support legacy displays as shown in the chart below. Input Output Resolution Refresh Color Space... -
Page 12: Firmware Upgrade
BZBGEAR BG-UHD-DA1X24 PRODUCT MANUAL Firmware Upgrade Please follow the steps below to upgrade firmware via the Micro-USB port: 1. Prepare the latest upgrade file (.bin) and ensure it is named “FW_MV.bin” on the PC. 2. Power off the splitter and connect the Micro-USB (FW) port of the splitter to the PC with a USB cable. -
Page 13: Tech Support
Tech Support Have technical questions? We may have answered them already! Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions. -
Page 14: Warranty
BZBGEAR BG-UHD-DA1X24 PRODUCT MANUAL Warranty BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended two-year warranty is available for our cameras upon registration for a total of five years. For complete warranty information, please visit bzbgear.com/warranty. -
Page 15: Mission Statement
AVoIP, professional broadcasting, conferencing, home theater, to live streaming solutions. We pride ourselves on unparalleled customer support and services. Our team offers system design consultation, and highly reviewed technical support for all the products in our catalog. BZBGEAR delivers quality products designed with users in mind. · ·... -
Page 16: Copyright
PRODUCT MANUAL Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
