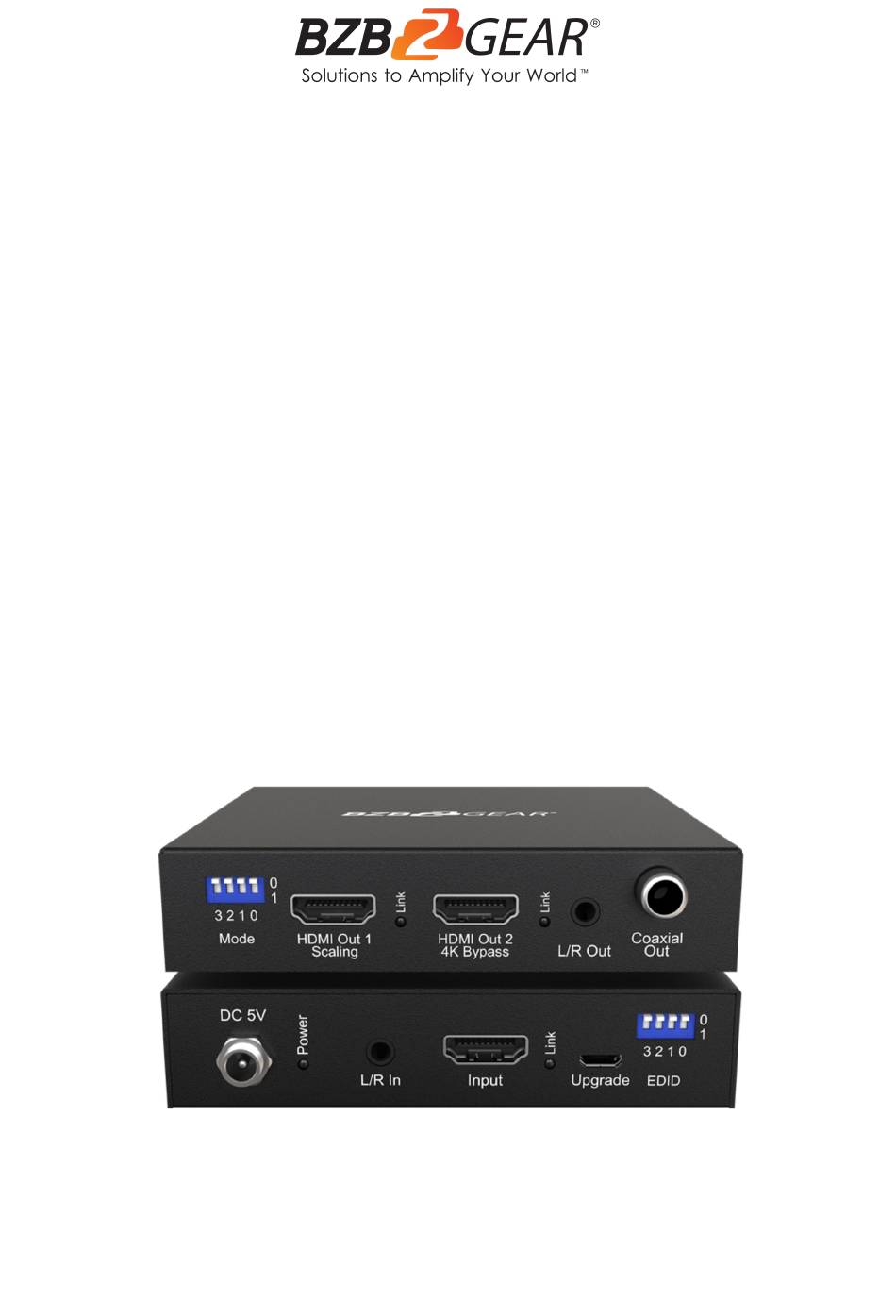

- Page 1 BG-UHD-SC1X2 1X2 4K 18Gbps UHD Splitter/Scaler with Analog Audio Embedder & Digital Audio De-embedder User Manual...
- Page 2 BZBGEAR BG-UHD-SC1X2 PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-UHD-SC1X2 PRODUCT MANUAL Table of Contents Statement Safety Precaution Introduction Features Package Contents Specifications Application Example Panel Descriptions EDID and Mode Dip Switch Settings Tech Support Limited Product Warranty Terms Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 4: Statement
● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards. -
Page 5: Introduction
4K video source to be distributed to multiple displays that have video resolution limits. The BG-UHD-SC1X2 supports down-scaling of 4K video to a fixed resolution of 1080p or to a lower color gamut if the screen does not support 4K (4:4:4) using the HDMI Scaler Port. It also offers audio Embedding and De-embedding, advanced EDID management and is... -
Page 6: Specifications
BZBGEAR BG-UHD-SC1X2 PRODUCT MANUAL Specifications Technical Specifications Bandwidth 18Gbps Video Input Connectors 1x HDMI Type A, 19-pin, female Audio Input Connectors 1x 3.5mm stereo jack (L/R) Video Output Connectors 1x HDMI Type A, 19-pin, female Audio Output Connectors 1x 3.5mm stereo jack (L/R) -
Page 7: Panel Descriptions
BZBGEAR BG-UHD-SC1X2 PRODUCT MANUAL Panel Descriptions Name Function Description Control settings such as HDCP, Audio bypass, or always convert 4K to 1080p (see Mode DIP Switch the “EDID and Mode Dip Switch Settings” section of this manual for more information). -
Page 8: Edid And Mode Dip Switch Settings
BZBGEAR BG-UHD-SC1X2 PRODUCT MANUAL EDID and Mode Dip Switch Settings Mode DIP Switch Setting Description 1xx0 Always convert a 4K signal to 1080p 0xx0 Auto convert 4K to 1080p when the detected display device does not support 4K x1x0 HDCP follow source device... -
Page 9: Tech Support
Tech Support Have technical questions? We may have answered them already! Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions. -
Page 10: Mission Statement
Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
