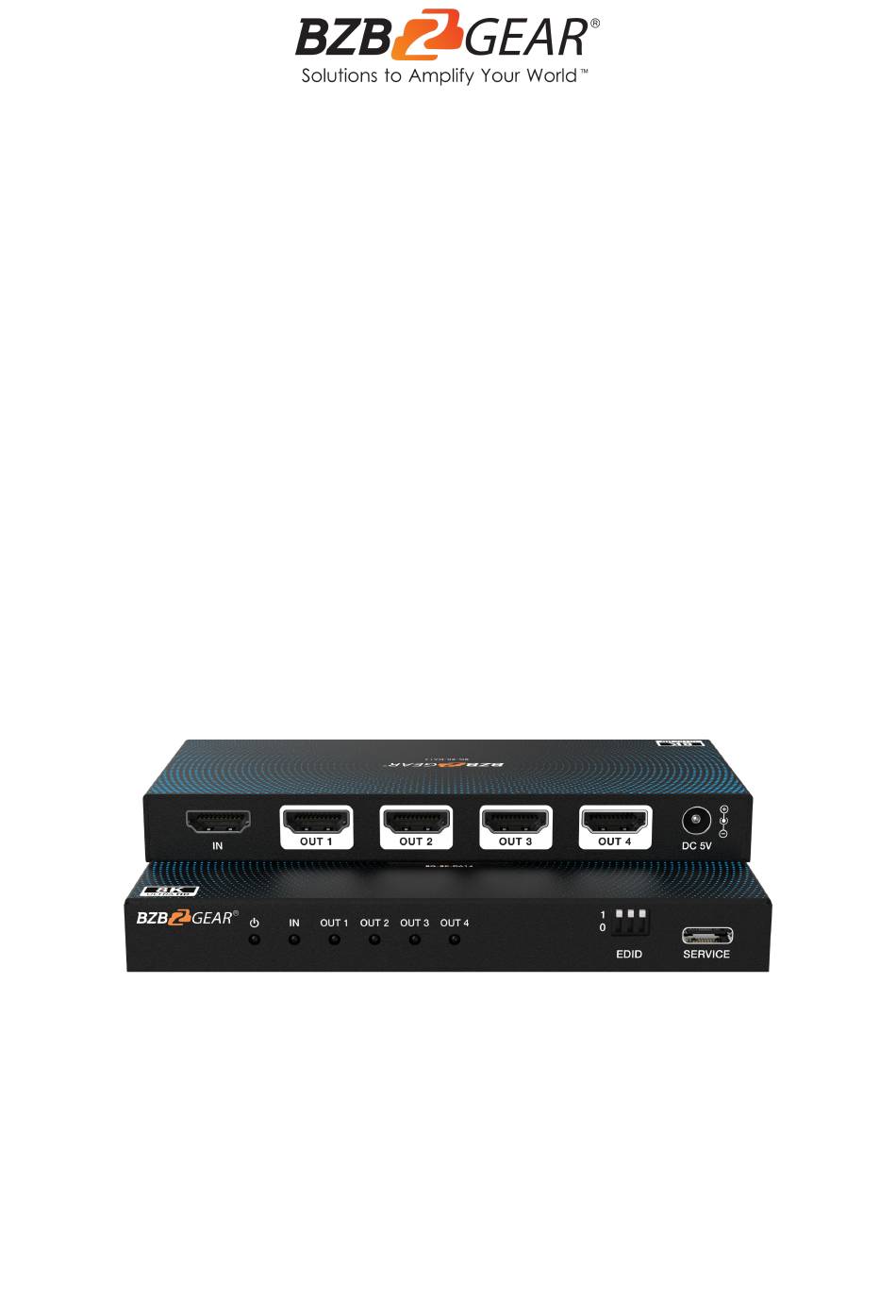

- Page 1 BG-8K-DA14 1x4 8K UHD HDMI 2.1 Splitter with Auto Downscaling (8K60/4K120 and VRR/ALLM/QMS/QFT/SBTM Support) User Manual...
- Page 2 BZBGEAR BG-8K-DA14 PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-8K-DA14 PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Surge protection device recommended Introduction Features Packing List Specifications Operation Controls and Functions Auto Downscaling & Auto Converting Connection Diagram Troubleshooting Tech Support Limited Product Warranty Terms Mission Statement Copyright ·... -
Page 4: Statement
● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards. -
Page 5: Introduction
PRODUCT MANUAL Introduction The BG-8K-DA14 1x4 splitter is an advanced solution for simultaneously distributing a single HDMI signal to four HDMI outputs, with video resolution up to 8K at 60Hz (4:2:0, 12-bit). It supports data rates up to 48Gbps, complying with HDMI 2.1 and HDCP 2.3 standards. -
Page 6: Specifications
BZBGEAR BG-8K-DA14 PRODUCT MANUAL Specifications Technical HDMI Compliance HDMI 2.1 HDCP Compliance HDCP 2.3 Video Bandwidth 48Gbps Video Resolution Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit Color Depth 8/10/12-bit RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 Color Space HDMI input/output: Audio Formats... -
Page 7: Operation Controls And Functions
BZBGEAR BG-8K-DA14 PRODUCT MANUAL Operation Controls and Functions Front and Rear Panel Name Function Description Power LED When the device is powered on, the red LED will be on. When the HDMI IN port connects to an active source device, the IN LED green LED will be on. -
Page 8: Auto Downscaling & Auto Converting
BZBGEAR BG-8K-DA14 PRODUCT MANUAL Auto Downscaling & Auto Converting This 1x4 splitter supports independent auto downscaling and auto-converting on all outputs. It will automatically output the correct HDMI signal according to the EDID of the display device. Before downscaling it will compare all the EDID of the connected display devices and select the minimum resolution to downscale and output. -
Page 9: Connection Diagram
BZBGEAR BG-8K-DA14 PRODUCT MANUAL Connection Diagram · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 10: Troubleshooting
BZBGEAR BG-8K-DA14 PRODUCT MANUAL Troubleshooting Problems Causes Solutions No Power / All LED off Power supply not connected, Check if the power supply is connected fully, or wrong power connected correctly and the supply. output voltage value is within recommended specifications. -
Page 11: Tech Support
Tech Support Have technical questions? We may have answered them already! Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions. -
Page 12: Mission Statement
Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
