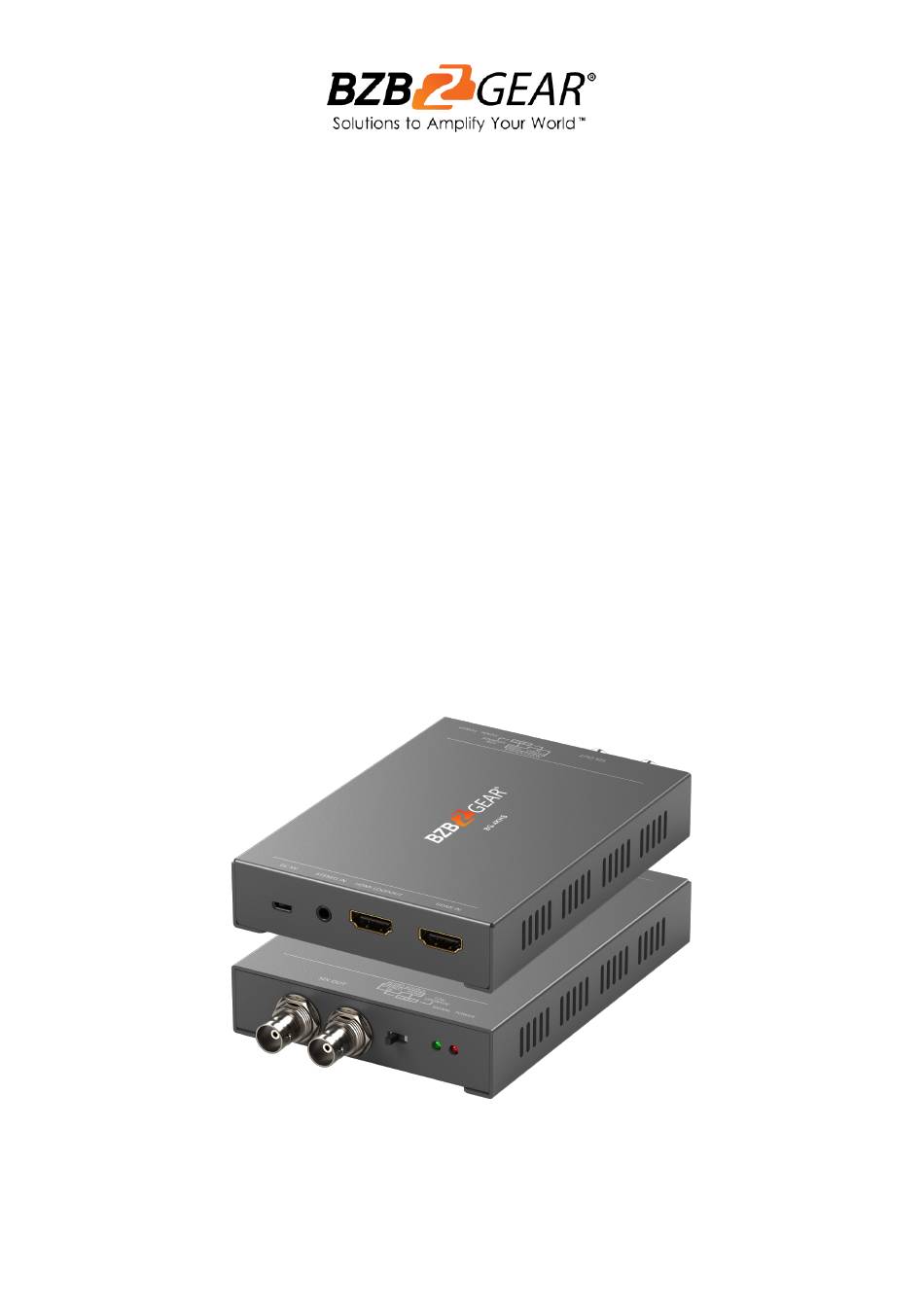

- Page 1 BG-4KHS HDMI 2.0 to 12G/6G/3G/HD-SDI Converter with HDMI Loop-out and Audio Embedder User Manual...
- Page 2 BZBGEAR BG-4KHS PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-4KHS PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Specifications Panel Descriptions Connection Diagram Supported Resolutions Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906... -
Page 4: Statement
● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards. -
Page 5: Introduction
PRODUCT MANUAL Introduction The BZBGEAR BG-4KHS is an HDMI 2.0 to 12G/6G/3G/HD-SDI converter with an HDMI loop-out and audio embedder. The HDMI signal is digitally converted into SDI, guaranteeing lossless conversion for both audio and video. Featuring up to 8 channels of audio, the BG-4KHS is compatible with 7.1 or 5.1 surround sound systems. -
Page 6: Specifications
BZBGEAR BG-4KHS PRODUCT MANUAL Specifications Technical SDI standards 12G/6G/3G/HD-SDI HDMI standards HDMI 2.0 Auto 3G/HD/SD-SDI detection [SDI] [11.88 Gbps, 11.88/1.001 Gbps] Video support [HDMI] [up to 18Gbps] [12G] 4K @50/59.94/60Hz [6G] 4K2K @23.98/24, 25, 29.97, 30Hz Video bandwidth [3G] 1080p50/59.94/60 [HD] –... -
Page 7: Panel Descriptions
BZBGEAR BG-4KHS PRODUCT MANUAL Panel Descriptions 1. SDI OUT 12G/6G/3G/HD-SDI output 2. SDI OUT 12G/6G/3G/HD-SDI output [Left] Stereo Audio Embedding Function (2ch) 3. Slide Switch [Middle] HDMI Audio Bypass (up to 7.1ch) [Right] F/W update 4. LED Signal LED indicator 5. -
Page 8: Connection Diagram
BZBGEAR BG-4KHS PRODUCT MANUAL Connection Diagram · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 9: Supported Resolutions
BZBGEAR BG-4KHS PRODUCT MANUAL Supported Resolutions 12G-SDI Output 4K @50/59.94/60Hz SMPTE ST-2082 6G-SDI Output 4K2K @23.98/24, 25, 29.97, 30Hz SMPTE ST-2081 3G-SDI Output 1080p @ 50/ 59.94 / 60Hz SMPTE 424M, SMPTE 425M HD-SDI Output 720p @ 50Hz SMPTE 296M -3 720p @ 60 / 59.94Hz... -
Page 10: Tech Support
Tech Support Have technical questions? We may have answered them already! Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions. Or explore our YouTube channel, BZB TV (youtube.com/c/BZBTVchannel), for help setting up,... -
Page 11: Warranty
BZBGEAR BG-4KHS PRODUCT MANUAL Warranty BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended two-year warranty is available for our cameras upon registration for a total of five years. For complete warranty information, please visit BZBGEAR.com/warranty. -
Page 12: Copyright
PRODUCT MANUAL Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form.
