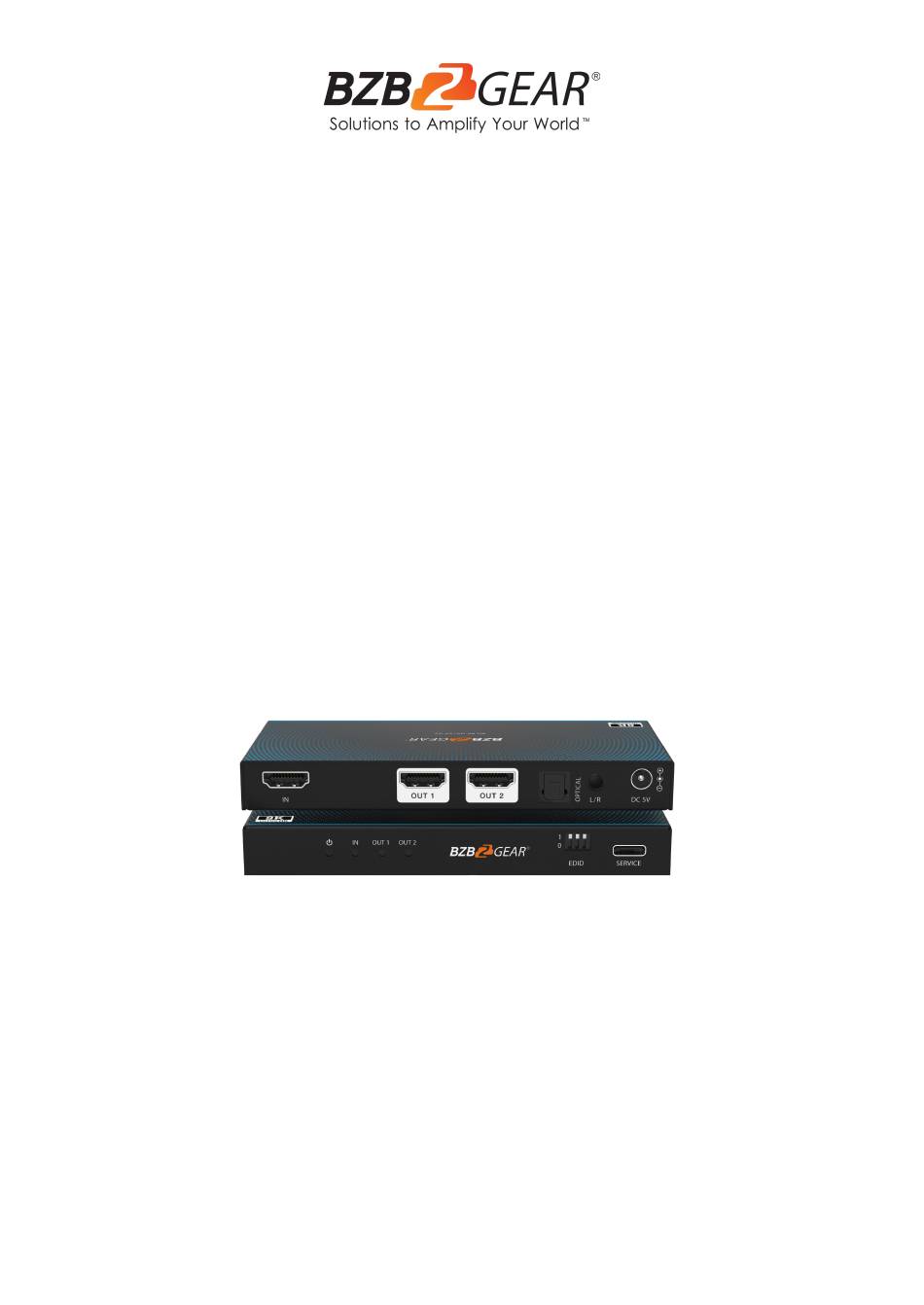

- Page 1 BG-8K-DA12A-G2 1x2 8K HDMI 2.1 Splitter with Audio De-Embedding User Manual...
- Page 2 BZBGEAR BG-8K-DA12A-G2 PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-8K-DA12A-G2 PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Specifications Operation Controls and Functions Auto Downscaling & Conversion Connection Diagram Troubleshooting Tech Support Limited Product Warranty Terms Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 4: Statement
● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards. -
Page 5: Introduction
PRODUCT MANUAL Introduction The BG-8K-DA12A-G2 is a 1x2 HDMI 2.1 splitter that distributes one source to two displays while preserving top-tier video and audio quality. It supports up to 8K@60Hz (4:2:0, 12-bit) and 4K@120Hz (4:4:4, 12-bit) with 48 Gbps FRL bandwidth and HDCP 2.3 compliance for secure, uninterrupted transmission. -
Page 6: Specifications
BZBGEAR BG-8K-DA12A-G2 PRODUCT MANUAL Specifications Technical Specifications HDMI Compliance HDMI 2.1 HDCP Compliance HDCP 2.3, HDCP 1.4 Video Bandwidth 48Gbps FRL and 18Gbps TMDS Video Resolution Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit Color Depth 8/10/12bit Color Space RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0... -
Page 7: Operation Controls And Functions
BZBGEAR BG-8K-DA12A-G2 PRODUCT MANUAL Operation Controls and Functions Front and Rear Panel Power LED The power LED lights in red when the device is working IN LED When the HDMI IN port connects to an active source device, the green LED will be on. -
Page 8: Auto Downscaling & Conversion
BZBGEAR BG-8K-DA12A-G2 PRODUCT MANUAL Auto Downscaling & Conversion This 1x2 splitter features automatic downscaling and format conversion on all outputs. Before downscaling, it analyzes the EDID data from all connected display devices and selects the lowest supported resolution to ensure optimal compatibility. For example: Note: If the source resolution is downscaled and converted to 1080P DVI according to the EDID of display devices, it will be output without sound on the TV. -
Page 9: Connection Diagram
BZBGEAR BG-8K-DA12A-G2 PRODUCT MANUAL Connection Diagram · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 10: Troubleshooting
BZBGEAR BG-8K-DA12A-G2 PRODUCT MANUAL Troubleshooting Problems Causes Solutions No Power / All LED off Power supply not connected, Check if the power supply is connected fully, or wrong power connected correctly and the supply. output voltage value is within recommended specifications. -
Page 11: Tech Support
Tech Support Have technical questions? We may have answered them already! Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions. -
Page 12: Mission Statement
Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
