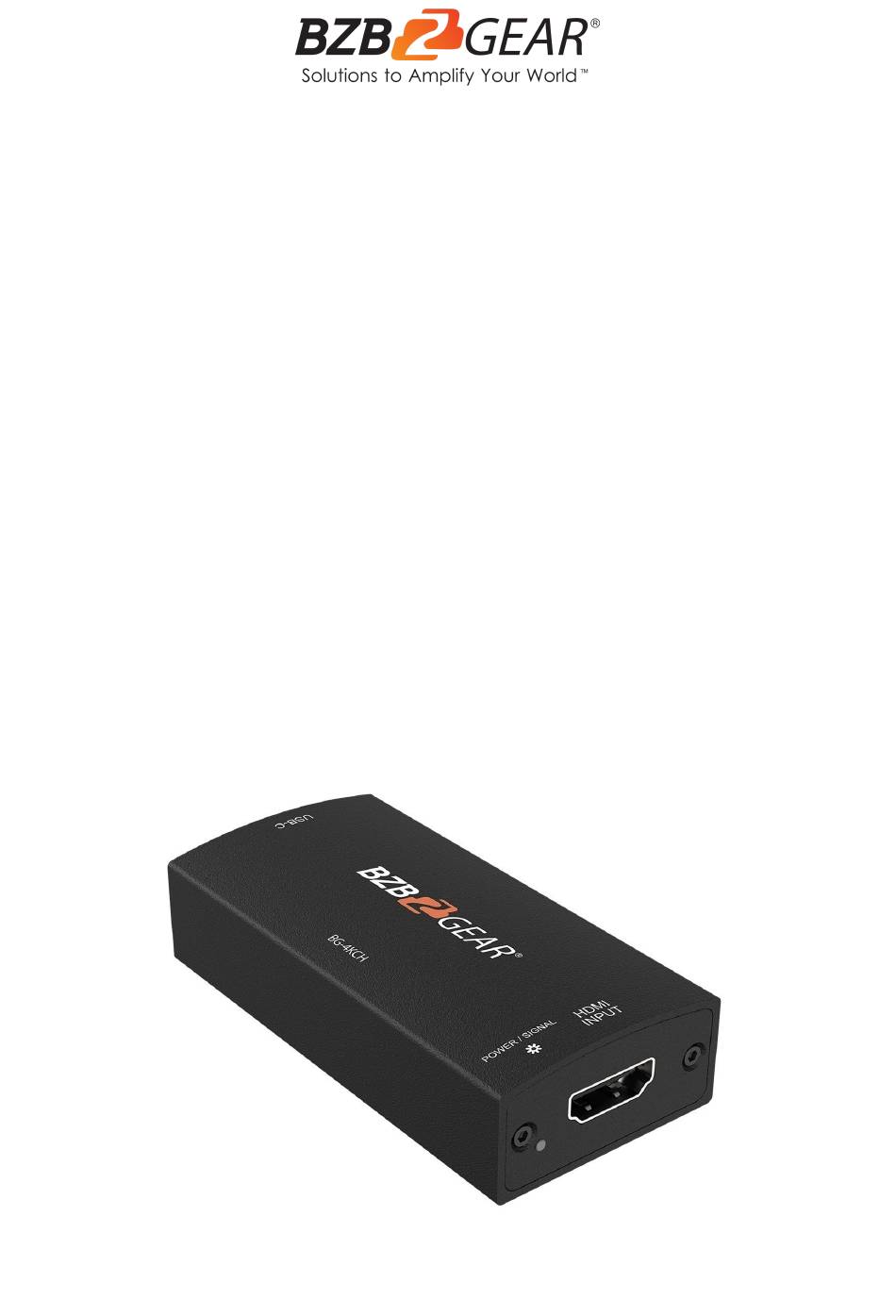

- Page 1 BG-4KCH 4K UHD/1080P FHD USB-C Video Capture Device/Box with Scaler User Manual...
- Page 2 BZBGEAR BG-4KCH PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-4KCH PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Technical Specifications Operation Controls and Functions Video Streaming Stream and record videos with OBS Troubleshooting Usb Pin Definition Tech Support Warranty Mission Statement Copyright · ·... -
Page 4: Statement
● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards. -
Page 5: Introduction
YouTube, Twitch, and Facebook. The utilization of large volume image buffer technology prevents video tearing, allowing for optimal image reproduction. Compact and portable, the BG-4KCH is an ideal fit for a video technicians toolkit, as well as anyone needing a discreet capture device. -
Page 6: Technical Specifications
BZBGEAR BG-4KCH PRODUCT MANUAL Technical Specifications Technical Role of usage Video Capture Device Input Video bandwidth 297MHz Output bandwidth Up to 350Mbps (USB-C) Video support (USB-C) Up to 4K2K@30 Audio Input HDMI Embedded Audio Audio Format 2CH 16bit PCM Recording Mode Software Compression RGB/YUY2/NV12 (USB3.1 Gen 1),... -
Page 7: Operation Controls And Functions
BZBGEAR BG-4KCH PRODUCT MANUAL Operation Controls and Functions 1. USB-C OUT: Connect to a USB host (PC, NB, MAC…) 2. LED INDICATOR: Power & input signal indicator LED ● [Blue] Device power on ● [Green] Input detects HDMI signal ● [Red]* Input source is HDCP protected 3. - Page 8 BZBGEAR BG-4KCH PRODUCT MANUAL 2. Find "Preferences" in the left menu, and click "Channel", then you will see "Primary Steam key" on the screen. Copy the "Primary Steam key" and paste it into the "Stream Key" field in the OBS, then click "Start Streaming" in the software.
- Page 9 BZBGEAR BG-4KCH PRODUCT MANUAL YouTube 1. Browse the YouTube website (https://www.youtube.com/) and log in, then click "Go live" from the "Create" icon menu at the top right of the screen. * If your account is using YouTube for the first time to create a video stream, you need to wait 24 hours to enable the function.
- Page 10 BZBGEAR BG-4KCH PRODUCT MANUAL 4. Next, go back to YouTube, and then wait for 30-60 seconds, the player will display the live preview. At the same time, the "GO LIVE" button at the top right will turn blue, please press this button.
-
Page 11: Stream And Record Videos With Obs
BZBGEAR BG-4KCH PRODUCT MANUAL Stream and record videos with OBS OBS is a popular USB capture freeware and has excellent compatibility. Please start with OBS if users are not familiar with USB capture devices. Download the software Browse the download page of the OBS official website (https://obsproject.com/download), then select the suitable computer operating system and start downloading. - Page 12 BZBGEAR BG-4KCH PRODUCT MANUAL 1. First, find the "Scenes" window, click "+" in the lower left corner, and then enter the name of the scene to create a new scene. 2. Find the "Source" window, click "+" in the lower left corner, and then select "Display Capture"...
- Page 13 BZBGEAR BG-4KCH PRODUCT MANUAL 4. Click "Settings" and then select "Stream" to perform streaming settings. Users can choose service providers, including Twitch, YouTube, etc. 5. Paste the stream key provided by the service provider into the "Stream Key" field, then click "Apply" and "OK" after setting. In addition, users can lick "Get Stream Key"...
-
Page 14: Troubleshooting
Troubleshooting 1. The BG-4KCH supports HDCP to protect legal content from copyright infringement. If an HDMI input is eequipped with HDCP protection, the status LED will turn red to indicate the presence of HDCP. -
Page 15: Usb Pin Definition
BZBGEAR BG-4KCH PRODUCT MANUAL Usb Pin Definition · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 16: Tech Support
Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
