UK: INSTRUCTION MANUAL
Read these instructions for use carefully so as to familiarize yourself
with the appliance before connecting it to its gas cartridge.
Keep these instructions for future reference.

TECHNICAL DATA:

Appliance Merapi Pro Duo
name: (model: 651269 / SG-203-18)
Type of gas:
Category:
Type of gas Both appliances should only be used with OJC COMMERCE BRAND
cartridge: gas cartridges MINT and LEMON, compliant with EN 417
Nominal rate
in g/h and
in kW (Hs):
Injector size:

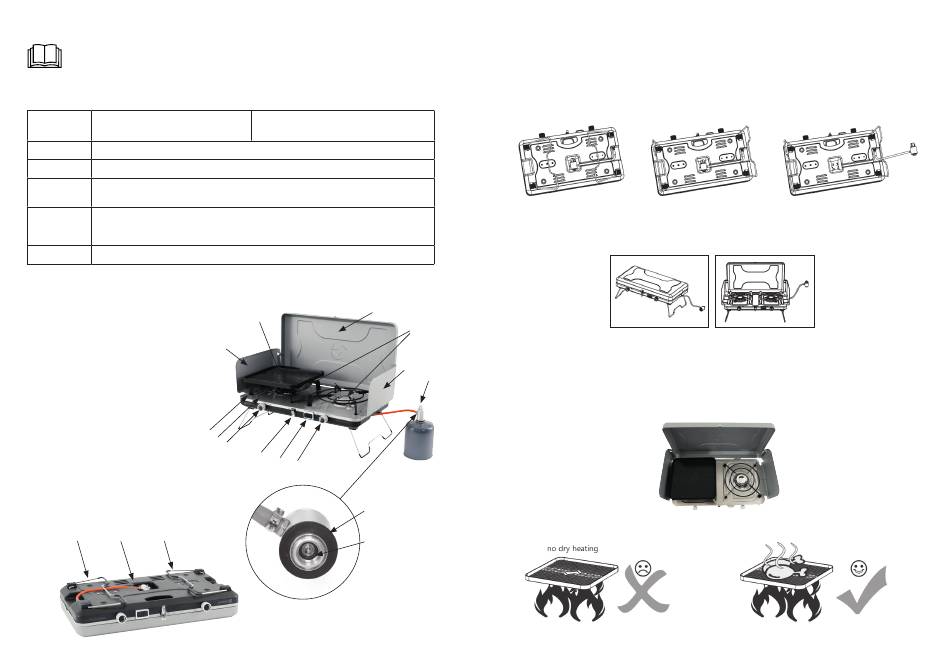

PART LIST

1. Windshield protection left and right
2. Grill plate
3. Pot holders / grillplate supports
4. Burners
5. Drip tray
6. Easy-close latch
7. Individually controlled auto piezo
ignition for left and right burners
8. Burner knob for left burner
9. Burner knob for right burner
3
10. Lid
11. Collapsible legs
12. Hose and regulator
(gas cartridge not included)
13. Hose and regulator slot
14. Rubber washer
15. Sealing O-ring
11 13 11
Merapi Pro Duo Deluxe
(model: 651270 / SG-203-18)
Butane-propane mixture
Direct vapour pressure
Qn: 2 x 3.0 kW (2 x 218 g/h)
2 x Ø 0.37 mm
10
2
1
5
8
6
7
9
14
15
4
ASSEMBLY INSTRUCTIONS
Ensure the appliance is correctly assembled before use. Failure to do so may pose a danger to the user and
others nearby.
• Remove all packaging materials from around the appliance.
• Turn the appliance upside down to access the underside for assembly.
• Unfold the legs.
• Detach the regulator from its storage slot by gently pulling it out of its fixed position.
• Place the appliance upright on a flat surface with the legs fully extended (See Picture A).
• Open the lid (10) and attach both windshields (1) to the lid.
Ensure the two small hooks on the inside of the lid are properly connected to the small holes molded
on each windshield (See Picture B)
4
Applicable for Merapi Pro Duo Deluxe (651270 / SG-203-18), or if you purchased the Merapi Pro Grill
Plate (651295)
1
• Only use the appliance with the included grill plate, or if you have purchased the Merapi Pro Grill Plate
12
(651295).
• When using the grill plate, carefully place it on the pan support, ensuring it sits securely and evenly
without wobbling.
The legs of the grill plate should be placed on the inner circle of the pot holder/grill plate support.
• Place meat or other food items on the grill plate. Do not heat the grill plate without food on it, as this
can cause it to overheat and become deformed.
• Once the food is removed from the grill plate, immediately turn off the burner underneath.
UK: INSTRUCTION MANUAL
A B
5
