Transmitter Switches and LEDs

Bind: See the Binding section for information on re-binding your transmitter and aircraft if necessary. The included
transmitter comes bound to the receiver/aircraft from the factory, therefore binding is not typically necessary.
High/Low Rate Switch: This switch supports high and low rate functions on aileron, elevator and rudder channels. We
recommend using low rates when rst learning to y or for smooth and more precise maneuvering, and high rates for more
aggressive maneuvers and aerobatics. In the upper, or "High" position, servo travel is 100% on these channels. In the
lower, or "Low," position, servo travel decreases to 70%.
Flight Mode Switch: This switch is used to enable and disable the altitude hold function. Position "0" is Stability mode
with altitude hold disabled. Position "1" and Position "2" are Stability Mode with altitude hold enabled.
Throttle Cut Switch: This switch activates throttle cut.
With the throttle cut on (switch position 1), throttle input from the throttle stick is deactivated. This safety feature ensures any
accidental bump of the throttle stick will not activate the motor while the ight battery is connected. With the throttle cut off
(switch position 0), any position of the throttle stick above the lowest setting will activate the aircraft motor.
NOTICE: Always ensure the throttle stick is at the lowest setting before switching the throttle cut function off. Failure to
do so will result in the motor activating.
LED and Audible Indications:
Flashing with beeps: The transmitter is in bind mode, because the bind button was held down while the transmitter was
powered on. See the Binding section for more information.
Pulsates with one low tone beep every 2 seconds: The transmitter battery voltage has dropped below 4.7 volts.
Replace the transmitter batteries immediately. If this happens while ying, land the aircraft as soon as possible.
Inactivity Alarm: If the transmitter is left inactive for 10 minutes, it will begin to beep until the sticks are moved or the
power is turned off.
EN
www.modellmarkt24.ch

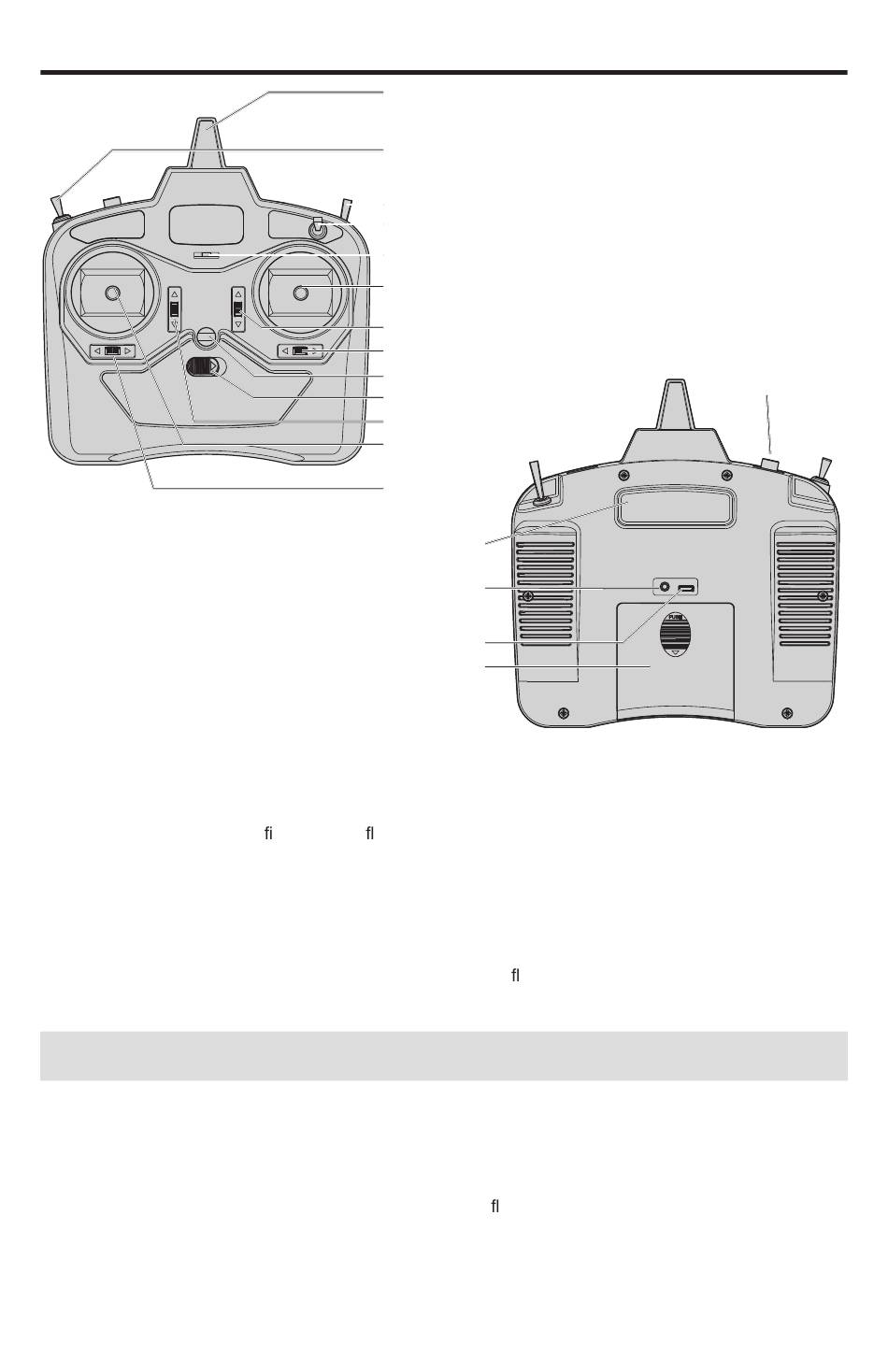

Antenna
Flight Mode Switch
Throttle Cut Switch
Dual Rate Switch
1 Green LED
Elevator/Aileron Gimbal
Elevator Trim
Aileron Trim
Neck Strap Mount
Power Switch
Throttle Trim
Throttle/Rudder Gimbal
Rudder Trim
Integrated Handle
3.5mm jack
(factory use only)
USB-C Port
(data output only)
Battery Compartment
6
Bind
