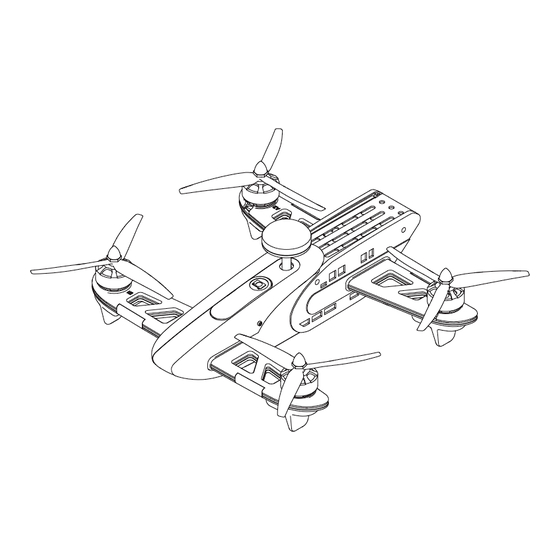

Summary of Contents for Blade Vusion 250 V2

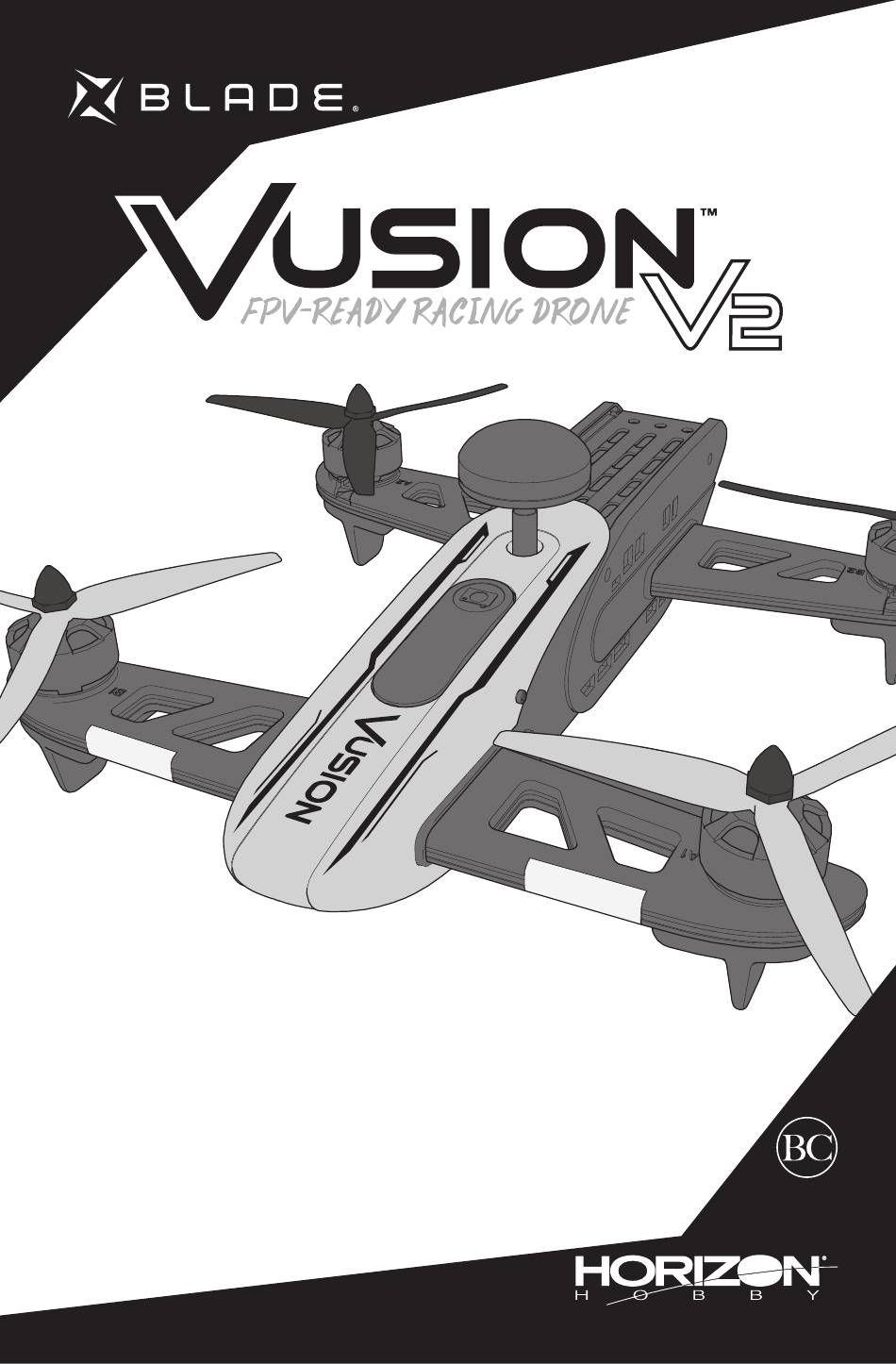

  • Page 1 Instruction Manual Manuel d’utilisation...
  • Page 2 NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit www.horizonhobby.com and click on the support tab for this product. Meaning of Special Language The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high probability of superfi...
  • Page 3: Table Of Contents

    Table of Contents First Flight Preparation ............4 Video Transmitter ............... 10 Flying Checklist ..............4 FPV Operation ..............11 Charging Warnings............... 4 Adding An External Spektrum™ Receiver ......12 Battery Charging ..............4 Installing the Propellers............13 Installing the Transmitter Batteries ........5 Replacing the Quadcopter Motor Arms .......
  • Page 4: First Flight Preparation

    First Flight Preparation Flying Checklist • Remove and inspect contents ❏ Always turn the transmitter on fi rst • Begin charging the fl ight battery ❏ Plug the fl ight battery into the lead from the fl ight control board •...
  • Page 5: Installing The Transmitter Batteries

    Installing the Transmitter Batteries 1. Remove the battery door screw. 2. Slide the battery door down to open. 3. Install 4 AA alkaline batteries in the transmitter. 4. Re-install the battery door and battery door screw. Replace the transmitter batteries when the transmitter indicates low voltage.
  • Page 6: Binding

    Binding The transmitter included with this aircraft is pre-bound to the Binding Procedure receiver at the factory. If it becomes necessary to re-bind the 1. Power off your transmitter. transmitter to the receiver, indicated by a red receiver status 2. Remove the upper rear cover of the aircraft. Press down on LED, follow the procedure given in the table.
  • Page 7: Understanding The Primary Flight Controls

    Understanding the Primary Flight Controls If you are not familiar with the controls of your quadcopter, take a few minutes to familiarize yourself with them before attempting your fi rst fl ight. Throttle Left Side View Left Side View Descend Climb Throttle up Throttle down...
  • Page 8: Flight Modes

    Flight Modes The quadcopter has 3 fl ight modes accessible by changing Flight Modes the fl ight mode switch position. Switch Stability Tilt Roll Angle Mode: This mode has auto level, mild roll rates and Position Mode Angle Rate very limited tilt angles. Ideal for the pilot who is moving up Angle Mode Farthest Stability...
  • Page 9: 4.3 Inch Video Monitor With Dvr Features

    4.3 inch Video Monitor with DVR Features Band Channel Frequency Battery Level Channel Selection Button 5.8GHz Antenna connector Single push to change channel Menu Buttons: Band Button Press and hold the M button Single push to change band to change to playback mode Press and hold for frequency scan Single push the M button to select options: 5V Micro USB Charge Port...
  • Page 10: Video Monitor Fpv Goggle

    Video Monitor FPV Goggle The FPV Goggle is designed to hold the included video Field of view lever monitor for a more immersive view from the FPV camera. The goggle can also be used with mobile devices that are less than 5.9 x 3.15 inches to watch videos. The goggle is large enough that reading glasses can be used if needed to sharpen the image from the monitor.
  • Page 11: Fpv Operation

    FPV Operation Consult local laws and ordinances before operating FPV When an unoccupied video frequency is located, change the equipment. In some areas, FPV operation may be limited or video band and channel on the quadcopter to match the monitor. prohibited.
  • Page 12: Adding An External Spektrum™ Receiver

    WARNING: Remove the propellers from the motors prior to performing any maintenance or changing any radio components. Failure to do so may cause serious injury if the motors start unexpectedly. ® ™ The Blade Vusion quadcopter is compatible with the ™...
  • Page 13: Installing The Propellers

    Installing the Propellers Refer to the illustration for the proper motor rotation and propeller location. The propellers have “CW” or “CCW” marked on the blades to show proper location and rotation. Match the propeller location to the illustration. Secure the propellers using the propeller nuts. Do not overtighten the nuts as damage to the propellers or motors may result.
  • Page 14: Troubleshooting Guide

    Troubleshooting Guide WARNING: Remove the propellers from the motors prior to performing any troubleshooting or maintenance. Failure to do so may cause serious injury if the motors start unexpectedly. Problem Possible Cause Solution Disconnect the flight battery, center the control trim and Quadcopter not initialized on a level surface Quadcopter control response is re-initialize the quadcopter...
  • Page 15: Parts Explosion

    Parts Explosion Parts Listings Part # Description Part # Description 1 BLH02401 Canopy Vusion V2 Racer 16 BLH02420 Omni Antenna Black R-SMA 2 BLH02402 LiPo 3S 11.1V 35C 1500mAh iC3 17 RISE2001 Top Cover Vusion 250 Race Quad 3 BLH02404 R/F Arm CCW 1806 Motor ESC V2 18 RISE2002 Battery Cover Vusion 250 Race Quad...
  • Page 16: Optional Parts

    Optional Parts Part # Description Part # Description BLHA1021 2205-2350Kv FPV Racing Motor SPMVR2510 Focal V2 FPV Wireless Headset w/di DYNC2030 Prophet Sport Mini 50W Charger SPMVR2520 Focal DVR FPV Headset DYNC2050 Prophet Sport 4 X 100W AC/DC Charger DX6e 6CH Transmitter Only SPM4648 DSMX Quad Race Receiver w/Diversity DX9 Black Transmitter Only MD2...
  • Page 17: Warranty And Service Contact Information

    Warranty and Service Contact Information Country of Purchase Horizon Hobby Contact Information Address Horizon Service Center (Repairs and Repair Requests) servicecenter.horizonhobby.com/RequestForm/ productsupport@horizonhobby.com Horizon Product Support United States 2904 Research Road (Product Technical Assistance) of America 877-504-0233 Champaign, Illinois, 61822 USA websales@horizonhobby.com Sales 800-338-4639...
  • Page 18 ©2018 Horizon Hobby, LLC. Blade, the Blade logo, Vusion, DSMX and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc. All other trademarks, service marks or logos are property of their respective owners.
