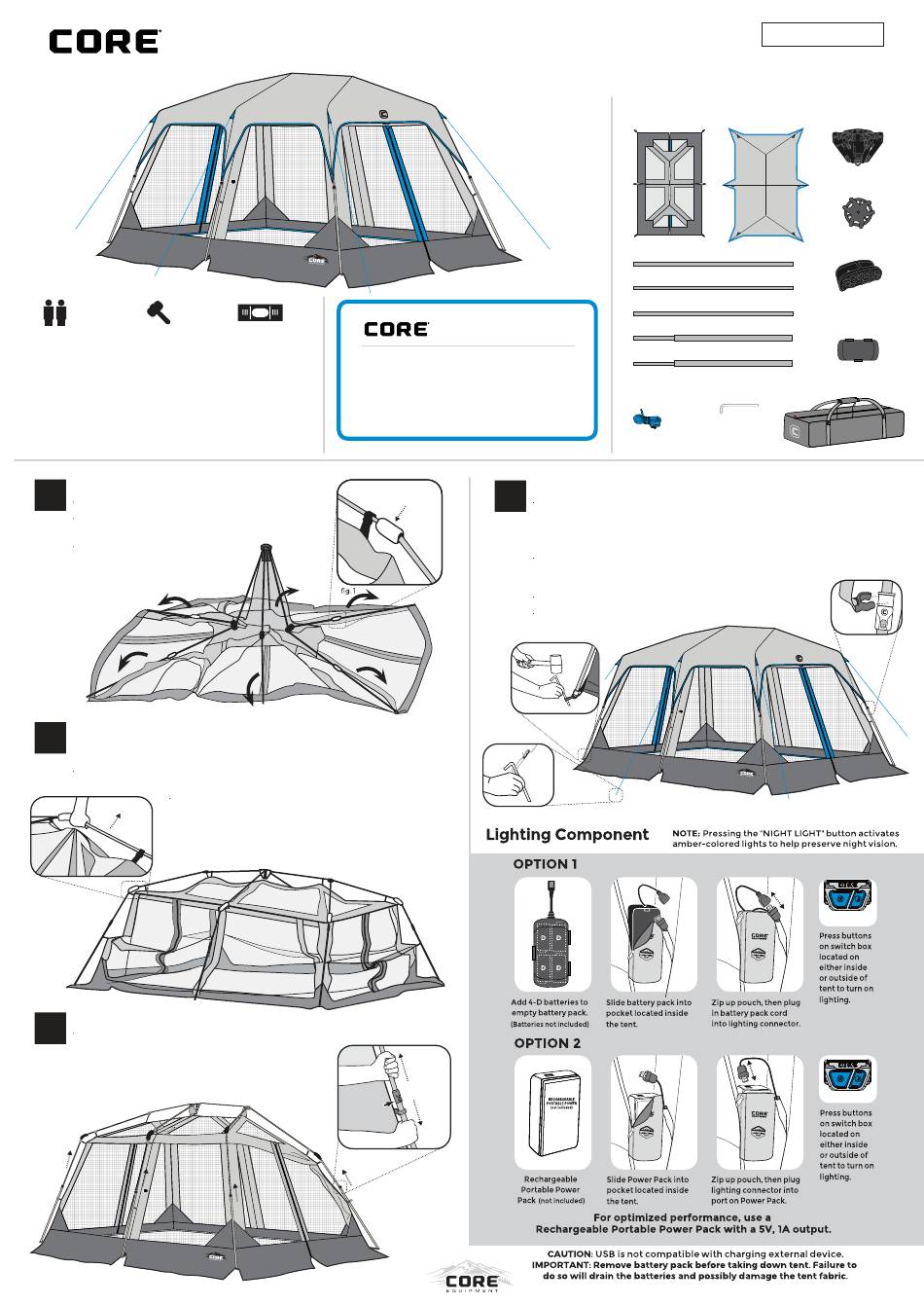

Core 40213 Quick Start Manual

12 × 10 Lighted Instant Screen House
12 ft × 10 ft × 84 in
2 People Rubber Mallet
Setup Tips
• Clear your camp area of debris before setting up your shelter.
• Remove all protective cardboard and foam inserts around the
center hub before initial setup
• Set up shelter at home before getting to the campsite.
• Take a few extra moments to setup each section of your shelter
with care
1
Prepare for Setup
Remove shelter from carry bag and lay upright.
Unfold LEG POLES from the pod shape
and spread out the shelter.
Unfold LEGS again at ARM JOINTS
to lay shelter flat. Center of
shelter will stand up. (fig. 1)
2
Lift Roof & Eave Poles
NOTE: 2 people will be needed to erect and extend the shelter poles.
and extend the shelter poles.
Lift up on ARM JOINTS until EAVE POLES at 3-way SIDE HUBS
are extended. (fig. 2)
Grab CORNER ROOF POLES and pull straight
out to create shelter's cabin shape (leg poles will
angle at joints to partially stand up).
fig. 2
3
Extend Leg Poles
Extend TELESCOPING LEG POLES until LOCKING BUTTONS "click"
into the locked position (fig. 3).
NOTE: You can now easily move your shelter
to its final position before securing with
stakes and guylines.
Level Area
Core
Pre-attached poles that telescope and
click into place ensure a quick setup
NOTE: 2 people will be needed to erect
and extend the shelter poles
ARM
JOINT
CLICK!
LOCKING
BUTTON
fig. 3
Instant Shelter
® Instant Technology:
4
Stakes, Guylines & Rainfly
Drive STAKES at a 45° angle through WEB LOOP at base of shelter
to secure to ground. (fig. 4)
NOTE: Shelter should be taut when staked properly. Keep bottom flaps
facing outward from shelter to help prevent bugs from entering.
Drape rainfly over shelter. On the points of the rainfly, find the plastic
clips attached to straps and snap the clips above the button boxes
on LEG POLES. (fig. 5)
Stake out each GUYLINE at a 45° angle. (fig. 6)
Tighten GUYLINES as needed by adjusting the
slider up the cord.
fig. 4
fig. 6
Model #40213
Contents & Repair Parts Contents & Repair Parts
Rainfly (91827)
Shelter
Mid Eave Pole (91173)
Side Eave Pole (91172)
Roof Pole, Gray (91926)
Corner Telescoping Leg Pole x 4 (91927)
Middle Telescoping Leg Pole, Gray x 2 (91925)
Reflective
Stakes x 14
Carry Bag (91928)
Guyline x 6
(90014)
(91221)
Center Hub (90137)
Side Hub (90138)
Corner Joint (91150)
Battery Compartment
(91225)
fig. 5
